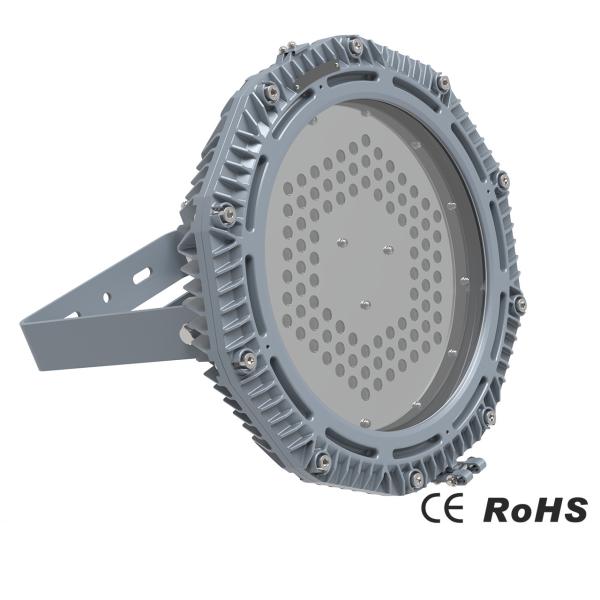

Frog Series Surge Protec 5KV LED Industrial High Bay Light
Lifespan>50000 Hours
Features And Benefits:
1. Energy saving. Reduce the number of luminaires needed.
2. Anti glare, reduces glare in applications where the user may
have direct visual contact with the light source.
3. Shock and vibration-resistant tempered glass , reduces the risk
of premature failure.
4. High efficacy led source,High lumen output and high CRI.
5. High efficiency LED Driver,designed to provide reliable
operation in even harshest environment.
6. High strength aluminum alloy enclousure, can endure 20J impact.
IP66, can be used in marine and wet locations, Robust construction
suitable for saltwater and corrosive applications.
7. Adjusting plate, customer can adjust different angles.
8. 150W and 120W available. Optional luminous intensity
distribution for different applications.
9. Ambient temperature from -40°C to 55°C.
10. Life span> 50,000 hours.
11. Surge protection:5KV.
Specifications:
Certificate:CE,RoHS
Executive Standard:
| IEC 62321-4:2013+AMD1:2017 | IEC 62321-5:2013 | IEC 62321-6:2015 |
| IEC 62321-7-1:2015 | IEC 62321-7-2:2017 | IEC 62321-8:2017 |
| EN 55015:2013/A1:2015 | EN 61547:2009 | EN 61000-3-2:2014 |
| EN 62493:2015 | EN 61000-3-3:2013/A1:2019 | EN 605981:2015+A1:2018 |
| EN 62031:2008+A1:2013+A2:2015 | EN 60598-2-5:2015 | |
Luminaire Efficacy: 147m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC,141-392 VDC
Power:120W/150W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:14.25Kg
Size:426*410*187mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 2XM25*1.5 (NPT 3/4”,M20*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

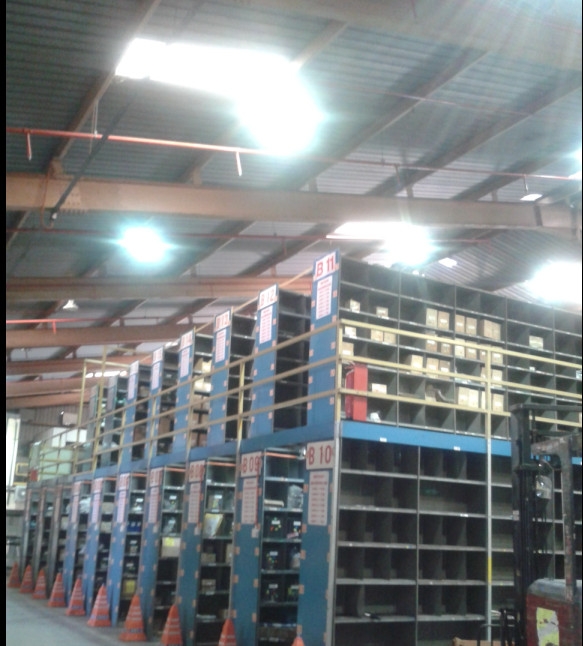

Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
Ordering Information:
P/N
|
Operating Voltage(V)
|
Luminous Flux(lm)
|
Power(W)
|
CRI
|
Color Temp.
|
CCT(K)
|
| KF120*WM-E |
100-277 AC
(141-392 DC)
| 17010 | 120 | 70 | Warm white | 3000±300 |
| KF120*NH-E | 18270 | 120 | 70 | Natural white | 4000±300 |
| KF120*NH-E | 18270 | 120 | 70 | Natural white | 5000±300 |
| KF120*CH-E | 18270 | 120 | 70 | Cool white | 5700±300 |
| KF150*WM-E | 20475 | 150 | 70 | Warm white | 3000±300 |
| KF150*NH-E | 22050 | 150 | 70 | Natural white | 4000±300 |
| KF150*NH-E | 22050 | 150 | 70 | Natural white | 5000±300 |
| KF150*CH-E | 22050 | 150 | 70 | Cool white | 5700±300 |
Remarks:
1. * Stands for beam angle,including H1V1 / H4V4 / H5V5 / H6V6/FW；
2. For Beam angle H1V1,H4V4 and H5V5,the luminous flux will be 15%
less;
3. For Beam angle FW,the luminous flux will be 30% less.

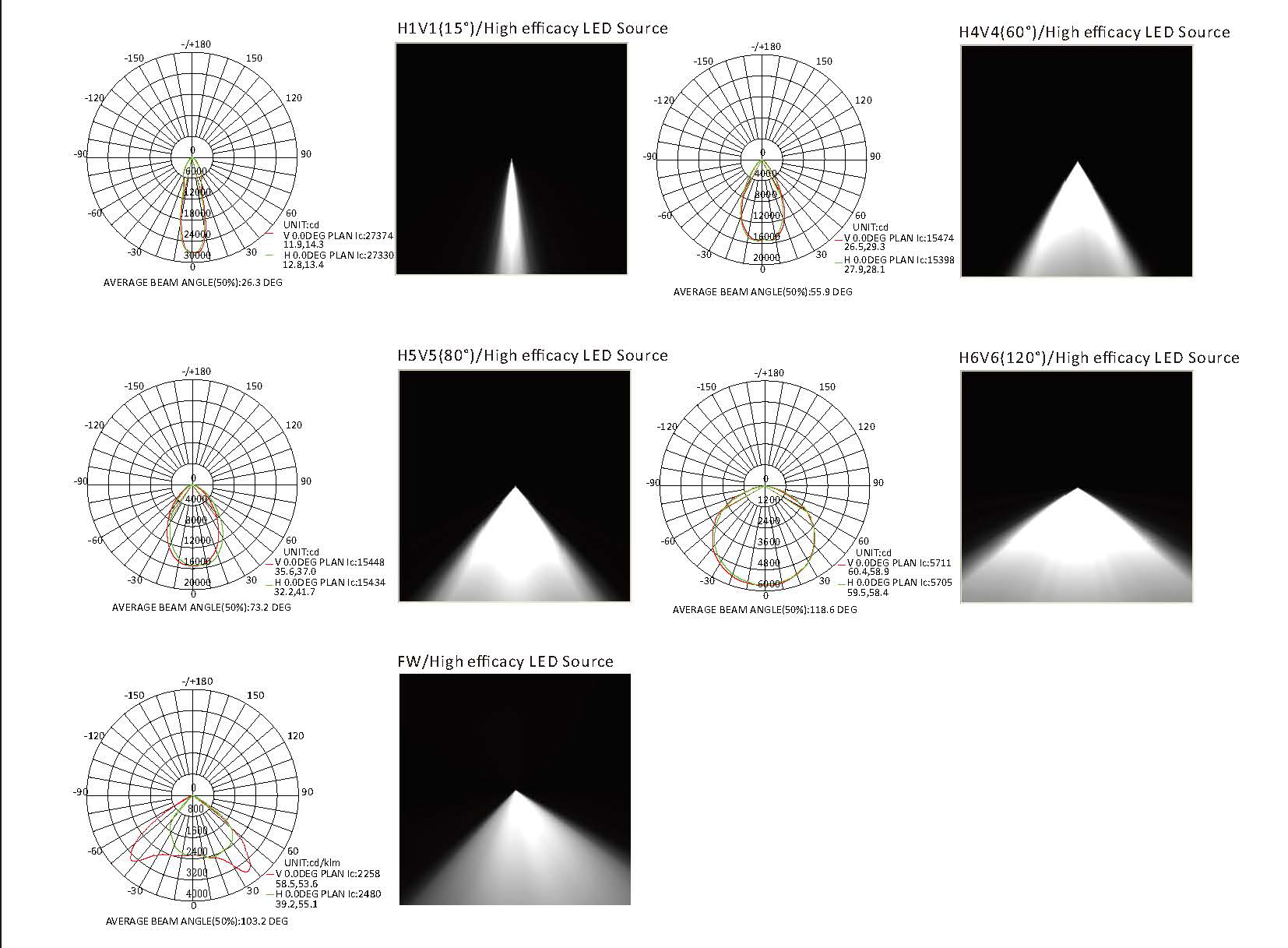

Candela Distribution:
Installation Method:
