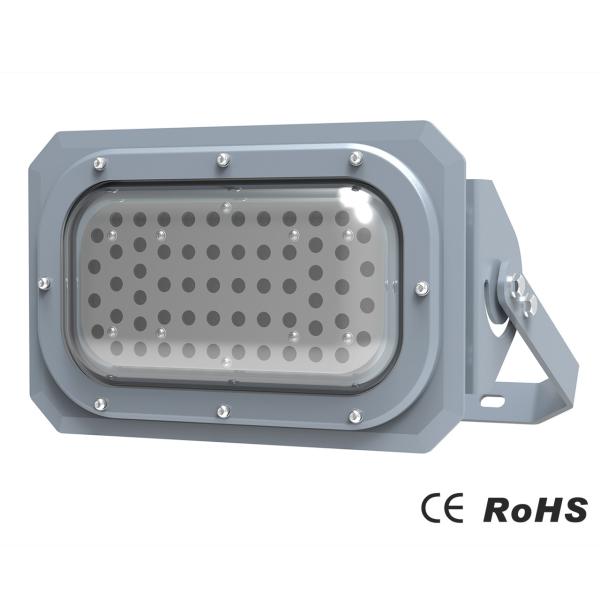

Polarbear Series Luminaire Efficacy 147m/W LED Industrial Bay Light
Lifespan >50,000 hours
Features And Benefits:
1. Energy saving. Reduce the number of luminaires needed, providing
excellent luminaries efficacy and more light where you need it.
2. Anti- glare, reduces glare in applications where the user may
have direct visual contact with the light source.
3. Shock and vibration resistant tempered glass, reduces the risk
of premature failure.
4. High efficacy LED source. High lumen output and high CRI.
5. Driver module assembly High efficacy LED drivers are designed to
provide reliable operation in even the harshest environments.
6. High strength aluminum alloy housing, can endure 20J impact.
IP66, can be used in wet locations, robust construction suitable
corrosive applications.
7. Adjusting plate, customer can adjust different angles.
8. Optional luminous intensity distribution for different
applications.
9. Ambient temperature from -40ºC to 55ºC.
10. Life span> 50,000 hours.
11. Surge protection:5KV.
Specifications:
Certificate:CE,RoHS
Executive Standard:
| EN 60598-1:2008+A11:2009 | EN 60598-2-5:1998 | EPA3052:1996 |
| EN 55015:2006+A1:2007+A2:2009 | EPA3050B:1996 | EN1122B:2001 |
| EN 61000-3-2:2006+A1:2009+A2:2009 | EN 61547:2009 | EN 61000-3-3:2008 |
| EPA3060A:1996 | EPA7196A:1992 | EPA3540C:1996 |
| EPA8270D:2007 | IEC 62321:2008 | |
Luminaire Efficacy: 147m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC,141-392 VDC
Power:120W,160W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:11Kg
Size:260*400*161mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 2XM25*1.5 (NPT 3/4”,M20*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) |
KPLB120*WM-E |
100-277 AC (141-392 DC) | 16380 | 120 | 70 | Warm white | 3000±300 |
KPLB120*NH-E | 17640 | 120 | 70 | Natural white | 4000±300 |
KPLB120*NH-E | 17640 | 120 | 70 | Natural white | 5000±300 |
KPLB120*CH-E | 17640 | 120 | 70 | Cool white | 5700±300 |
KPLB160*WM-E | 21840 | 160 | 70 | Warm white | 3000±300 |
KPLB160*NH-E | 23520 | 160 | 70 | Natural white | 4000±300 |
KPLB160*NH-E | 23520 | 160 | 70 | Natural white | 5000±300 |
KPLB160*CH-E | 23520 | 160 | 70 | Cool white | 5700±300 |
Remarks:
1. * Stands for beam angle,including H1V1 / H4V4 / H5V5 / H6V6 /
FW;
2. For Beam angle H1V1,H4V4 and H5V5,the luminous flux will be 15%
less;
3. For Beam angle FW,the luminous flux will be 30% less.
Candela Distribution:
Installation Method:
