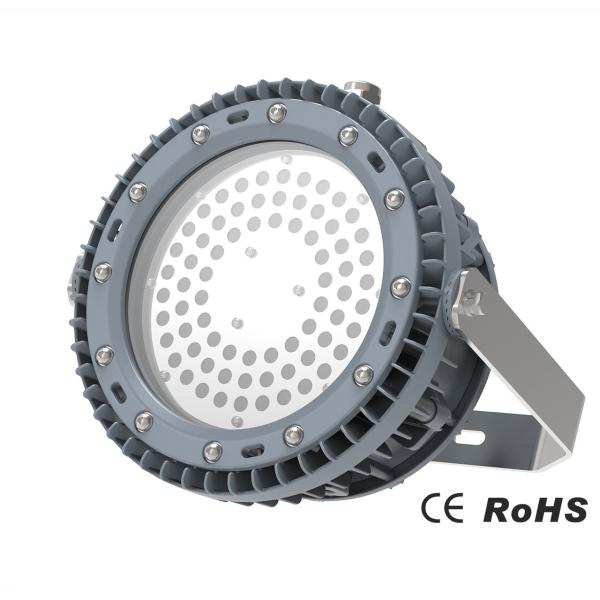

Energy saving weatherproof Industrial LED flood light Sealio series
LED 100W 120W 150W
Industrial Sealion series LED Industrial flood light 100W 120W 150W
Highlight: LED Flood light
Features And Benefits:
1. High power and efficient LED Industrial light, at least 50%
energy saving than traditional HPS lighting sources.
2. Durable die-cast aluminum housing plus strong tempered
glass,IK08.
3. Designed with separated Led source compartment and Led driver
compartment, much better heat dissipation.
4. With junction box for loop-in and loop-out wiring connection.
5. Long-life LED technology, more than 50,000 hours.
6. Reliable LED driver from Meanwell.
7. Ambient temperature from -40℃ to 55℃.
8. 5 Years performance warranty.
Product Differentiation:
| Executive Standard | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Certificate | CE, RoHS |
| Ambient temp | -40℃ ≤ Ta ≤ +55℃ |
| Ingress Protection | IP66 |
| Cable entry | M25*1.5(M20*1.5,3/4 NPT for optional) |

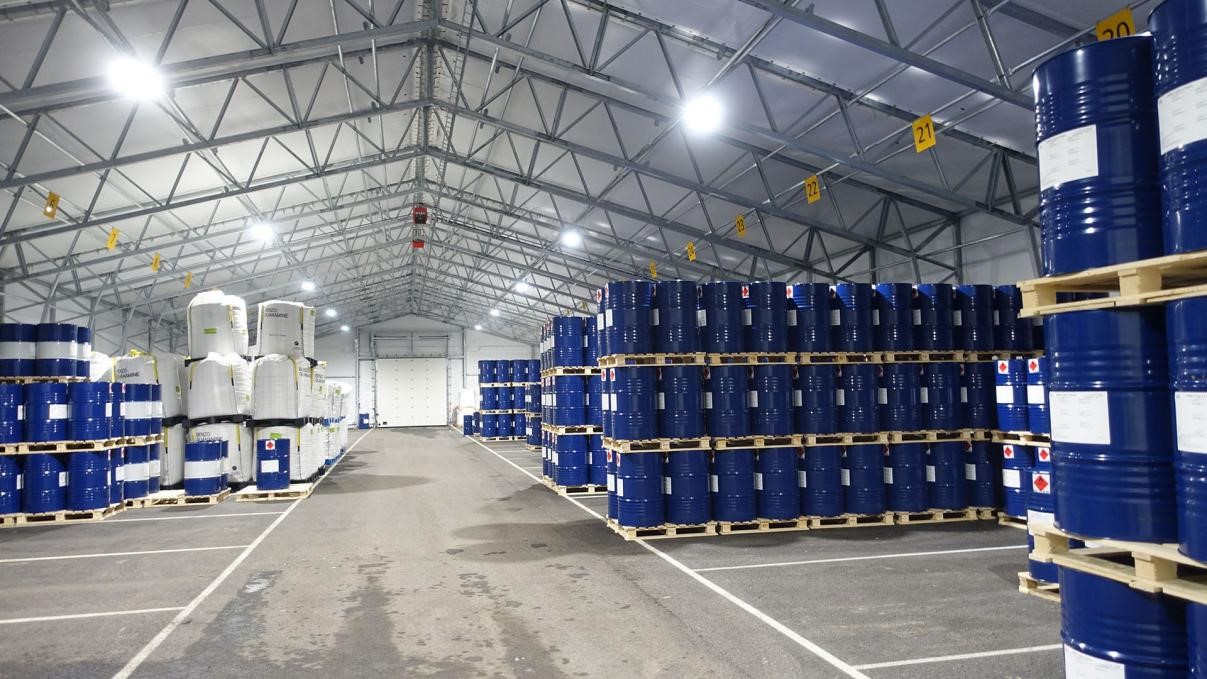

Applications:
Sealion series Industrial LED Flood light are Suitable for most of
non-hazardous areas:
Tunnels
Pow plants
Workshops
Factories
Tunnels
Rail
Warehouse
Packing lots
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power | CRI | Color Temp. | CCT(K) |
| KSL100*WM-J-E | 100~277AC (141~392 DC) | 13000 | 100 | 70 | Warm white | 3000±300 |
| KSL100*NH-J-E | 14700 | 100 | 70 | Natural white | 4000±300 |
| KSL100*NH-J-E | 14700 | 100 | 70 | Natural white | 5000±300 |
| KSL100*CH-J-E | 14700 | 100 | 70 | Cool white | 5700±300 |
| KSL120*WM-J-E | 15600 | 120 | 70 | Warm white | 3000±300 |
| KSL120*NH-J-E | 17640 | 120 | 70 | Natural white | 4000±300 |
| KSL120*NH-J-E | 17640 | 120 | 70 | Natural white | 5000±300 |
| KSL120*CH-J-E | 17640 | 120 | 70 | Cool white | 5700±300 |
| KSL150*WM-J-E | 19500 | 150 | 70 | Warm white | 3000±300 |
| KSL150*NH-J-E | 22050 | 150 | 70 | Natural white | 4000±300 |
| KSL150*NH-J-E | 22050 | 150 | 70 | Natural white | 5000±300 |
| KSL150*CH-J-E | 22050 | 150 | 70 | Cool white | 5700±300 |
Remarks:
1. *Stands for beam angle , including H4V4 / H5V5 / H6V6;
2. For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
