Polaris Series Over voltage protection/short circuit protection LED Emergency Exit Light IP 54

Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours
2.3-year performance warranty
3.Robust aluminium housing and strong tempered glass
4.Vibration and shock resistant
5.Low maintenance

Specifications:

Certificate:CE,RoHS
Executive Standard:

Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/141-392 VDC

Power:6W(Normal);0.5W(Emergency)

Battery Rated Capacity:2.6Ah

Rated Capacity:Ni-MH

Rated Lifespan:300 Cycles

Battery Back Up:180 Min

Battery Charge Time(after full discharge):12 h

Frequency:50/60Hz

Power Factor: ＞0.98
Insulation Class: Ⅰ
LED Driver: Over voltage protection/short circuit protection
Weight:3.1Kg
Size:337*310*76mm
Ambient Temperature: -20℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 1X M25*1.5(M20*1.5, NPT 3/4” are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP54
Enclosure Material: Copper-free Aluminium
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

Applications:

1,Cement plants
2,Warehouse
3,Factory
4,Power Genera
5,Power Transmission
6,Shipping industry

Ordering Information:

P/N	Rated voltage(V)	Light Color	Exit Sign Designation
KPSEW-GE-ON-*-E	100~277 (141~392)	White
KPSEW-GHL-ON-*-E
KPSEW-GHR-ON-*-E
KPSEW-GHLR-ON-*-E
KPSEG-E-ON-*-E		Green
KPSEG-HL-ON-*-E
KPSEG-HR-ON-*-E
KPSEG-HLR-ON-*-E

Remarks:*
Stand for junction box type, including J2AL,J2AR,J2AU,J2B,J2C,J2EL,J2ER.

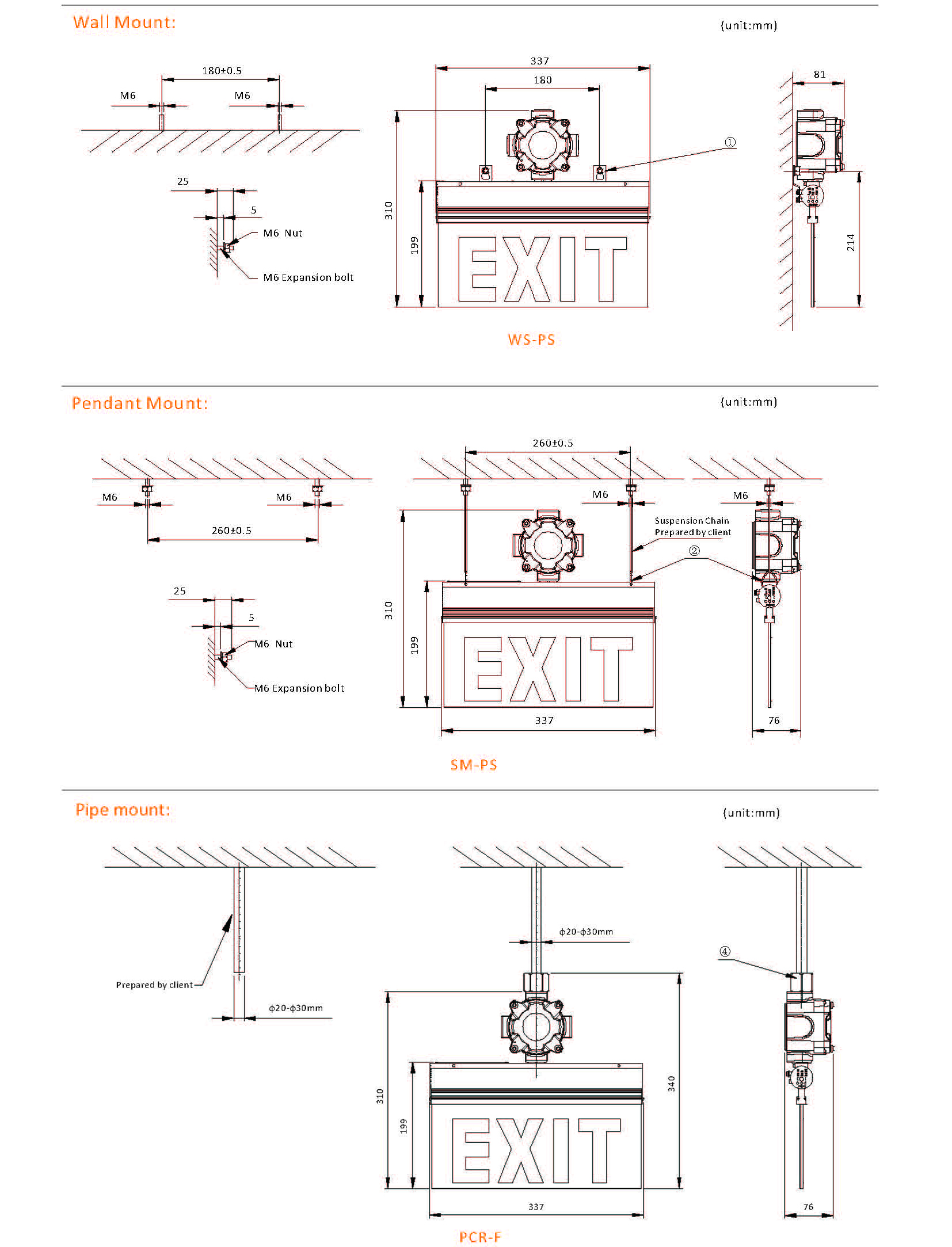

Installation Method:

Focus on security and energy-saving, Carry brightness and Sustainable future.
