Polaris Series Copper Free Aluminium LED Emergency Exit Light Epoxy powder coating

Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours.
2. 3-year performance warranty.
3. Robust aluminium housing and strong tempered glass.
4. Vibration and shock resistant.
5. Low maintenance.

Specifications:

Certificate:CE,RoHS
Executive Standard:

Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/141-392 VDC

Power:6W(Normal);0.5W(Emergency)

Battery Rated Capacity:2.6Ah

Rated Capacity:Ni-MH

Rated Lifespan:300 Cycles

Battery Back Up:180 Min

Battery Charge Time(after full discharge):12 h

Frequency:50/60Hz

Power Factor: ＞0.98
Insulation Class: Ⅰ
LED Driver: Over voltage protection/short circuit protection
Weight:2Kg
Size:379*199*44mm
Ambient Temperature: -20℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 1X M25*1.5(M20*1.5, NPT 3/4” are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP54
Enclosure Material: Copper-free Aluminium
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry

Ordering Information :

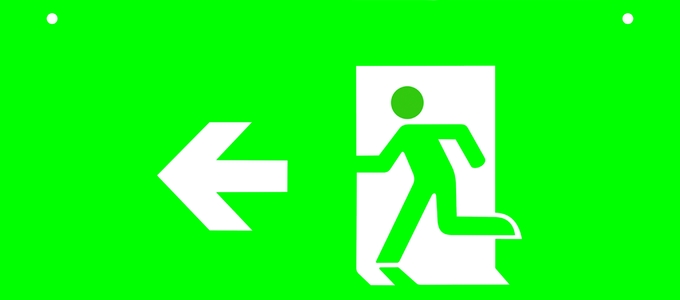

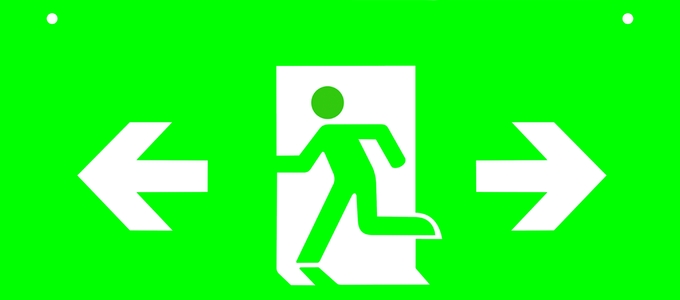

P/N	Rated voltage(V)	Light Color	Exit Sign Designation
KPSEW-GE-ON-E	100~277 (141~392)	White
KPSEW-GHL-ON-E
KPSEW-GHR-ON-E
KPSEW-GHLR-ON-E
KPSEG-E-ON-E		Green
KPSEG-HL-ON-E
KPSEG-HR-ON-E
KPSEG-HLR-ON-E
