KBH31 32 Series Explosion Proof Electrical Equipment Explosion Proof Terminal Box

Application and Features:

Technical Parameter​​:

Conformity to standards		IEC 60079-0, IEC 60079-7, IEC 60079-11, IEC 60079-31 EN 60079-0, EN 60079-7, EN 60079-11, EN 60079-31 GB3836.1,GB3836.2,GB3836.4,GB12476.1,GB12476.5
Enclosure material		Aluminum alloy enclosure, powder coated, industrial gray with dark lines texture(RAL7035)
Exposed fastener		Stainless steel
Frequency		50Hz / 60Hz
Terminal block	Ex marking	Type	Terminal	Voltage	Current	Picture	Qty	Weight
	Ex d, Ex tb	KBH31	MBK3/E-Z	400V AC 220V DC	16A		6	0.05kg
			MBK5/E-Z	500V AC 220V DC	20A		4	0.04kg
		KBH32	Pillar terminal 4-M5		20A			0.08kg
	Ex i, Ex tb	KBH31	MBK3/E-Z	Max. 36VAC/DC	5A		6	0.05kg
			MBK5/E-Z				4	0.04kg
		KBH32	Pillar terminal 4-M5					0.08kg
Cable cross section		0.2~4.0mm2
Degree of protection		Ip66
Ambient temperature		-60°C~+55°C
Cable gland		Standard M20×1.5~M32×1.5 Optional NPT1/2~NPT1;Optional G1/2~G1

Selection Table:

Type	Code	Outline	Weight (kg)	Type	Code	Outline	Weight (kg)
KBH□-ANPT1/2	A		0.66	KBH□-DNPT1/2	D		0.66
KBH□-ANPT3/4			0.65	KBH□-DNPT3/4			0.71
KBH□-ANPT 1			0.62	KBH□-DNPT 1			0.60
KBH□-AM20X1.5			0.65	KBH□-DM20X1.5			0.70
KBH□-AM25X1.5			0.67	KBH□-DM25X1.5			0.67
KBH□-AM32X1.5			0.62	KBH□-DM32X1.5			0.60
KBH□-BNPT1/2	B		0.68	KBH□-ENPT1/2	E		0.68
KBH□-BNPT3/4			0.66	KBH□-ENPT3/4			0.66
KBH□-BNPT 1			0.61	KBH□-ENPT 1			0.61
KBH□-BM20X1.5			0.67	KBH□-EM20X1.5			0.67
KBH□-BM25X1.5			0.65	KBH□-EM25X1.5			0.65
KBH□-BM32X1.5			0.61	KBH□-EM32X1.5			0.61
KBH□-CNPT1/2	C		0.69	KBH□-K/□	K		0.80
KBH□-CNPT3/4			0.66
KBH□-CNPT 1			0.61
KBH□-CM20X1.5			0.69
KBH□-CM25X1.5			0.66
KBH□-CM32X1.5			0.61

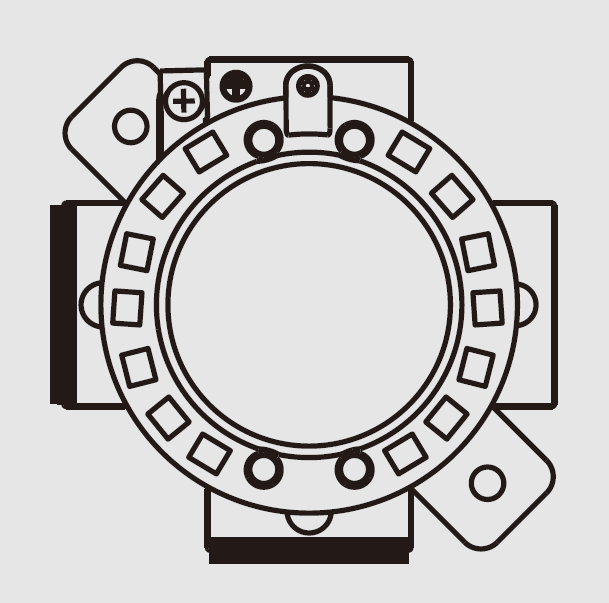

Outline and Installation Dimension(Dimensions in mm):
