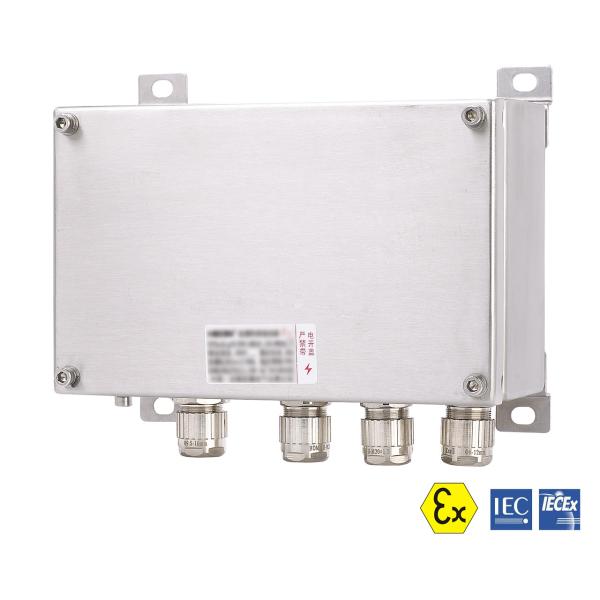

690VAC 250VDC Flameproof Electrical Fittings Explosion Proof Terminal Box

Ask Lasest Price
Brand Name :	KHJ
Model Number :	KBH02-S
Certification :	ATEX,IECEx,CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500pcs/day
Delivery Time :	3-8work days

Add to Cart

Product Details
Company Profile

690VAC 250VDC Flameproof Electrical Fittings Explosion Proof Terminal Box

KBH02-S Series Explosion Proof Electrical Equipment Explosion Proof Terminal Box

Application and Features:

● Explosion protection
- IECEx (IEC)-IECEx EUT 18.0004/IECEx EUT 18.0005
- ATEX (CENELEC, EN)-EPT 17 ATEX 2639/EPT 17 ATEX 2606
- China Ex(GB)
● Application in hazardous area
Zone 0, Zone 1 and Zone 2, Zone 21 and Zone 22
● Stainless steel enclosure, three types of explosion protection(Ex eb, Ex ia, Ex tb IIIC),which can meet the requirements of various places.
● There are 19 types of enclosure specifications, the current, the number of terminals, the size and direction of the entry can be customized upon request.
● Stainless steel exposed fastener, anti dropping structure, easy installation and maintenance.

Note: Please confirm the quantity, specification, and direction (position) of cable entry holes, if that is needed; No cable gland as default when delivery,which is supplied by users.

Technical Parameter:

Ex marking	Gas	II 2 G Ex eb IIC T6/T5/T4 Gb			Ex eb IIC T6/T5/T4 Gb			Ex e IIC T6/T5/T4 Gb
		II 1 G Ex ia IIC T6 Ga			Ex ia IIC T6 Ga			Ex ia IIC T6 Ga
		II 2 G Ex ia IIC T6 Gb			Ex ia IIC T6 Gb			Ex ia IIC T6 Gb
	Dust	II 2 D Ex tb IIIC T80℃ Db			Ex tb IIIC T80℃ Db			Ex tD A21 IP66/ 67 T80℃ Db
Conformity to standards		IEC 60079-0, IEC 60079-7, IEC 60079-11, IEC 60079-31 EN 60079-0, EN 60079-7, EN 60079-11, EN 60079-31 GB3836.1,GB3836.3,GB3836.4,GB12476.1,GB12476.5


Enclosure material		Stainless steel
Brand of terminal		International brand
Exposed fastener		Stainless steel
Rated voltage	Ex e,Ex tb	Max. 690V AC, 250V DC
	Ex i, Ex tb	Max. AC/DC36V
Rated current		1.5mm2	2.5mm2	4mm2	6mm2	10mm2	16mm2	35mm2	50mm2
	Ex e,Ex tb	/	10A	16A	25A	40A	50A	100A	142A
	Ex i, Ex tb	5A	/	/	/	/	/	/	/
Degree of protection		IP66
Ambient temperature	Ex e,Ex tb	-40℃~+40/55℃
	Ex i, Ex tb	-40℃~+40/45/55/60℃

Selection Table(Dimensions in mm):

The maximum terminal cross-section is 35mm2 , and the maximum quantity of terminals that can be installed are shown in the table below.

Outline and Installation Dimension(Dimensions in mm):
