ForestFrog Series Luminaire Efficacy 136.5lm/W LED Industrial Bay
Light Lifespan >50,000 hours
Features And Benefits:
1. Energy saving, Reduce the number of luminaires you need.
2. Anti-glare,reduces glare in applications where the user may have
direct visual contact with the light source.
3. Shock and vibration-resistant tempered glass , reduces the risk
of premature failure.
4. High efficacy led source,high lumen output and high CRI.
5. High efficiency LED Driver,designed to provide reliable
operation in even harshest environment.
6. High-strength aluminum alloy enclosure, can endure 20J
impact.IP66, can be used in marine and wet locations.
7. Robust construction suitable for saltwater and corrosive
applications.
8. Ambient temperature from -40°C to 55°C.
9. Life span> 50,000 hours.
10. Surge protection:5KV.
Specifications:
Certificate:CE,RoHS
Executive Standard:
| EN 60598-1:2015 | EN 60598-2-5:2015 | IEC 62321-5:2013 |
| IEC 62321-4:2013+AMD1:2017 | EN 61547:2009 | EN 61000-3-2:2014 |
| EN 55015:2013+A1:2015 | EN 61000-3-3:2013 | IEC 62321-6:2015 |
| IEC 62321-7-1:2015 | IEC 62321-7-2:2017 | IEC 62321-8:2017 |
Luminaire Efficacy: 136.5m/W
Lifespan:>50,000 hours
Operating Voltage: 24-48 VAC/100-277 VAC,10-30 VDC/24-48 VDC/141-392 VDC
Power:30W,45W,60W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:3.3Kg
Size:φ220*191mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 2XM25*1.5 (NPT 3/4”,M20*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) |
| KFF30*WM-J-E |
100~277 AC (141~392 DC) | 3780 | 30 | 70 | Warm white | 3000±300 |
| KFF30*NH-J-E | 4095 | 30 | 70 | Natural white | 4000±300 |
| KFF30*NH-J-E | 4095 | 30 | 70 | Natural white | 5000±300 |
| KFF30*CH-J-E | 4095 | 30 | 70 | Cool white | 5700±300 |
| KFF45*WM-J-E | 5670 | 45 | 70 | Warm white | 3000±300 |
| KFF45*NH-J-E | 6142 | 45 | 70 | Natural white | 4000±300 |
| KFF45*NH-J-E | 6142 | 45 | 70 | Natural white | 5000±300 |
| KFF45*CH-J-E | 6142 | 45 | 70 | Cool white | 5700±300 |
| KFF60*WM-J-E | 7560 | 60 | 70 | Warm white | 3000±300 |
| KFF60*NH-J-E | 8190 | 60 | 70 | Natural white | 4000±300 |
| KFF60*NH-J-E | 8190 | 60 | 70 | Natural white | 5000±300 |
| KFF60*CH-J-E | 8190 | 60 | 70 | Cool white | 5700±300 |
Remarks:
1. *Stands for candela distribution, including H1V1 / H5V5 /
H6V6/F/FW;
2. For beam angle H1V1/H5V5,the luminous flux will be 8% less;
3. For beam angle FW/F,the luminous flux will be 25% less.
Candela Distribution:

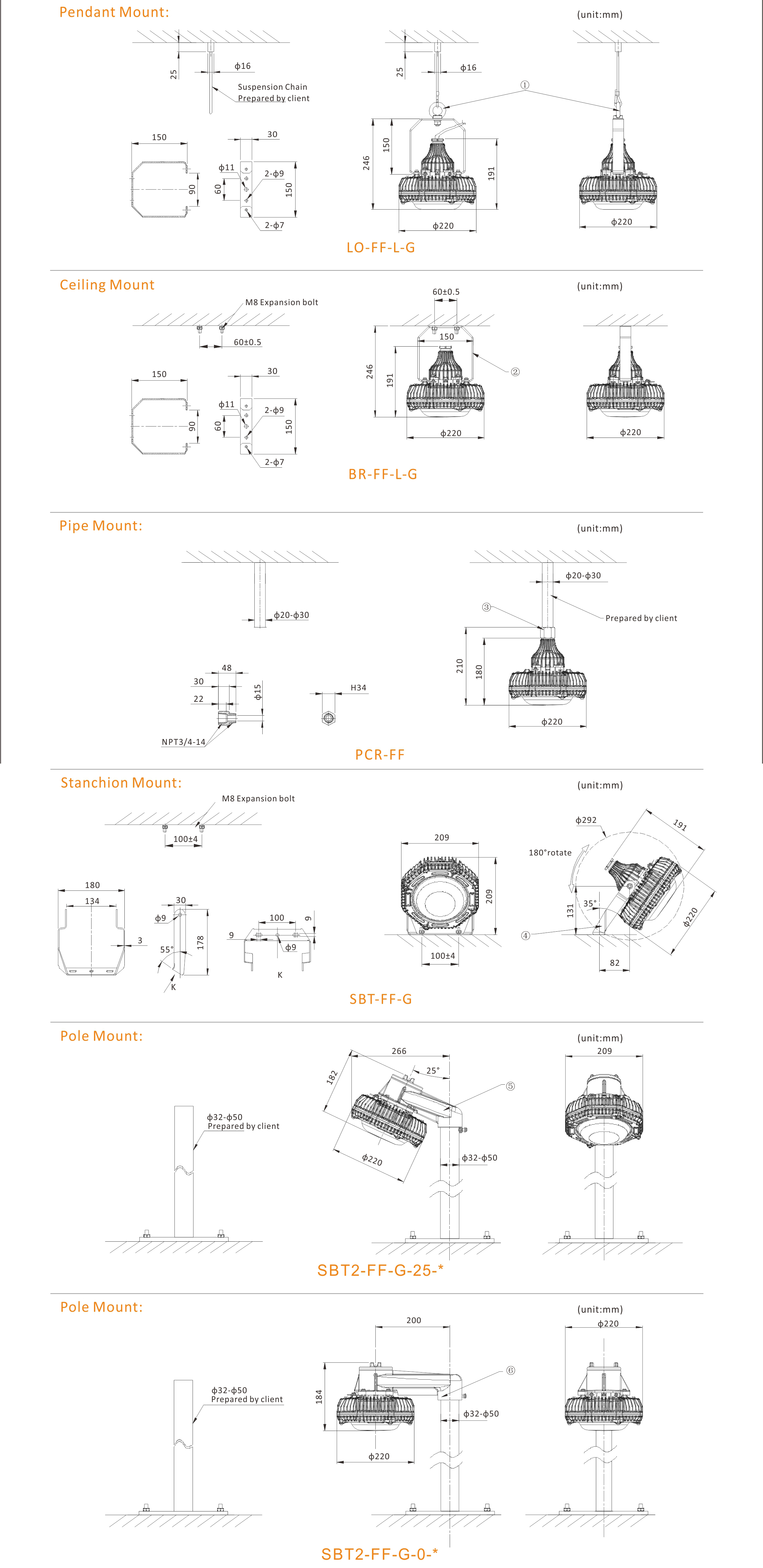

Installation Method:
