KHJ Flameproof Electrical Fittings Explosion Proof Terminal Box KDP011 Series

Ask Lasest Price
Brand Name :	KHJ
Model Number :	KDP011
Certification :	ATEX,IECEx,CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	500pcs/day
Delivery Time :	3-8work days

Add to Cart

Product Details
Company Profile

KHJ Flameproof Electrical Fittings Explosion Proof Terminal Box KDP011 Series

KDP011 Series Explosion Proof Electrical Equipment Explosion Proof Terminal Box

Application and Features:

● Explosion protection
- IECEx (IEC)-IECEx TPS 18.0025X
- ATEX (CENELEC, EN)-TPS 19 ATEX 003086 0005 X Rev. 00
- China Ex(GB)
● Application in hazardous area
Zone 1 and Zone 2
Zone 21 and Zone 22
● Three types of explosion protection (Ex db IIB, Ex db IIB+H2, Ex tb IIIC).
● Aluminum alloy enclosure, power coated.
● Equipped with hinges and door handle, easy to installation and maintenance,also protect the flameproof surface from damage when the cover is opening orclosing.
● Can be customized upon request and able to meet the usage restrictions of thecertificate.
● Direction, size and quantity of cable entry can be customized and meet the requirements of dissipated power and mechanical strength of the enclosure.

Technical Parameter:

Ex marking	Gas	Il2 G Ex db IIB T6/T5/T4 Gb				Ex db IIB T6/T5/T4 Gb			Ex d IIB T6/T5/T4 Gb
		II2 G Ex db IIB+H2 T6/T5/T4 Gb				Ex db IIB+H2 T6/T5/T4 Gb			Ex d IIB+H2 T6/T5/T4 Gb
	Dust	II2 D Ex tb IIIC T80/T95/T130℃Db				Ex tb IIIC T80/ T95/T130℃Db			Ex tD A21 IP66 T80/T95/T130℃
Conformity to standards		IEC 60079-0, IEC 60079-1, IEC 60079-31 EN 60079-0, EN 60079-1, EN 60079-31 GB3836.1,GB3836.2,GB12476.1,GB12476.5
Enclosure material	Enclosure	Aluminum alloy enclosure, powder coated, industrial gray with dark lines texture(RAL7035)
Exposed fastener		Stainless steel
Components	Brand of terminal	International brand
Rated voltage		Max. 1000V AC, 1500V DC
Rated current		Max. 1200A
Frequency		50Hz/60Hz
Maximum dissipation power	Enclosure size	Type	Ta:+60℃		Ta:+40℃						Weight of empty enclosure
			T6/T80℃		T5/T95℃			T4/ T130℃
			Power	Rated current	Power		Rated current	Power		Rated current
	282X210X170	03	45W	≤63A	110W		--	110W		--	9.0kg
	350X210X170	07	45W	63A～100A	80W		--	139W		--	11.5kg
	350X300X235	08	45W	63A～100A	80W		--	139W		--	16.6kg
	433X350X280	11	100W	100A～250A	288W		--	288W		--	26kg
	563X433X280	15	130W	250A～400A	365W		400A～800A	365W		800A～1200A	48kg
	720X563X280	19	200W	250A～400A	448W		400A～800A	448W		800A～1200A	85kg
	720X563X350	21	210W	250A～400A	690W		400A～800A	690W		800A～1200A	95kg
Degree of protection		03,07,08,11,15--IP66/IP67 19,21--IP66
Ambient temperature		-20℃~+40/60℃, -40℃~+40/60℃
Cable entries		Standard M□*1.5(Upon request),NPT thread (Optional)
Inlet direction		Upon request
Installation Method		Hanging type (Standard)
		Floor type (Optional)

Selection Table(Dimensions in mm):

Enclosure specifications	Guideway×Terminal (specification and quantity)
	2.5²	4²	6²	10²	16²	35²	70²	120²	185²	240²	300²
	UK3N	UK5N	UK6N	UK10N	UK16N	UK35N	/	/	/	/	/
	SAK2.5EN	SAK4EN	SAK6EN	SAK10EN	SAK16EN	SAK35EN	/	/	/	/	/
03	1X23	1X21	1X18	1X14	1X12	/	/	/	/	/	/
07	1X31	1X29	1X24	1X19	1X16	/	/	/	/	/	/
08	1X32	1X30	1X25	1X20	1X18	/	/	/	/	/	/
11	1X45	1X40	1X34	1X28	1X24	1X16	/	/	/	/	/
11	2X45	2X40	2X34	2X28	/	/	/	/	/	/	/
15	1X60	1X54	1X48	1X36	1X30	1X20	/	/	/	/	/
15	2X60	2X54	2X48	2X36	2X30	/	/	/	/	/	/
19	1X90	1X80	1X70	1X60	1X40	1X25	1X25	1X14	1X10	1X8	1×X5
19	2X90	2X80	2X70	2X60	2X40	/	/	/	/	/	/
21	1X90	1X80	1X70	1X60	1X40	1X25	1X25	1X14	1X10	1X8	1X5
21	2X90	2X80	2X70	2X60	2X40	/	/	/	/	/	/

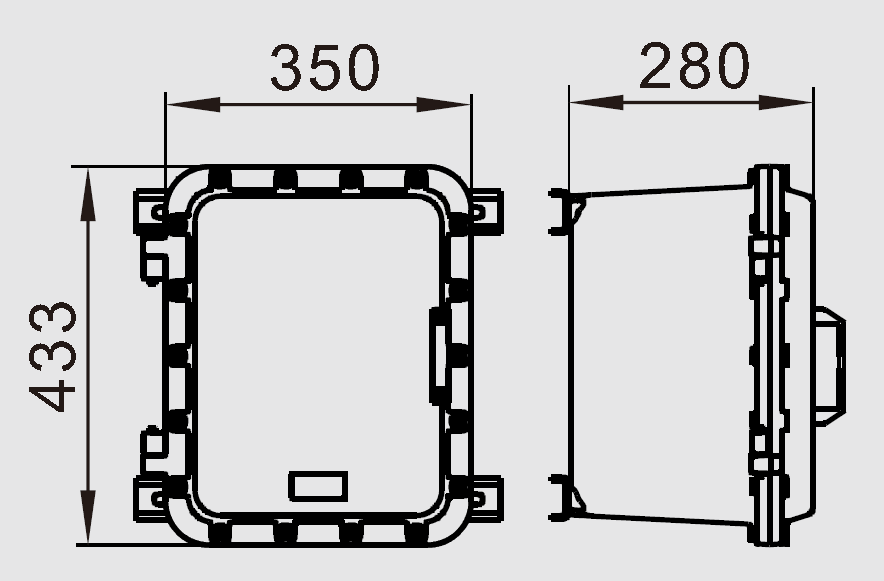

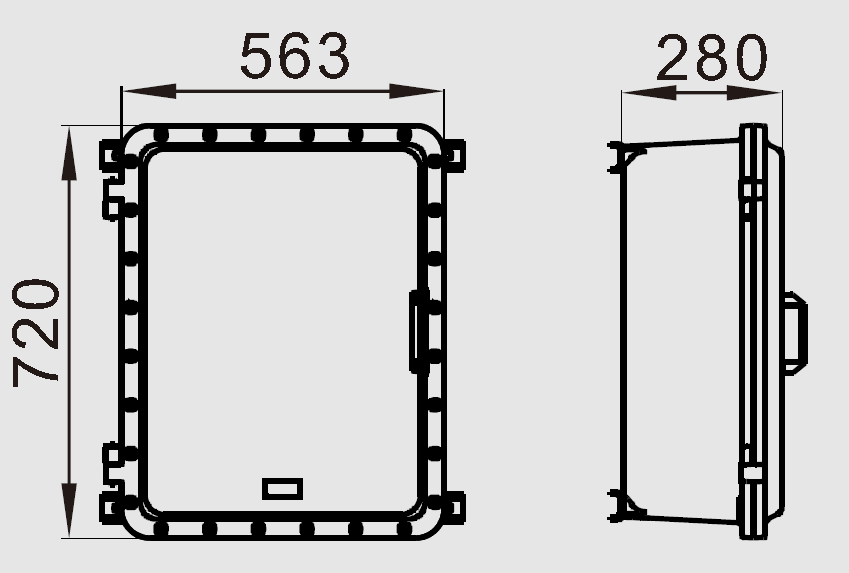

Outline and Installation Dimension(Dimensions in mm):
