KDP07 Series Explosion Proof Electrical Equipment Explosion Proof
Control Circuit
Application and Features:
● Explosion protection
- IECEx (IEC)-IECEx TPS 18.0025X
- ATEX (CENELEC,EN)-TPS 19 ATEX 003086 0005 X Rev. 00
- China Ex(GB)
● Application in hazardous area
Zone 1 and Zone 2,
Zone 21 and Zone 22
● Three types of explosion protection: Ex db IIB, Ex db IIB+H2, Ex
tb IIC
● The enclosure can be equipped with transformers, buttons,
indicator lights, switches,potentiometers, voltmeters, ammeters,
tachometers, etc.
● The emergency stop button can be equipped with an
anti-misoperation mechanism and a padlock by requirements.
● The enclosure with hinges and handle, convenient for installation
and maintenance.Protect the flame-proof surface when operating.
● The enclosures can be combined and installed to meet the various
requirements of power distribution systems.
● Can be customized according to user requirements, meet the
certificate use restrictions.
● The number of elements and the maximum number of holes size needs
to meet the requirements of power dissipation and mechanical
strength of the housing.
● The circuit breaker using metal handle with frozen-resistant and
can be equipped with a padlock.
● Please specify the special requirements when ordering.
Note:
1. Optional components:
K0105 explosion-proof switch button(1NO&1NC as default)
K0106 explosion-proof indicator,
K0109 explosion-proof ammeter,
2. Example: KDP07-A2B1K1
Components: 2 buttons, 1 ammeter, 1 control switch
Details: 1 start button (HL0105-A1I01, 1NO+1NC);
1 stop button (HL0105-A1I21,1NO+1NC);
1 ammeter (50/5);
1 control switch (stop-run-start);
3. The rain shade is customizable by requirements.
Technical Parameter:
| Ex marking | Gas | Il2 G Ex db IIB T6 Gb | Ex db IIB T6 Gb | Ex d IIB T6 Gb |
| II2 G Ex db[ ia/ib] IIB T6 Gb | Ex db[ ia/ib] IIB T6 Gb | Ex d[ ia/ib] IIB T6 Gb |
| II2 G Ex db IIB+H2 T6 Gb | Ex db IIB+H2 T6 Gb | Ex d IIB+H2 T6 Gb |
| II2 G Ex db[ia/ib] IIB+H2 T6 Gb | Ex db[ia/ib] IIB+H2 T6 Gb | Ex d[ia/ib] IIB+H2 T6 Gb |
| Dust | II2 D Ex tb IIIC T80℃ Db | Ex tb IIIC T80℃ Db | Ex tD A21 IP66 IIIC T80℃ |
| Conformity to standards | IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 60079-31 EN 60079-0, EN 60079-1, EN 60079-11, EN 60079-31
GB3836.1,GB3836.2,GB12476.1,GB12476.5 |
| Enclosure materials | Enclosure | Aluminum alloy enclosure, powder coated, Industrial grey with dark
lines texture (RAL7035) |
| Transparent part | Tempered glass, resistant to 4J impact |
| Rain shade | Bended steel plate surface powder coated, industrial grey with dark
lines texture (RAL7035) or stainless steel 304/316, please note
when needed |
| Exposed fasteners | Stainless steel |
| Components | K0105 explosion-proof switch button |
| K0106 explosion-proof indicator |
| K0107 explosion-proof indicator |
| Control switch |
| Specifications of potentiometer according to requirements |
| The voltmeter, ammeter and tachometer are 48/72 type,
specifications according to requirements |
| Rated voltage | Maximum 415V AC |
| Rated current | Maximum 200A |
| Frequency | 50Hz/60Hz |
| Maximum dissipation power |
Enclosure size | Temperature Type class | Ta:+40℃ | Ta:+60℃ | The weight of Empty enclosure |
| T6/T80℃ | T6/T80℃ |
| 105X105X90 | 01.1 | ≤10A | ≤16A | 1.1kg |
| 105X160X90 | 01.2 | ≤10A | ≤16A | 1.5kg |
| 116X202X90 | 01.3 | ≤10A | ≤16A | 2.6kg |
| 282X210X170 | 03 | 45W | 45W | 9.0kg |
| 350X210X170 | 07 | 45W | 45W | 11.5kg |
| 350X300X235 | 08 | 45W | 45W | 16.6kg |
| 433X350X280 | 11 | 100W | 100W | 26kg |
| 563X433X280 | 15 | 132W | 132W | 48kg |
| 720X563X280 | 19 | 201W | 201W | 85kg |
| 720X563X350 | 21 | 210W | 210W | 95kg |
| Degree of protection | IP66 |
| Ambient temperature | -20℃~+60℃, -40℃~+60℃ |
| Cable entry | M□X1.5(default, exact size according to requirement) , NPT thread
(optional) |
| Inlet direction | Bottom in and bottom out |
| Installation method | Wall type (default) |
| Stand type (optional) |

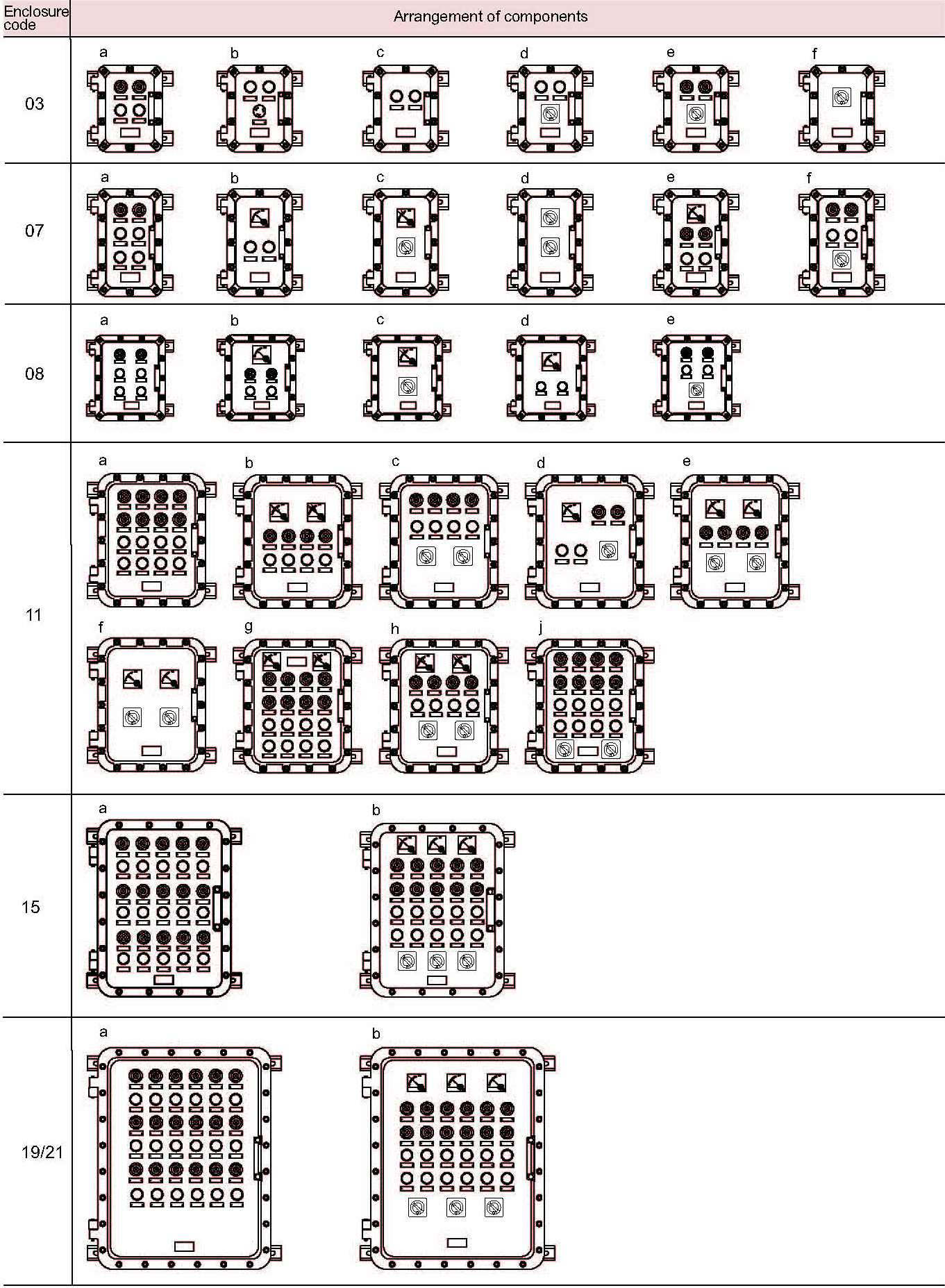

Outline and Installation Dimension(Dimensions in mm):
