KDP06 Series Explosion Proof Electrical Equipment Explosion Proof
Magnetic Starter
Application and Features:
● Explosion protection
- IECEx (IEC)-IECEx TPS 18.0025X
- ATEX (CENELEC,EN)-TPS 19 ATEX 003086 0005 X Rev. 00
- China Ex(GB)
● Application in hazardous area
Zone 1 and Zone 2,
Zone 21 and Zone 22
● Three types of explosion protection: Ex db IIB; Ex db IIB+H2; Ex
tb IIIC).
● The enclosure can be equipped with miniature circuit breakers
(MCB) or molded case circuit breakers (MCCB), contactors, thermal
relays, control buttons, indicator lights,push switches,
potentiometers, voltmeters, ammeters, tachometers, terminals, etc.
● It’s able to control the start, stop, forward and reverse
rotation of the motor, and the comprehensive protection of the
motor, able to multi-places control.
● The enclosure with hinges and handle, convenient for installation
and maintenance.Protect the flame-proof surface when operating.
● The circuit breaker using metal handle with frozen-resistant and
can be equipped with a padlock.
● Can be customized according to user requirements, meet the
certificate use restrictions.
● The number of elements and the maximum number of holes size needs
to meet the requirements of power dissipation and mechanical
strength of the housing.
● Please specify the special requirements when ordering.
Note:
1. Please select the model according to the “Nomenclature” above,
and specify all the technical parameters;
2. Please provide the electrical schematic diagram;
3. Please specify the number, specification and position of the
cable entry holes, and ex-proof cable glands provided by user;
4. The rain shade is customizable by requirements.
Technical Parameter:
| Ex marking | Gas | Il2 G Ex db IIB T6/T5/T4 Gb | Ex db IIB T6/T5/T4 Gb | Ex d IIB T6/T5/T4 Gb |
| Ii2 G Ex db IIB+H2 T6/T5/T4 Gb | Ex db IIB+H2 T6/T5/T4 Gb | Ex d IIB+H2 T6/T5/T4 Gb |
| Dust | II2 D Ex tb IIIC T80/T95/T130℃ Db | Ex tb IIIC T80/T95/T130℃ Db | Ex tD A21 IP66 T80/T95/T130℃ |
| Conformity to standards | IEC 60079-0,IEC 60079-1,IEC 60079-31 EN 60079-0, EN 60079-1, EN
60079-31 GB3836.1,GB3836.2,GB12476.1,GB12476.5 |
| Enclosure material | Enclosure | Aluminum alloy enclosure, powder coated, Industrial grey with dark
lines texture (RAL7035) |
| Transparent part | Tempered glass, resistant to 4J impact |
| Rain shade | Bended steel plate surface powder coated, industrial grey with dark
lines texture (RAL7035) or stainless steel 304/316, please note
when needed |
| Exposed fasteners | Stainless steel |
| Components | Power circuit breaker | Miniature circuit breaker (MCB) or molded case circuit breaker
(MCCB) and leakage circuit breaker |
| Branch switch | Miniature circuit breaker (MCB) or molded case circuit breaker
(MCCB) and leakage circuit breaker |
| Terminal block | World famous brand |
| Indicator | Red, green, yellow, blue, white |
| Button | Red, green, yellow, blue, white |
| Control switch | LW26-D, LW26-F |
| AC contactor | World famous brand |
| Thermal relay | World famous brand |
| Rated voltage | Maximum 690V AC |
| Rated current | Maximum 200A |
| Frequency | 50Hz/60Hz |
| Maximum dissipation power |
Enclosure size |
Type | Ta:+40℃ | Ta:+60℃ |
| T6/T80℃ | T5/T95℃ | T4/T130℃ | T6/T80℃ | T5/T95℃ | The weight of Empty enclosure |
| Power | Current | Power | Current | Power | Current | Power | Current | Power | Current |
| 282×210×170 | 03 | 45W | -- | 110W | -- | 110W | -- | 45W | -- | 72W | -- | 9.0kg |
| 350×210×170 | 07 | 45W | ≤40A | 80W | ≤50A | 139W | -- | 45W | ≤40A | 80W | ≤50A | 11.5kg |
| 350×300×235 | 08 | 45W | ≤40A | 80W | ≤50A | 139W | -- | 45W | ≤40A | 80W | ≤50A | 16.6kg |
| 433×350×280 | 11 | 100W | ≤95A | 288W | ≤120A | 288W | -- | 100W | ≤95A | 162W | ≤120A | 26kg |
| 563×433×280 | 15 | 130W | ≤150A | 365W | ≤200A | 365W | -- | 130W | ≤150A | 225W | ≤200A | 48kg |
| 720×563×280 | 19 | 200W | ≤200A | 448W | ≤300A | 448W | ≤300A | 200W | ≤200A | 380W | ≤300A | 85kg |
| 720×563×350 | 21 | 210W | ≤200A | 690W | ≤300A | 690W | ≤300A | 210W | ≤200A | 400W | ≤300A | 95kg |
| Degree of protection | IP66 |
| Ambient temperature | -20℃~+40/60℃, -40℃~+40/60℃ |
| Cable entry | M□X1.5(default, exact size according to requirement) , NPT thread
(optional) |
| Inlet direction | Bottom in and bottom out, upon request |
| Installation method | Wall type (default) |
| Stand type (optional) |
Outline and Installation Dimension(Dimensions in mm):

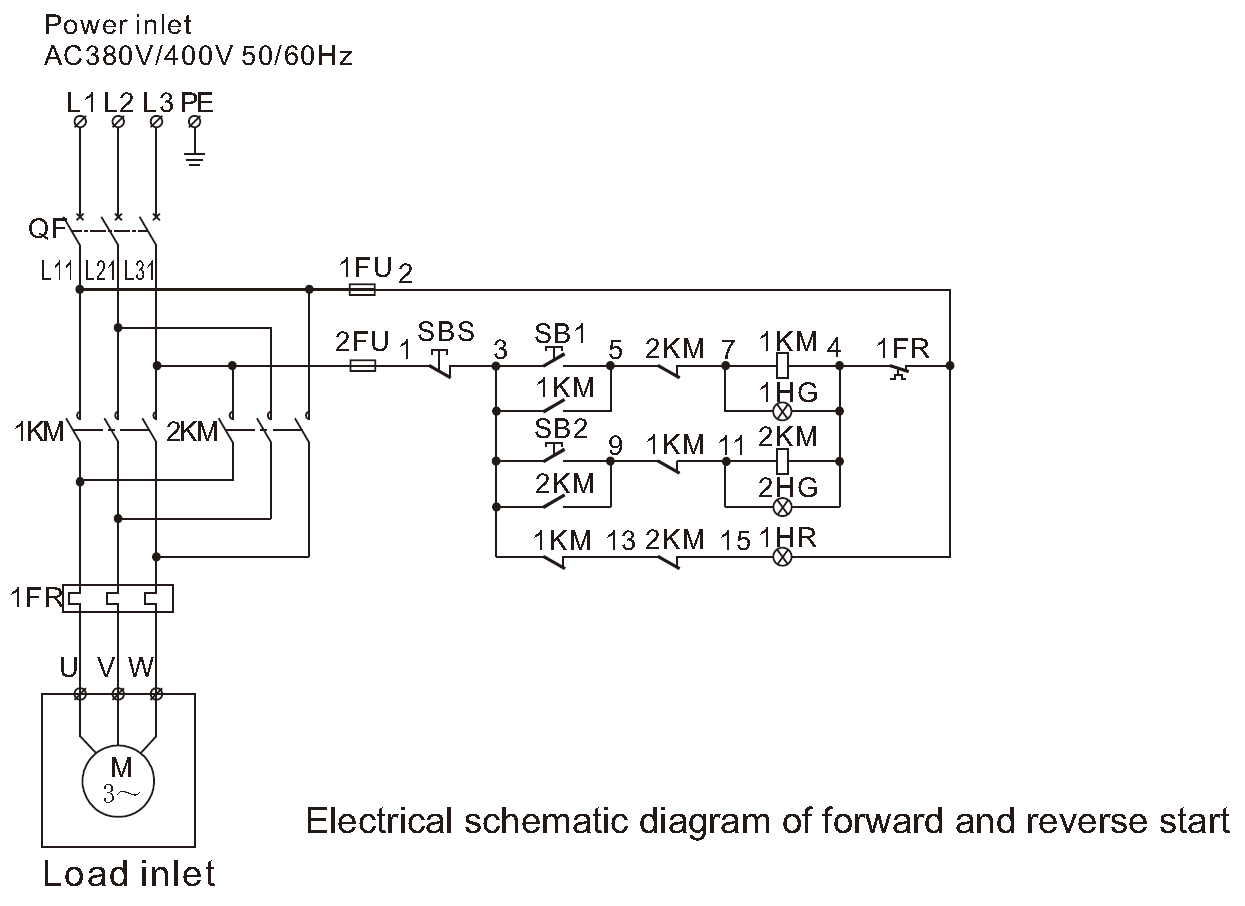

Electrical Schematic Diagram:
Description of electrical components code |
QF | Circuit breaker |
KM | AC contactor |
FR | Thermal relay |
FU1, FU2 | Fuse |
SB1 | Stop button |
SB2 | Start button |
HR | Stop indicator |
HG | Run indicator |
| Description of electrical components code |
| QF | Circuit breaker |
| KM1, KM2 | AC contactor |
| FR | Thermal relay |
| FU1, FU2 | Fuse |
| SBS | Stop button |
| SB1 | Forward start button |
| SB2 | Reverse start button |
| HR | Stop indicator |
| HG1 | Forward running indicator |
| HG2 | Reverse running indicator |
| Description of electrical components code |
| QF | Circuit breaker |
| KM1, KM2 | AC contactor |
| FR | Thermal relay |
| FU1, FU2 | Fuse |
| SBS | Stop button |
| SB1 | Forward start button |
| SB2 | Reverse start button |
| HR | Stop indicator |
| HG1 | Forward running indicator |
| HG2 | Reverse running indicator |
