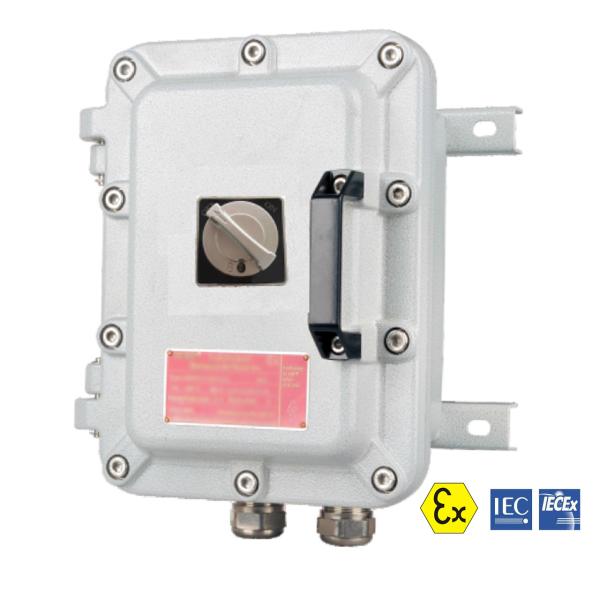

    IECEx Zone 1 And Zone 2 Explosion Proof Circuit Breaker KDP05 Series

    Ask Lasest Price
    Brand Name : KHJ
    Model Number : KDP05
    Certification : ATEX,IECEx,CE,RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3-8work days
    • Product Details
    • Company Profile

    IECEx Zone 1 And Zone 2 Explosion Proof Circuit Breaker KDP05 Series

    KDP05 Series Explosion Proof Electrical Equipment Explosion proof Circuit Breaker

    Application and Features:

    ● Explosion protection
    - IECEx (IEC)-IECEx TPS 18.0025X
    - ATEX (CENELEC,EN)-TPS 19 ATEX 003086 0005 X Rev. 00
    - China Ex(GB)
    ● Application in hazardous area
    Zone 1 and Zone 2,
    Zone 21 and Zone 22
    ● Three types of explosion protection: Ex db IIB, Ex db IIB+H2, Ex tb IIIC.
    ● The enclosure can be equipped with miniature circuit breakers (MCB) or molded case circuit breakers (MCCB), leakage circuit breakers.
    ● leakage protection accessories, shunt tripping device, and other protection devices are optional.
    ● The enclosure with hinges and handle, convenient for installation and maintenance.Protect the flame-proof surface when operating.
    ● The circuit breaker using metal handle with frozen-resistant and can be equipped with a padlock.
    Note:
    1. Please select the model according to the “Nomenclature” above, and specify all the technical parameters;
    2. Please specify the number, specification and position of the cable entry holes, and cable entry device provided by user;
    3. The rain shade is customizable by requirements.

    Technical Parameter:


    Ex markingGasIl2 G Ex db IIB T6/T5/T4 GbEx db IIB T6/T5/T4 GbEx d IIB T6/T5/T4 Gb
    II2 G Ex db IIB+H2 T6/T5/T4 GbEx db IIB+H2 T6/T5/T4 GbEx d IIB+H2 T6/T5/T4 Gb
    DustII2 D Ex tb IIIC T80/T95/T130℃ DbEx tb IIIC T80/T95/T130℃ DbEx tD A21 IP66 T80/T95/T130℃
    Conformity to standards

    IEC 60079-0, IEC 60079-1, IEC 60079-31

    EN 60079-0, EN 60079-1, EN 60079-31 GB3836.1,GB3836.2,GB12476.1,GB12476.5

    Enclosure materialEnclosureAluminum alloy enclosure, powder coated, Industrial grey with dark lines texture (RAL7035)
    Rain shadeBended steel plate surface powder coated, industrial grey with dark lines texture (RAL7035) or stainless steel 304/316, please note when needed.
    Exposed fastenersStainless steel
    ComponentsCircuit breakerMiniature circuit breaker (MCB) or molded case circuit breaker (MCCB) and leakage circuit breaker
    Indicator lightRed, green, yellow, blue, white, according to requirement add more
    Rated voltageMaximum 1000V AC, 1500V DC
    Rated currentMaximum 630A
    Frequency50Hz/60Hz
    Maximum dissipation power

    Enclosure size


    Type

    		Ta:+40℃Ta:+60℃
    T6/T80℃T5/T95℃T4/T130℃T6/T80℃T5/T95℃The weightof Emptyen closure
    PowerCurrentPowerCurrentPowerCurrentPowerCurrentPowerCurrent
    282X210X1700345W≤63A110W--110W--45W≤63A72W--9.0kg
    350X210X1700745W63A~100A80W--139W--45W63A~100A80W--11.5kg
    350X300X2350845W63A~100A80W--139W--45W63A~100A80W--16.6kg
    433X350X28011100W100A~250A288W--288W--100W100A~250A162W--26kg
    563X433X28015130W250A~400A365W--365W--130W250A~400A225W--48kg
    720X563X28019200W--448W400A~630A448W--200W--380W--85kg
    720X563X35021210W--690W--690W400A~630A210W--400W--95kg
    Degree of protectionIP66
    Ambient temperature-20℃~+40/60℃, -40℃~+40/60℃
    Cable entry

    M□1.5(default, exact size according to requirement) , NPT thread (optional), KBM-□ for

    recommended.

    Inlet directionBottom in and bottom out
    Installation methodWall type (default)
    Stand type (optional)

    Outline and Installation Dimension(Dimensions in mm):
