KDP03 Series Explosion Proof Electrical Equipment Explosion proof
Electrical Apparatus
Application and Features:
● Explosion protection
- IECEx (IEC)-IECEx TPS 18.0025X
- ATEX (CENELEC,EN)-TPS 19 ATEX 003086 0005 X Rev. 00
- China Ex(GB)
● Application in hazardous area
Zone 1 and Zone 2,
Zone 21 and Zone 22
● Three types of explosion protection: Ex db IIB, Ex db IIB+H2, Ex
tb IIC
● The enclosure can be equipped with miniature circuit breakers
(MCB) or molded case circuit breakers (MCCB), leakage circuit
breakers, contactors, thermal relays, PLCs,control transformers,
soft starters, control buttons, indicator lights, push
switches,potentiometers, Voltmeter, ammeter, tachometer, terminal
block, etc.
● The enclosure with hinges and handle, convenient for installation
and maintenance.Protect the flame-proof surface when operating.
● The circuit breaker using metal handle with frozen-resistant and
can be equipped with a padlock.
● The enclosures can be combined and installed to meet the various
requirements of power distribution systems.
● Can be customized according to user requirements, meet the
certificate use restrictions.
● The number of elements and the maximum number of holes size needs
to meet the requirements of power dissipation and mechanical
strength of the housing.
● Please specify the special requirements when ordering.
Note:
1. Please select the model according to the “Nomenclature” above,
and specify all the technical parameters;
2. Please provide the electrical schematic diagram;
3. Please specify the number, specification and position of the
cable entry holes, and ex-proof cable glands provided by user;
4. The rain shade is customizable by requirements.
Technical Parameter:
| Ex marking | Gas | Il2 G Ex db IIB T6/T5/T4 Gb | Ex db IIB T6/T5/T4 Gb | Ex d IIB T6/T5/T4 Gb |
| Ii2 G Ex db[ ia/ib] IIB T6/T5/T4 Gb | Ex db[ ia/ib] IIB T6/T5/T4 Gb | Ex d[ ia/ib] IIB T6/T5/T4 Gb |
| Ii2 G Ex db IIB+H2 T6/T5/T4 Gb | Ex db IIB+H2 T6/T5/T4 Gb | Ex d IIB+H2 T6/T5/T4 Gb |
| Ii2 G Ex db[ia/ib] IIB+H2 T6/T5/T4 Gb | Ex db[ia/ib] IIB+H2 T6/T5/T4 Gb | Ex d[ia/ib] IIB+H2 T6/T5/T4 Gb |
| Dust | II2 D Ex tb IIIC T80/T95/T130℃ Db | Ex tb IIIC T80/T95/T130℃ Db | Ex tD A21 IP66 T80/T95/T130℃ |
| Conformity to standards | IEC 60079-0, IEC 60079-1, IEC 60079-11, IEC 60079-31
EN 60079-0, EN 60079-1, EN 60079-11, EN 60079-31
GB3836.1,GB3836.2,GB12476.1,GB12476.5 |
|
|
| Enclosure material | Enclosure | Aluminum alloy enclosure, powder coated, Industrial grey with dark
lines texture (RAL7035) |
| Transparent part | Tempered glass, resistant to 4J impact |
| Rain shade | Bended steel plate surface powder coated, industrial grey with dark
lines texture (RAL7035) or
stainless steel 304/316, please note when needed |
| Exposed fastener | Stainless steel |
| Components | Power circuit
breaker | Miniature circuit breaker (MCB) or molded case circuit breaker
(MCCB) and leakage circuit breaker |
| Branch switch | Miniature circuit breaker (MCB) or molded case circuit breaker
(MCCB) and leakage circuit breaker |
| Terminal block | World famous brand |
| Indicator | Red, green, yellow, blue, white |
| Button | Red, green, yellow, blue, white |
| Control switch | LW26-D, LW26-F |
| AC contactor | World famous brand |
| Thermal relay | World famous brand |
| PLC programmer | World famous brand |
| soft starter | World famous brand |
| Rated voltage | Maximum 1000V AC, 1500V DC |
| Rated current | Maximum 1200A |
| Frequency | 50Hz/60Hz |
| Degree of protection | IP66 |
| Ambient temperature | -20℃~+40/60℃, -40℃~+40/60℃ |
| Cable entry | M□X1.5(default, exact size according to requirement) , NPT thread
(optional), |
| Inlet direction | Bottom in and bottom out, upon request |
| Installation method | Wall type (default) |
| Stand type (optional) |
Selection Table:
Type | Enclousre size (mm) | Internal size (mm) | Maximum power dissipation (Ta: +40°C) | Maximum power dissipation (Ta: +60°C) | The weight of Empty enclosure |
| LxWxH | LxWxH | T6/T80℃ | T5/T95℃ | T4/T130℃ | T6/T80℃ | T5/T95℃ |
| KDP03-03 | 282X210X170 | 216X144X126 | 45W | 110W | 110W | 45W | 72W | 9.0kg |
| KDP03-07 | 350X210X170 | 282X142X123 | 45W | 80W | 139W | 45W | 80W | 11.5kg |
| KDP03-08 | 350X300X235 | 278X228X189 | 45W | 80W | 139W | 45W | 80W | 16.6kg |
| KDP03-11 | 433X350X280 | 361X278X225 | 100W | 288W | 288W | 100W | 162W | 26kg |
| KDP03-15 | 563X433X280 | 488X358X197 | 130W | 365W | 365W | 130W | 225W | 48kg |
| KDP03-19 | 720X563X280 | 630X473X182 | 200W | 448W | 448W | 200W | 380W | 85kg |
| KDP03-21 | 720X563X350 | 626X469X257 | 210W | 690W | 690W | 210W | 400W | 95kg |

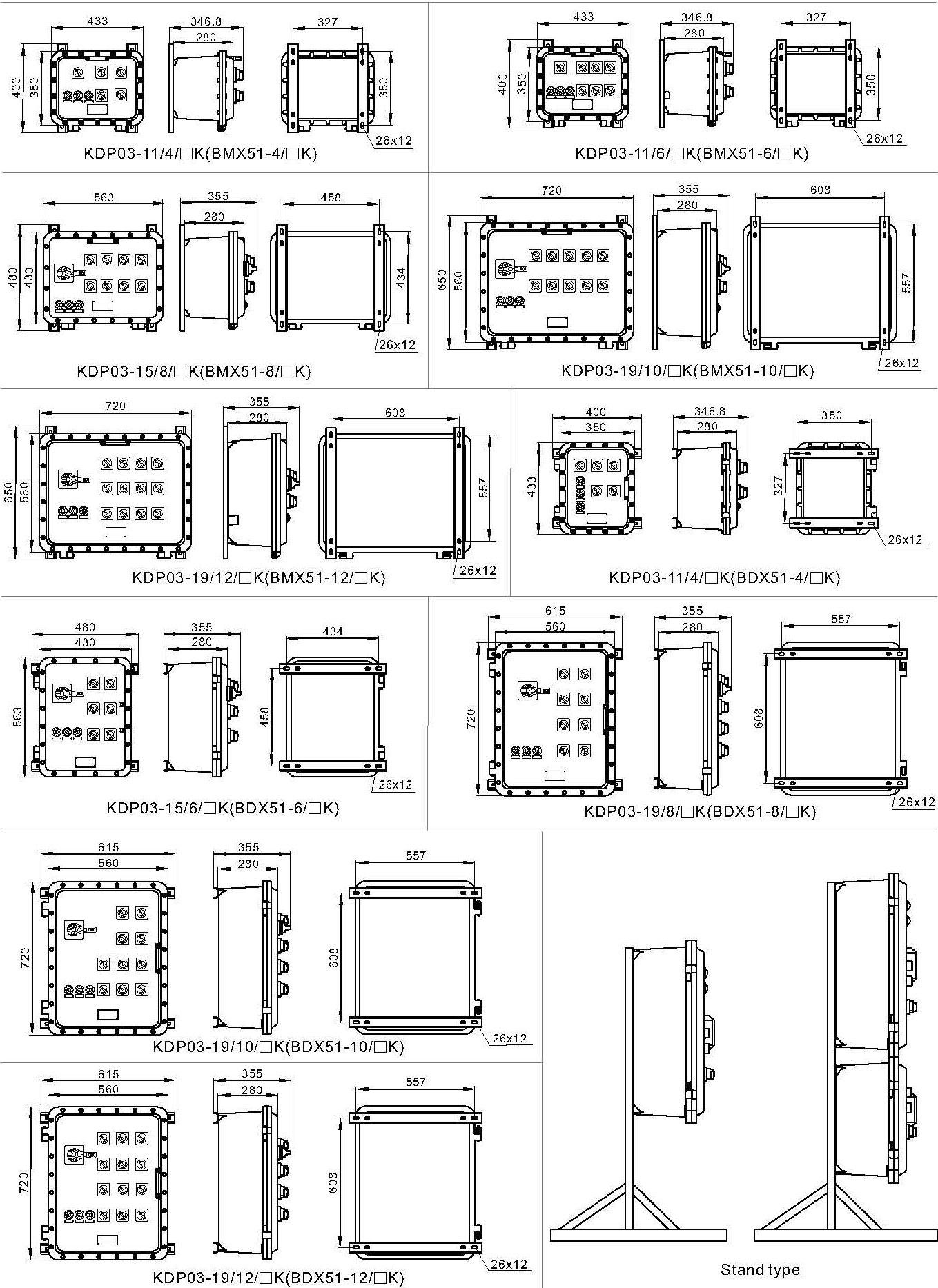

Outline and Installation Dimension(Dimensions in mm):
