KBX05 Series Explosion Proof Electrical Equipment Explosion proof
Control Station
Application and Features:
● Explosion protection
- IECEx (IEC)-IECEx CML 18.0144X Issue No
- ATEX (CENELEC, EN)-CML18ATEX3284X Issue 0
- China Ex(GB)
● Application in hazardous area
Zone 1 and Zone 2
Zone 21 and Zone 22
● Three type enclosure sizes, built-in explosion-proof components
(control button, control switch, signal lamp, potentiometer,
ammeter, etc.). The components is rail mounting type,which can be
installed on the guide rail quickly and accurately, easy for
installation and maintenance.
● Component arrangement can be combined upon request.
● Emergency stop can be equipped with anti misoperation mechanism
and padlock (If need).
● Stainless steel exposed fastener, anti dropping structure, easy
for installation and maintenance.
Note:Note:
1. Bulit-in components model meanings please refer to Part G Ex
components;
2. Rain shade can be customized upon request.
Model example:
KBX05-07/R01F-A1/I/02FXⅡ: 07# enclosure, equipped with one signal
lamp, AC/DC 12-36V, and one push button, 1NO+1NC,
with marking “I”, bottom inlet M25X1.5.
Technical Parameter:
| Ex marking | Gas | Il2 G Ex db eb IIC T6 Gb | Ex db eb IIC T6 Gb | Ex d e IIC T6 Gb |
| Dust | II2 D Ex tb IIΙC T80℃ Db | Ex tb IIΙC T80℃ Db | Ex tD A21 IP66 |
| Conformity to standards | IEC 60079-0, IEC 60079-7, IEC 60079-11, IEC 60079-31
EN 60079-0, EN 60079-7, EN 60079-11, EN 60079-31
GB3836.1,GB3836.2,GB3836.3,GB12476.1,GB12476.5 |
|
|
| Enclosure material | Enclosure | GRP (Polyester resin,glass fibre reinforced), antistatic |
| Rain shade | Bended steel plate surface powder coated (black color)
or stainless steel 304/316, please note when needed. |
| Color of enclosure | Black |
| Exposed fastener | Stainless steel,anti-drop structure. |
| Rated voltage | Max. 415V AC, 250V DC |
| Rated current | 6A,10A,16A |
| Wire diameter | ≤6A: 0.75～2.5mm² |
| 6A＜I≤10A: 1.5～2.5mm² |
| 10A＜I≤16A: 2.5mm² |
| Degree of protection | IP66 |
| Ambient temperature | -40℃〜+40/45/50/55/60/65/70℃ |
| Built-in components | K0101 explosion-proof control button. |
| K0102 explosion-proof signal lamp. |
| K0101-S explosion-proof control switch. |
| K0109 explosion-proof ammeter. |
| Installation method | Hanging type |
| Cable entries | Hanging type | M25X1.5,G3/4
The cable gland is not available when delivery, please indicate if
necessary. |
Components and Accessories:
 |  |  |  |
| K0101-Control button | K0101-A2 Two control button | K0102-Signal lamp | K0101-A Control button
with signal lamp |
 |  |  |  |  |
| K0109-Ammeter | K0155 Switch | φ38 Operating handle | φ65
Operating handle
(padlock available) | Square operating handle |
Note:
1.Installation area of 1 pcs K0109-48 is same as 2 pcs buttons;
2.Installation area of 1 pcsφ65 operating handle or 1 pcs square
operating handle is same as 2 pcs buttons.
Selection Table:

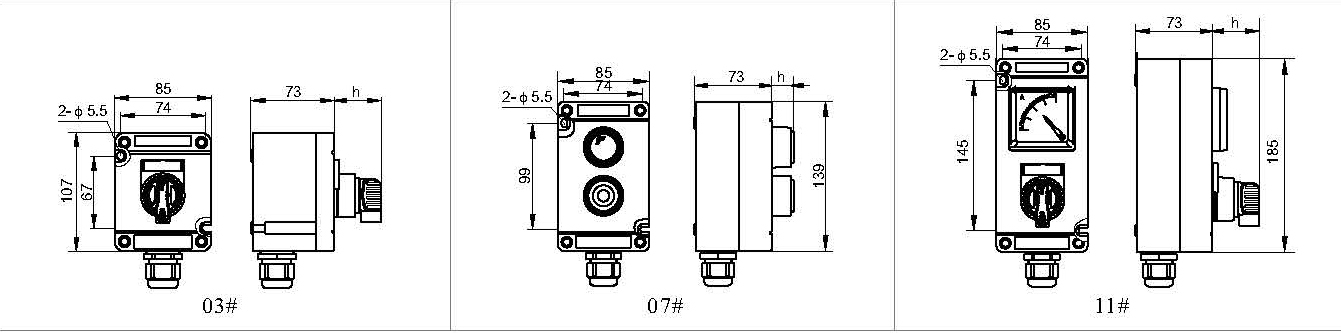

Outline and Installation Dimension(Dimensions in mm):
| Component accessories | h (mm) |
| Meter frame | 11 |
| Standard button | 20.5 |
| Double button | 21.5 |
| Button with key | 38(62) |
| Emergency stop button with self-locking | 40 |
| Mushroom head button | 32 |
| Mushroom head button with key | 45(69) |
| Component accessories | h (mm) |
| Indicator light | 23.5 |
| Illuminated control button | 20.5 |
| Control switch S1,S3 | 40 |
| Control switch S2 | 42 |
| Potentiometer (single-turn) | 27 |
| Potentiometer (multi-turn) | 40.5 |
