KBX03 Series Explosion Proof Electrical Equipment Explosion proof
Control Station
Application and Features:
● Explosion protection
- IECEx (IEC)-IECEx CML 18.0144X Issue No
- ATEX (CENELEC,EN)-CML18ATEX3284X Issue 0
- China Ex(GB)
● Application in hazardous area
Zone 1 and Zone 2,
Zone 21 and Zone 22
● There are 5 types of enclosures, assembled with explosion-proof
components (control buttons,switches, indicator lights,
potentiometers, ammeters, etc.) and terminal blocks. The components
are rail-type structure, which can be quickly installed and
convenient for installation and maintenance.
● The emergency stop button can be equipped with anti-misoperation
mechanism and padlock byrequirements.
● Stainless steel exposed fasteners, anti-drop structure,
convenient for installation and maintenance
Note:Note:
1. Example: KBX03-19A2B1GXM25X1.5, 19# enclosure, which with two
control buttons, one ammeter, wall mounting type,one bottom inlet
M25X1.5;
2. The specific requirements of the components are based on the
drawings;
3. Button code, switch code, signal lamp code, ammeter code ;
4. The rain shade is customizable by requirements.
Technical Parameter:
| Ex marking | Gas | Il2 G Ex db eb IIC T6 Gb | Ex db eb IIC T6 Gb | Ex d e IIC T6 Gb |
| Dust | II2 D Ex tb IIΙC T80℃ Db | Ex tb IIΙC T80℃ Db | Ex tD A21 IP66 T80℃ |
| Conformity to standards | IEC 60079-0, IEC 60079-7, IEC 60079-11, IEC 60079-31
EN 60079-0, EN 60079-7, EN 60079-11, EN 60079-31
GB3836.1,GB3836.3,GB3836.3,GB12476.1,GB12476.5 |
|
|
| Enclosure material | Enclosure | GRP (Polyester resin,glass fibre reinforced), antistatic |
| Rain shade | Bended steel plate surface powder coated (black color)
or stainless steel 304/316, please note when needed. |
| Color of enclosure | Black |
| Exposed fastener | Stainless steel exposed fasteners, anti-drop structure |
| Rated voltage | Max. 415V AC, 250V DC |
| Rated current | 6A,10A,16A |
| Wire diameter | ≤6A: 0.75～2.5mm² |
| 6A＜I≤10A: 1.5～2.5mm² |
| 10A＜I≤16A: 2.5mm² |
| Degree of protection | IP66 |
| Ambient temperature | -40℃〜+40/45/50/55/60/65/70℃ |
| Built-in components | K0101 explosion-proof control button. |
| K0102 explosion-proof indicator. |
| K0101-S explosion-proof control switch. |
| K0109 explosion-proof ammeter. |
| Installation method | Wall type and stand type |
| Cable entries | Wall type | M16X1.5~M63X1.5, G1/2~G2
Without cable entry device as default, please note if which is
needed. |
| Stand type | Only for G1 thread |
Components and Accessories:
 |  |  |  |

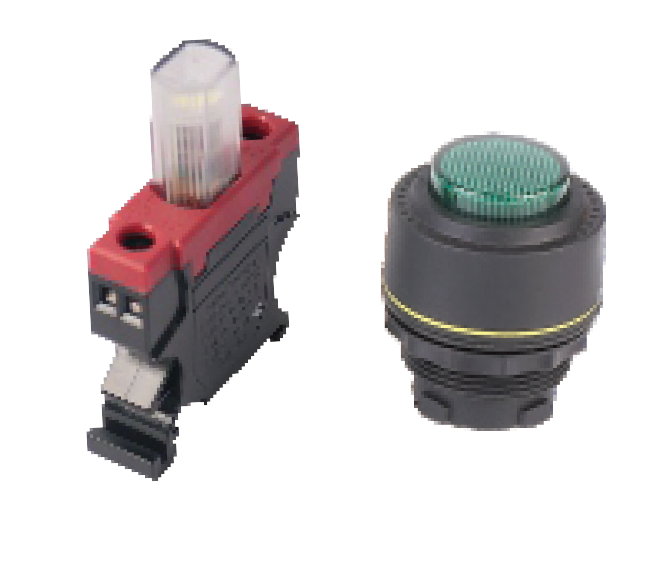

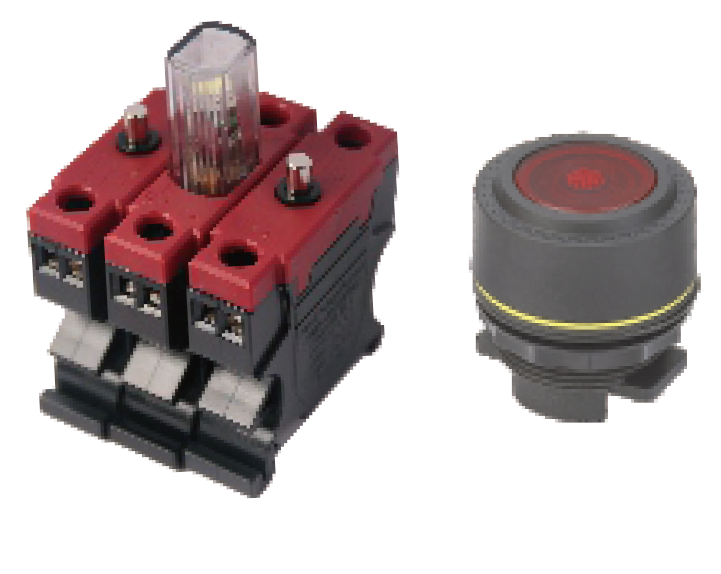

| K0101-Control button | K0101-A2 Two control button | K0102-Signal lamp | K0101-A Control button
with signal lamp |
 |  |  |  |  |

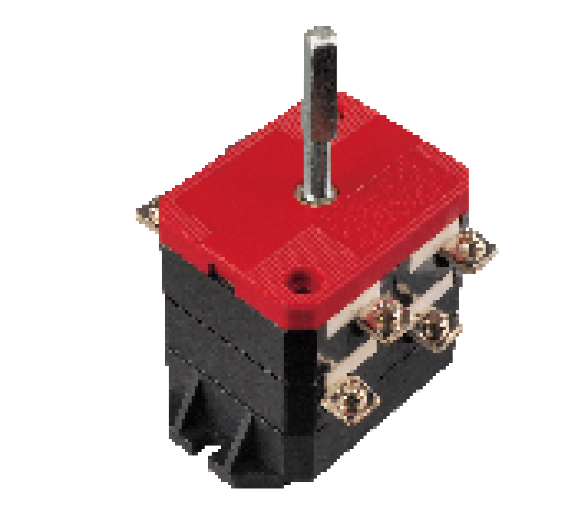

| K0109-Ammeter | K0155 Switch | φ38 Operating handle | φ65
Operating handle
(padlock available) | Square operating handle |
Note:
1. K0109-48 occupies 2 components position;
2. φ65 and square operating handle occupies 2 components position;
3. K0155 switch, HL0109-72 occupies 2~3 components position.
Selection Table:
Outline and Installation Dimension(Dimensions in mm):
Height of electrical accessories:
| Electrical accessories | Frame of ammeter | Standard button | Double Button | Button with key | Self-lock button | Mushroom button | Mushroom button with key | Indicator light | illuminated button | Control switch S1, S3 | Control switch S2 | potentiometer (single turn) | potentiometer multi turn) |
| h(mm) | 11 | 20.5 | 21.5 | 38(62) | 40 | 32 | 45(69) | 23.5 | 20.5 | 40 | 42 | 27 | 40.5 |
Accessories list:
| Item | Picture | Purchase code | Weight (kg) |
Stand type connection part |  | 1.01.901.00007 | 0.3 |
Pole |  | 1.01.901.00006 | 3.4 |
Basis |  | 1.01.901.00005 | 0.6 |
