Zone 21&22 Modular LED Explosion Proof Flood Light Vibration Resistant

Ask Lasest Price
Brand Name :	KHJ
Model Number :	Ex-KT320,Ex-KT400,Ex-KT480
Certification :	ATEX,IECEx,CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	400pcs per day
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

Zone 21&22 Modular LED Explosion Proof Flood Light Vibration Resistant

LED Explosion Proof Flood Light,Zone 1&2,Zone 21&22, vibration and shock resistant

LED Explosion Proof Flood Light,Zone 1&2,Zone 21&22

Highlight:LED Explosion Proof Flood Ligh, vibration and shock resistant

Features And Benefits:

1. Modular design allows great flexibility.80W~480W for optional.

2. Ideal to replace 70W~1000W traditional lamp.

3. Vibration and shock resistant.

4. Low maintenance.

5. 5-year performance warranty.

Product Differentiation:

Type Of Protection	Ex db ,Ex tb
Protection Standards	(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction	Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1, Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation	(IEC)EN 60079-14
Certificate	pending
Equipment Coding	II 2 G Ex db IIC T* Gb II 2 D Ex tb IIIC T* Db IP66
Temperature Class	Rated power (W)	-40℃ ≤ Ta ≤ +55℃
		Gas	Dust
	320W~480W	T5	T95℃
ATEx Coding	II 2 G / II 2 D
Ingress Protection	IP66 (IEC)EN 60529
Cable entry	M201.5,M251.5,3/4 NPT
CE Mark	The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements

Applications:

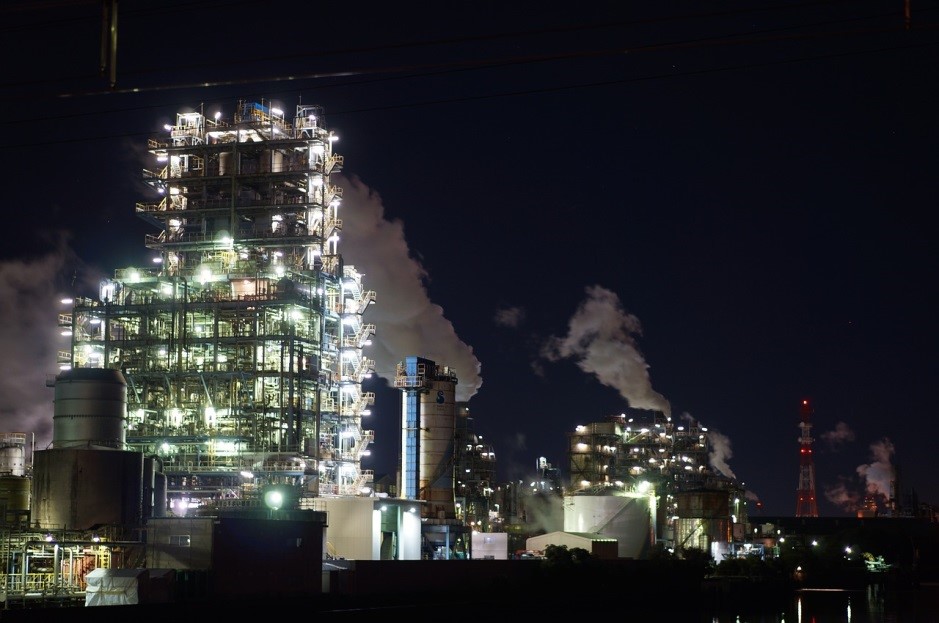

Can be widely used for hazardous area Zone 1&2 ,Zone 2&22 where flammable vapors, gases,ignitable dusts, fibers or flyings are present; indoors or outdoors
1. Zones 1 and 2 (Gas) and 21 and 22 (Dust)
2. Marine, wet locations, and hose-down environments
3. Petrochemical or pharmaceutical facilities; platforms
4. Other potentially explosive industrial environments

Ordering information:

P/N	Operating Voltage(V)	Luminous Flux(lm)	Power(W)	CRI	Color Temp.	CCT(K)	Temp. Classiﬁcation
Ex-KTK320**CH-P4-E	100-277 VAC (141-392 VDC)	46400	320	70	Cool white	5700±300k	T5
Ex-KTK320**NH-P4-E		46400		70	Natural white	5000±300k	T5
Ex-KTK320**NH-P4-E		46400		70	Natural white	4000±300k	T5
Ex-KTK320**WM-P4-E		41760		70	Warm white	3000±300k	T5
Ex-KTK400**CH-P4-E		58054	400	70	Cool white	5700±300k	T5
Ex-KTK400**NH-P4-E		58054		70	Natural white	5000±300k	T5
Ex-KTK400**NH-P4-E		58054		70	Natural white	4000±300k	T5
Ex-KTK400**WM-P4-E		52248		70	Warm white	3000±300k	T5
Ex-KTK480 ** CH-P4-E		69120	480	70	Cool white	5700±300k	T5
Ex-KTK480 ** NH-P4-E		69120		70	Natural white	5000±300k	T5
Ex-KTK480 ** NH-P4-E		69120		70	Natural white	4000±300k	T5
Ex-KTK480 ** WM-P4-E		62208		70	Warm white	3000±300k	T5

Remarks:

1. The ﬁrst * stands for Operating Voltage including default -100-277VAC,D-347-480VAC

2. The second * stands for Candela Distribution including H3V3,H5V5,H6V6

What are our advantages?

1.Professional lighting manufacturer for more than 10 years.
2. Gold supplier.
3. Provide high quality products and best service.

Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.

4. Various designs.
