LED Explosion Proof Flood Light,Ex tank series,80W,100w,120W, Ex db
Zone 1
LED Explosion Proof Flood Light,Ex tank series,80W,100w,120W, Ex db
Zone 1
Highlight: LED Explosion Proof Flood Light Zone 1&2,Zone 21&22
Features And Benefits:
1. High efficacy LED Source with long lifespan>100,000 hoursz.
2. Low THD around 10%,Less interference.
3. Modular design allows great flexibility.
4. Environmentally friendly, no mercury.
5. 5-year performance warranty.
Product Differentiation:
| Type Of Protection | Ex db ,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN
60079-31
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,
IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,
Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | |
| Equipment Coding | II 2 G Ex db IIC T* Gb
II 2 D Ex tb IIIC T* Db IP66 |
| Temperature Class | Rated power (W) | -40℃ ≤ Ta ≤ +55℃ |
| Gas | Dust |
| 80W~120W | T5 | T95℃ |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.
The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC
Type Examination and compliance with the Essential Health and
Safety Requirements |
Applications:

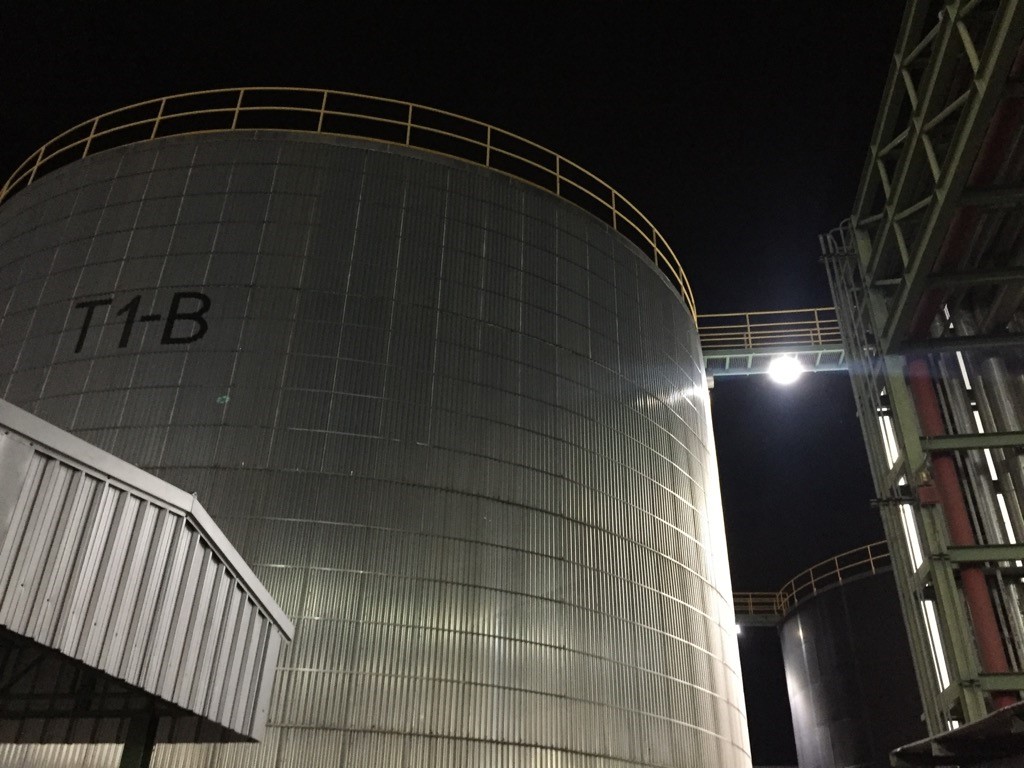

It is ideally suited for oil & gas, chemical, petrochemical and
other potentially explosive industrial environments
1. Petrochemical or pharmaceutical facilities
2. Onshore and offshore platforms
3. Refineries
4. Other potentially explosive industrial environments
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux
(lm) | Power
(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KTK80**CH-E |
100-277 VAC
(141-392 VDC)
| 12107 |
80 | 70 | Cool white | 5700K±300K | T5 |
| Ex-KTK80**NH-E | 12107 | 70 | Natural white | 5000K±300K | T5 |
| Ex-KTK80**NH-E | 12107 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK80**WM-E | 10896 | 70 | Warm white | 3000±300k | T5 |
| Ex-KTK100**CH-E | 14954 |
100 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK100**NH-E | 14954 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK100**NH-E | 14954 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK100**WM-E | 13458 | 70 | Warm white | 3000±300k | T5 |
| Ex-KTK120**CH-E | 17310 |
120 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK120**NH-E | 17310 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK120**NH-E | 17310 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK120**WM-E | 15579 | 70 | Warm white | 3000±300k | T5 |
Remarks:
1. The first * stands for Operating Voltage including default
-100-277VAC,D-347-480VAC ,E-20-30VAC.
2. The second * stands for Candela Distribution including
H3V3,H5V5,H6V6.
