IIC Zone 1 LED Explosion Proof Flood Light Four Lamps 320W 400W 480W

Ask Lasest Price
Brand Name :	KHJ
Model Number :	Ex-KT320,Ex-KT400,Ex-KT480
Certification :	ATEX,IECEx,CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	400pcs per day
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

IIC Zone 1 LED Explosion Proof Flood Light Four Lamps 320W 400W 480W

IIC Zone 1 LED Explosion Proof Flood Light Ex Tank Series 320W400W480W(Four lamp)

Ex Tank Series 320W,400W and 480W LED Explosion Proof Flood Light

Highlight: LED Explosion Proof Flood Light,IIC Zone 1 Ex Tank Series

Features And Benefits:

1. Durable Copper-free aluminum alloy body plus tempered glass cover.
2. 5-year performance warranty.
3. The independent LED and the driver chamber with external airflow heat sink provide excellent heat dissipation to ensure long life.
4. Excellent marine anti-corrosion performance, suitable for use in humid places and marine areas.

5. 320W,400W and 480W available. Optional luminous intensity distribution for different applications.

6. Easy Installation and Maintenance.

Product Important Information:

Type Of Protection	Ex db ,Ex tb
Protection Standards	(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction	Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1, Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation	(IEC)EN 60079-14
Certificate	pending
Equipment Coding	II 2 G Ex db IIC T* Gb II 2 D Ex tb IIIC T* Db IP66
Temperature Class	Rated power (W)	-40℃ ≤ Ta ≤ +55℃
		Gas	Dust
	320W~480W	T5	T95℃
ATEx Coding	II 2 G / II 2 D
Ingress Protection	IP66 (IEC)EN 60529
Cable entry	M201.5,M251.5,3/4 NPT
CE Mark	The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements

Applications:

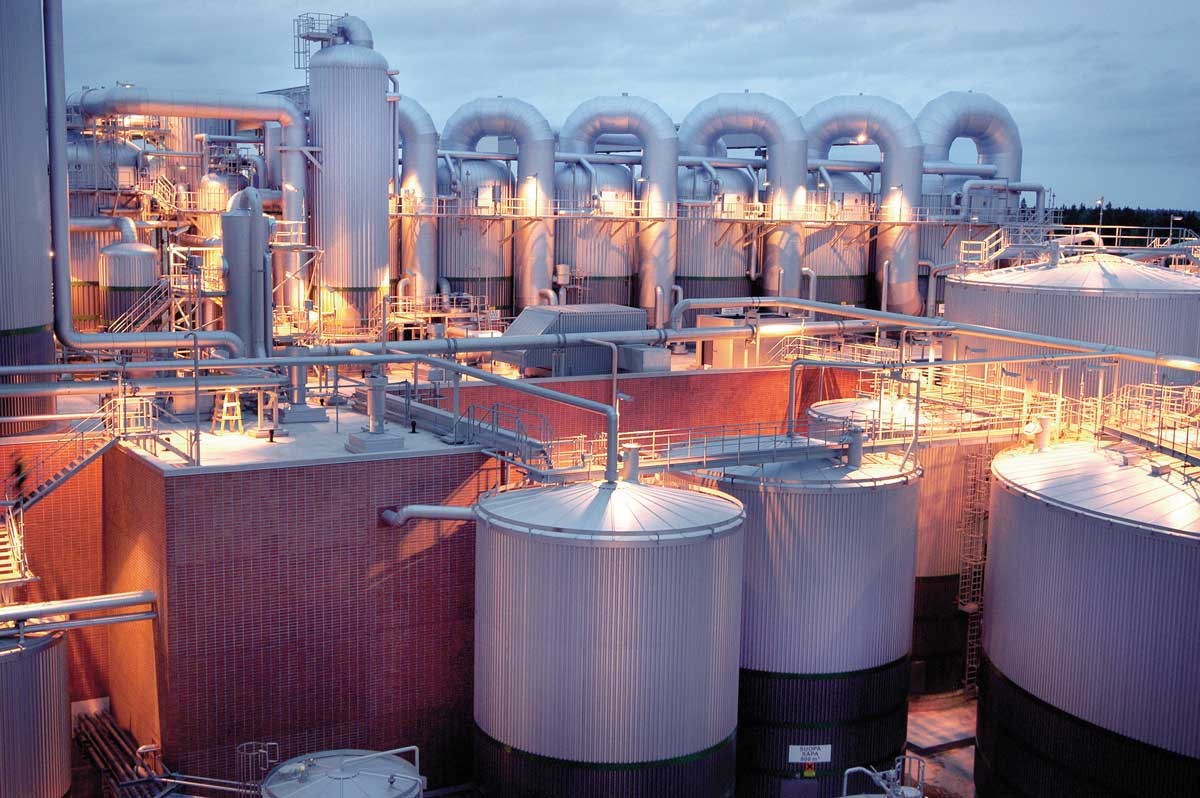

Drilling platform, single point moorings, oil tanks, workover platform, production platform, field tank, manifold center,pumping station, gasoline station, transformer station, coating plant ,warehouse .etc.

Ordering information:

P/N	Operating Voltage(V)	Luminous Flux(lm)	Power(W)	CRI	Color Temp.	CCT(K)	Temp. Classification
Ex-KTK320**CH-S4-E	100-277 VAC (141-392 VDC)	46400	320	70	Cool white	5700±300k	T5
Ex-KTK320**NH-S4-E		46400		70	Natural white	5000±300k	T5
Ex-KTK320**NH-S4-E		46400		70	Natural white	4000±300k	T5
Ex-KTK320 **WM-S4-E		41760		70	Warm white	3000±300k	T5
Ex-KTK400**CH-S4-E		58054	400	70	Cool white	5700±300k	T5
Ex-KTK400**NH-S4-E		58054		70	Natural white	5000±300k	T5
Ex-KTK400**NH-S4-E		58054		70	Natural white	4000±300k	T5
Ex-KTK400 **WM-S4-E		52248		70	Warm white	3000±300k	T5
Ex-KTK480** CH-S4-E		69120	480	70	Cool white	5700±300k	T5
Ex-KTK480** NH-S4-E		69120		70	Natural white	5000±300k	T5
Ex-KTK480** NH-S4-E		69120		70	Natural white	4000±300k	T5
Ex-KTK480** WM-S4-E		62208		70	Warm white	3000±300k	T5

Remarks:

1. The ﬁrst * stands for Operating Voltage including default -100-277VAC,D-347-480VAC.

2. The second * stands for Candela Distribution including H3V3,H5V5,H6V6.

Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.

4. Various designs.

5. Accept small orders.

6. Good location and convenient transportation.

7. ATEX, IECEx, CE, RoHS certification.
