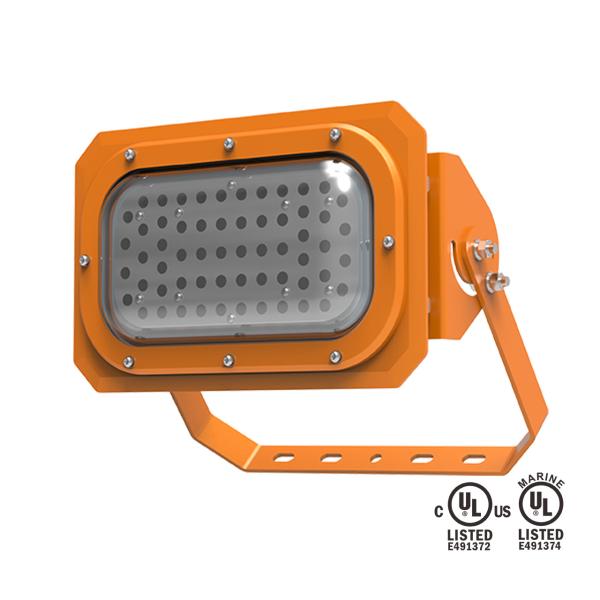

LED Explosion Proof Flood Light,UL listed,120W,150W, vibration and
shock resistant
LED Explosion Proof Flood Light,UL listed,120W,150W, vibration and
shock resistant
Highlight:LED Explosion Proof Flood Light, vibration and shock resistant
Features And Benefits:
1. Copper free aluminum alloy enclosure with epoxy powder coating,
high corrosion resistance.
2. High efficacy Led source, whole luminaire efficacy up to
140lm/w.
3. Low THD around 10%,Less interference.
4. Environmentally friendly, no mercury.
5. 5 years full performance warranty.
Product Important Information:
| Type Of Protection | Class Ⅰ Division 2 |
| Protection Standards | UL 844 - Luminaires for Use in Hazardous
UL 1598 - Luminaires.
UL 8750 - Light Emitting Diode (LED) Equipment for Use in Lighting
Products
UL 1598A - Supplemental Requirements for Luminaires for
Installation on Marine Vessels
CSA C22.2 No. 137-M1981 - Electric Luminaires for Use in Hazardous
Locations
CSA C22.2 No. 250.0-08 - Luminaires
CSA C22.2 No. 250.13 - Light Emitting Diode (LED) Equipment for
Lighting Applications. |
| Area Classfiction | Division Ⅱ |
| Installation | NFPA70 |
| Certificate | 20170914-E491372 |
| Equipment Coding | Class Ⅰ Division 2, Groups A,B,C,D
UL 1598A
UL 1598 |
| Temperature Class | Rated power (W) | -40℃ ≤ Ta ≤ +50℃ | -40℃ ≤ Ta ≤ +45℃ | -40℃ ≤ Ta ≤ +40℃ |
| 120W-150W | T4 | T4A | / |
| UL Coding | Class Ⅰ |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5 or M25*1.5 and 3/4 NPT |
| UL Mark | The UL marking of this product applies to NEC 500.
The Equipment is declared to meet the provisions of the NEC 500 by
reason of the UL.
Type Examination and compliance with the Essential Health and
Safety Requirements. |
Applications:
Can be widely used for hazardous area class 1 division 2, where
flammable vapors, gases,ignitable dusts, fibers or flyings are
present; indoors or outdoors
1. Class I, Division 2, Groups A, B, C, D
2. Locations requiring continuous and consistent light levels in
extreme ambient temperatures
3. Areas requiring frequent on-and-off of lights
4. Where extremely corrosive, wet, dusty,hot and/or cold conditions
exist
5. Other potentially explosive industrial environments
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Class I, Division 2 Groups A,B,C,D |
| -40°C to 40°C | -40°C to 45°C | -40°C to 50°C |
| Ex-KPLB120*WM-UL-E | 100-277 AC(141-392 DC) | 16380 | 120 | 70 | Warm white | 3000±300 | T4A | T4A | T4 |
| Ex-KPLB120*NH-UL-E | 17640 | 120 | 70 | Natural white | 4000±300 | T4A | T4A | T4 |
| Ex-KPLB120*NH-UL-E | 17640 | 120 | 70 | Natural white | 5000±300 | T4A | T4A | T4 |
| Ex-KPLB120*CH-UL-E | 17640 | 120 | 70 | Cool white | 5700±300 | T4A | T4A | T4 |
| Ex-KPLB150*WM-UL-E | 21840 | 150 | 70 | Warm white | 3000±300 | T4A | T4A | T4 |
| Ex-KPLB150*NH-UL-E | 23520 | 150 | 70 | Natural white | 4000±300 | T4A | T4A | T4 |
| Ex-KPLB150*NH-UL-E | 23520 | 150 | 70 | Natural white | 5000±300 | T4A | T4A | T4 |
| Ex-KPLB150*CH-UL-E | 23520 | 150 | 70 | Cool white | 5700±300 | T4A | T4A | T4 |
Remarks:
1. * Stands for beam angle,including H1V1 / H4V4 / H5V5 / H6V6 /FW;
2. For Beam angle H1V1,H4V4 and H5V5,the luminous flux will be 15%
less;
3. For Beam angle FW the luminous flux will be 30% less.
