LED Hazardous light Zone 1 Explosion Proof Lighting 36W 48W 56W 72W
Swordfish series

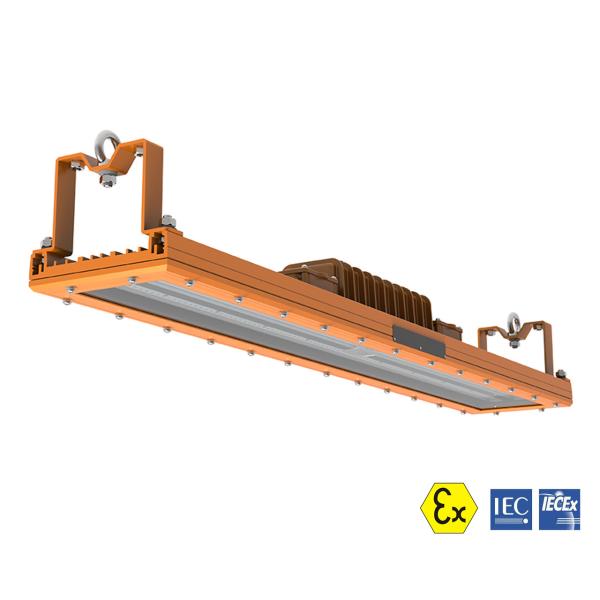

Ex-Swordfish Series Explosion proof lighting 36W 48W 56W 72W
Highlight:LED Hazardous light, LED Explosion proof strip light.
Features And Benefits:.
1. KHJ ATEX and IEC EX Certified LED Explosion proof linear light
is designed to replace 4ft fluorescent fixtures.
2. Copper-free aluminum alloy housing.
3. Strong tempered glass with thickness 10mm.
4. Osram High efficacy Led source, high lumen output.
5. Battery Backup version is available,Up to 3 hours in emergency
mode.
6. Low THD <10%,less interference.
7. All external hardware are stainless steel.
8. 5 Years warranty(excluding battery backup version).
Product Important Information:
| Type Of Protection | Ex d eb ,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN
60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22
Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | IECEx_TUR_16.0028X/TÜV 15 ATEX 7673 X |
| Equipment Coding | Ex d eb op is IIB T6 Gb ,Ex tb op is IIIC T80℃ Db Ex d eb op is IIC T6 Gb , Ex tb op is IIIC T80℃ Db |
| Temperature Class | Rated power(W) | -20℃ ≤ Ta ≤ +55℃ |
| Gas | Dust |
| 36W~72W | T6 | T80℃ |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and
Safety Requirements |
Applications:
The Ex-Swordfish series Explosion proof linear light fixture can be
used in a range of industrial hazardous locations: Pathway and
walkway in oil and gas industries, Onshore &Offshore platforms,
refining plants, petrochemical and chemical factories, tunnels,
Spray booth. etc.
Ordering information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KSF361200H7V7WM-E |
100-277 AC (141-392 DC) | 4536 | 36 | 82 | Warm white | 3000±300 |
T6 |
| Ex-KSF361200H7V7NH-E | 4914 | 36 | 70 | Natural white | 4000±300 |
| Ex-KSF361200H7V7NH-E | 4914 | 36 | 70 | Natural white | 5000±300 |
| Ex-KSF361200H7V7CH-E | 4914 | 36 | 70 | Cool white | 5700±300 |
| Ex-KSF481200H7V7WM-E | 6048 | 48 | 82 | Warm white | 3000±300 |
| Ex-KSF481200H7V7NH-E | 6552 | 48 | 70 | Natural white | 4000±300 |
| Ex-KSF481200H7V7NH-E | 6552 | 48 | 70 | Natural white | 5000±300 |
| Ex-KSF481200H7V7CH-E | 6552 | 48 | 70 | Cool white | 5700±300 |
| Ex-KSF561200H7V7WM-E | 7056 | 56 | 82 | Warm white | 3000±300 |
| Ex-KSF561200H7V7NH-E | 7644 | 56 | 70 | Natural white | 4000±300 |
| Ex-KSF561200H7V7NH-E | 7644 | 56 | 70 | Natural white | 5000±300 |
| Ex-KSF561200H7V7CH-E | 7644 | 56 | 70 | Cool white | 5700±300 |
| Ex-KSF721200H7V7WM-E | 9072 | 72 | 82 | Warm white | 3000±300 |
| Ex-KSF721200H7V7NH-E | 9828 | 72 | 70 | Natural white | 4000±300 |
| Ex-KSF721200H7V7NH-E | 9828 | 72 | 70 | Natural white | 5000±300 |
| Ex-KSF721200H7V7CH-E | 9828 | 72 | 70 | Cool white | 5700±300 |
