Tank Series 320W 400W 480W Zone 1 Explosion Proof Lighting Lifespan>50,000 Hours

This user manual covers the range of ATEX and IECEx Tank Series LED normal/emergency luminaire. These luminaires are

constructed with corrosion resistant epoxy coated aluminum alloy body and high impact resistance tempered glass

diffuser.

Tank Series LED are available from 320W to 480W, providing ideal solutions for a wide range of harsh and hazardous applications.

Features And Benefits:
1. High efficacy LED Source with long lifespan>100,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 6KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.
8. Dust proof structure design to avoid dust accumulation.

Product Important Information:

Type Of Protection	Ex db ,Ex tb
Protection Standards	(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction	Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1, Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation	(IEC)EN 60079-14
Certificate
Equipment Coding	II 2 G Ex db IIC T* Gb II 2 D Ex tb IIIC T* Db IP66
Temperature Class	Rated power (W)	-40℃ ≤ Ta ≤ +55℃
		Gas	Dust
	320W~480W	T5	T95℃
ATEx Coding	II 2 G / II 2 D
Ingress Protection	IP66 (IEC)EN 60529
Cable entry	M20*1.5,M25*1.5,3/4 NPT
CE Mark	The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements

Ordering Information:

Remarks:
1. The first * stands for Operating Voltage including default-100 - 277 VAC , D-347-480VAC ,E-20-30VAC.
2. The second * stands for Candela Distribution including H3V3,H5V5,H6V6.

Candela Distribution:

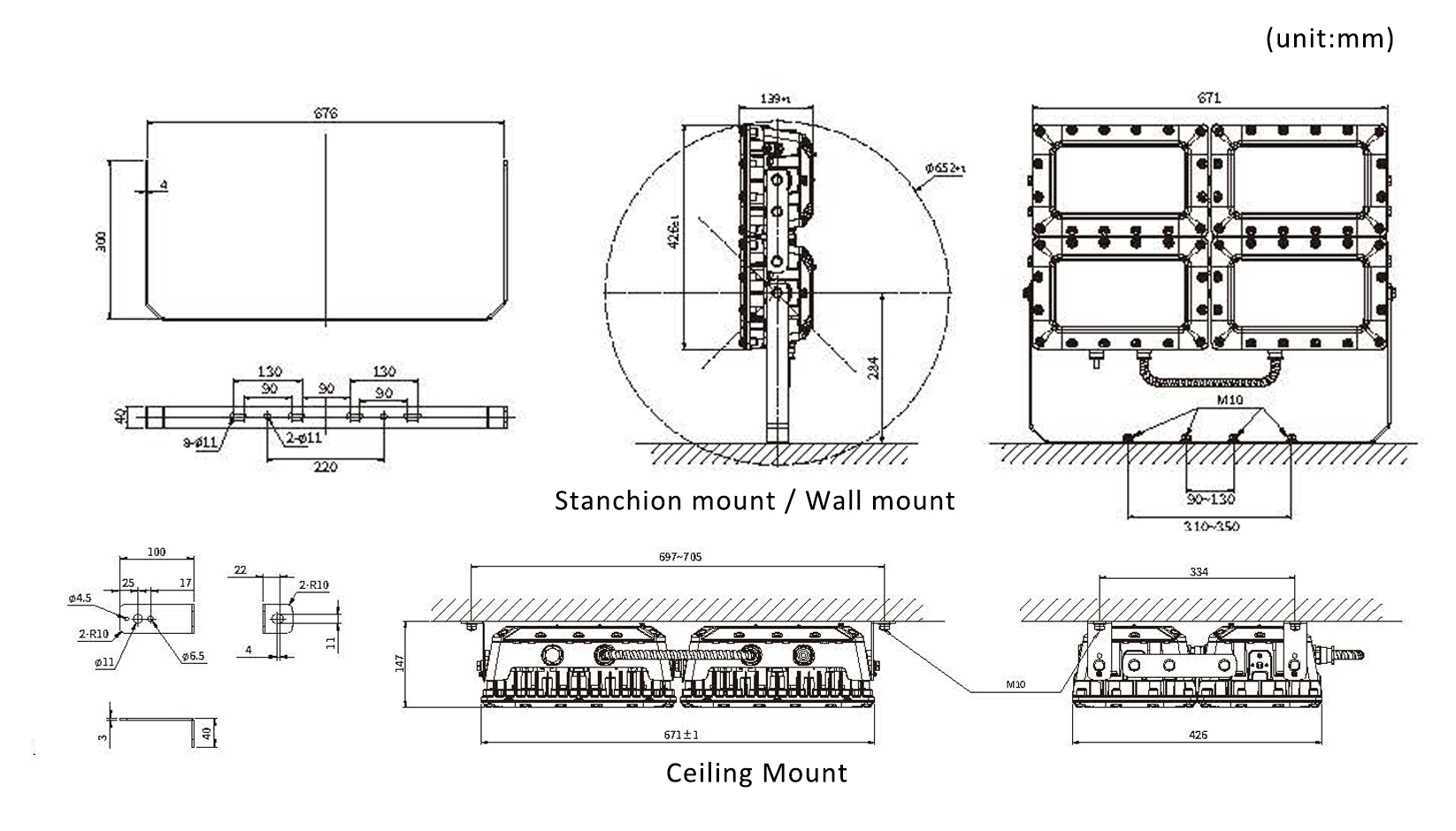

Installation Method:
