Frog Series 120W 150W Zone 1 Explosion Proof Lighting Luminaire
Efficacy 147m/W
This user manual covers the range of ATEX and IECEx Frog series LED
luminaire. These luminaires are constructed with corrosion
resistant epoxy coated die casting aluminum alloy body and high
impact resistance tempered glass diffuser.
Frog series LED are available from 120W to 150W, providing ideal
solutions for a wide range of harsh and hazardous applications.
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 5KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.
Product Important Information:
| Type Of Protection | Ex db,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN 60079-31, |
| Area Classification | Zone 1 and Zone 2 areas to (IEC)EN 60079-10-1 Zone 21 and Zone 22 areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | EPT 20 ATEX 3846 X |
| Equipment Coding | Ex d eb IIB T6 or T5 Gb Ex tb IIIC T80℃ or T95℃ Db -40℃ ≤ Ta ≤ +55℃ |
| ATEx Coding | II 2 G II 2 D |
| Ingress Protection | IP66 to (IEC)EN 60529 |
| Cable entry | M20*1.5 or M25*1.5 or 3/4-14 NPT(optional) |
CE Mark
| The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and
compliance with the Essential Health and Safety Requirements. |
Electrical Supplies:
| Luminaires size:Ø410*168mm |
| Voltage Range(AC) | 100~277VAC (standard) |
| Frequency Range(Hz) | 50/60Hz |
| Power Watts(W) | 120W | 150W |
| Standard Current Range(A) | 0.43~1.2 | 0.54~1.5 |
Luminaire Efficacy: 147lm/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/141-392 VDC
Power:120W,150W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:14.25Kg
Size:426*410*187mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2XNPT 3/4” (M20*1.5,M25*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

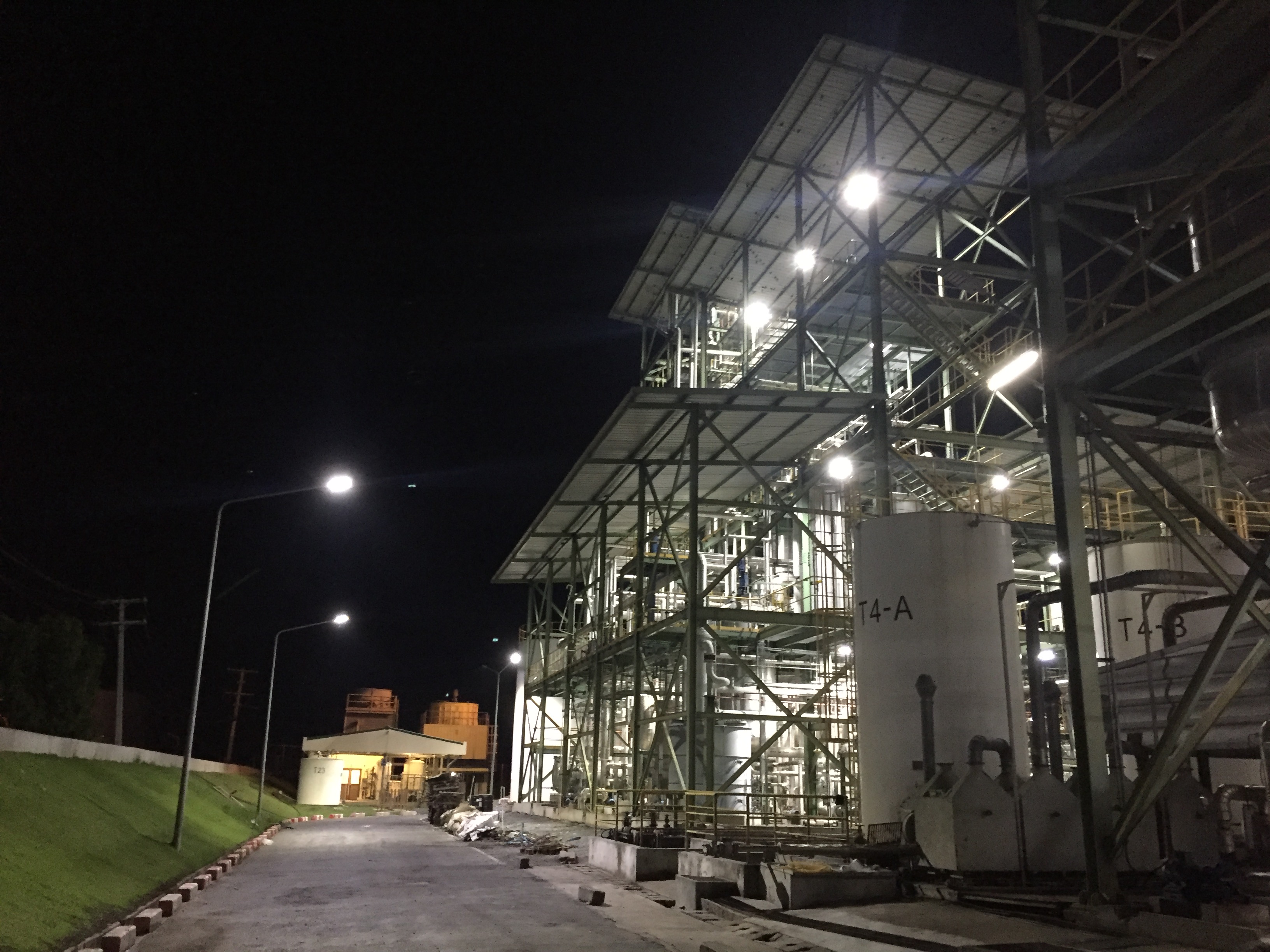

Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KF120*WM-E |
100-277 AC (141-392 DC) | 17010 | 120 | 70 | Warm white | 3000±300 | T6 |
| Ex-KF120*NH-E | 18270 | 120 | 70 | Natural white | 4000±300 | T6 |
| Ex-KF120*NH-E | 18270 | 120 | 70 | Natural white | 5000±300 | T6 |
| Ex-KF120*CH-E | 18270 | 120 | 70 | Cool white | 5700±300 | T6 |
| Ex-KF150*WM-E | 20475 | 150 | 70 | Warm white | 3000±300 | T5 |
| Ex-KF150*NH-E | 22050 | 150 | 70 | Natural white | 4000±300 | T5 |
| Ex-KF150*NH-E | 22050 | 150 | 70 | Natural white | 5000±300 | T5 |
| Ex-KF150*CH-E | 22050 | 150 | 70 | Cool white | 5700±300 | T5 |
Remarks:
1. * Stands for beam angle,including H1V1 / H4V4 / H5V5 / H6V6/FW.
2. For Beam angle H1V1,H4V4 and H5V5,the luminous flux will be 15%
less.
3. For Beam angle FW,the luminous flux will be 30% less.
Candela Distribution:
Installation Method:
