Swordfish Series 36W 48W 56W 72W Zone 1 Explosion Proof Lighting
Luminaire Efficacy 136.5lm/W
This user manual covers the range of ATEX and IECEx Swordfish
series LED normal/emergency luminaire. These luminaires are
constructed with corrosion resistant epoxy coated copper free
aluminum alloy body and high impact resistance tempered glass
diffuser.
900mm Swordfish series LED are available from 36W to 72W, providing
ideal solutions for a wide range of harsh and hazardous
applications.
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 5KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.
Product Important Information:
| Type Of Protection | Ex d eb ,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN
60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22
Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | IECEx_TUR_16.0028X/TÜV 15 ATEX 7673 X |
| Equipment Coding | Ex d eb op is IIB T6 Gb ,Ex tb op is IIIC T80℃ Db Ex d eb op is IIC T6 Gb , Ex tb op is IIIC T80℃ Db |
| Temperature Class | Rated power (W) | -20℃ ≤ Ta ≤ +55℃ |
| Gas | Dust |
| 36W~72W | T6 | T80℃ |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and
Safety Requirements |
Electrical Supplies:
| Size:900mm |
| Voltage Range(AC) | 100~277VAC |
| Frequency Range(Hz) | 50/60Hz |
| Power Watts(W) | 36W | 48W | 56W | 72W |
| Standard Current Range(A) | 0.12~0.36 | 0.17~0.48 | 0.2~0.56 | 0.25~0.72 |
| Emergency parameters |
| Voltage Range (AC) | 220~240VAC |
| Battery | 9.6V 2.2Ah, Ni-Cd |
| Emergency Duration | ≥180minute |
| Emergency power | 5W |
| Charge time | ≥24hours |
Lifespan:>50,000 hours
Luminaire Efficacy: 136.5m/W
Operating Voltage: 100-277 VAC/24-48 VAC/10-30 VDC/24-48 VDC/141-392 VDC
Power:36W,48W,56W,72W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:9.2Kg
Size:900*136*124mm
Ambient Temperature: -20℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2XNPT 3/4” (M20*1.5 ,M25*1.5are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

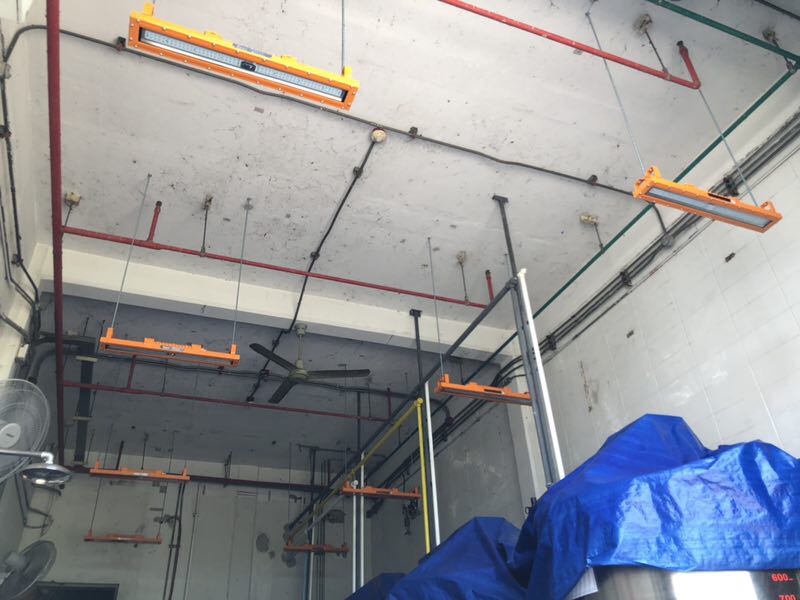

Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KSF36*1200H7V7WM-U-E |
100-277 AC (141-392 DC) | 4536 | 36 | 82 | Warm white | 3000±300 |
T6 |
| Ex-KSF36*1200H7V7NH-U-E | 4914 | 36 | 70 | Natural white | 4000±300 |
| Ex-KSF36*1200H7V7NH-U-E | 4914 | 36 | 70 | Natural white | 5000±300 |
| Ex-KSF36*1200H7V7CH-U-E | 4914 | 36 | 70 | Cool white | 5700±300 |
| Ex-KSF48*1200H7V7WM-U-E | 6048 | 48 | 82 | Warm white | 3000±300 |
| Ex-KSF48*1200H7V7NH-U-E | 6552 | 48 | 70 | Natural white | 4000±300 |
| Ex-KSF48*1200H7V7NH-U-E | 6552 | 48 | 70 | Natural white | 5000±300 |
| Ex-KSF48*1200H7V7CH-U-E | 6552 | 48 | 70 | Cool white | 5700±300 |
| Ex-KSF56*1200H7V7WM-U-E | 7056 | 56 | 82 | Warm white | 3000±300 |
| Ex-KSF56*1200H7V7NH-U-E | 7644 | 56 | 70 | Natural white | 4000±300 |
| Ex-KSF56*1200H7V7NH-U-E | 7644 | 56 | 70 | Natural white | 5000±300 |
| Ex-KSF56*1200H7V7CH-U-E | 7644 | 56 | 70 | Cool white | 5700±300 |
| Ex-KSF72*1200H7V7WM-U-E | 9072 | 72 | 82 | Warm white | 3000±300 |
| Ex-KSF72*1200H7V7NH-U-E | 9828 | 72 | 70 | Natural white | 4000±300 |
| Ex-KSF72*1200H7V7NH-U-E | 9828 | 72 | 70 | Natural white | 5000±300 |
| Ex-KSF72*1200H7V7CH-U-E | 9828 | 72 | 70 | Cool white | 5700±300 |
Remarks:
1. *Stands for Operating Voltage, including Default
-AC-100~277V,A-AC/DC 24~48V,B-DC 10~30V.
Candela Distribution:
Installation Method:
