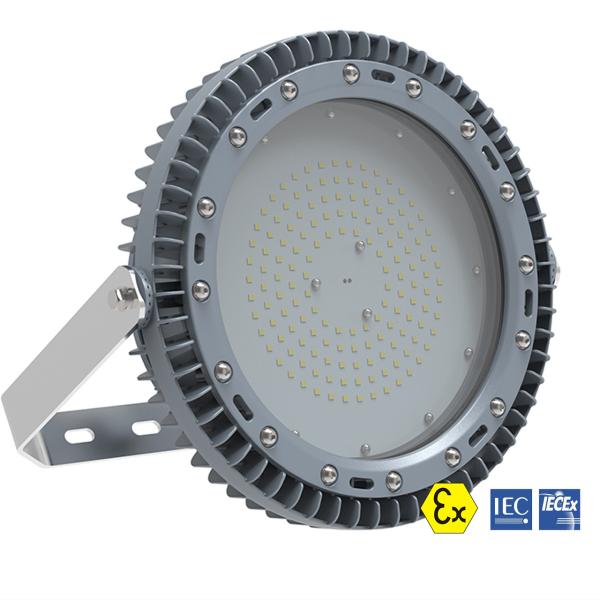

ATEX Certified Zone 1 Explosion Proof Lighting Sealion series LED
200W 240W 300W
Explosion Proof Lighting Sealion series 200W 240W 300W
Highlight: Explosion proof lighting, Explosion proof high bay light.
Features And Benefits:
1. High power and efficient LED Explosion proof lighting consume at
least 50% less energy than traditional HID or HPS lighting sources.
2. Able to replace the conventional light fittings up to 1000W.
3. Durable powder coated die-cast aluminum housing plus strong
tempered glass, Shock and vibration-resistant.
4. Separated Led source compartment and Led driver compartment,
perfect thermal management design.
5. Long-life LED technology, more than 50,000 hours.
6. Reliable LED driver from Meanwell.
7. Stainless steel swivel bracket with adjustable setting angle.
8. Ambient temperature from -40℃ to 55℃.
9. 5 Years performance warranty.
Product Important Information:
| Type Of Protection | Ex d,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN
60079-18, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22
Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | TÜV 20 ATEX 8608 X IECEx TUR 20.0068X |
| Equipment Coding | II 2 G Ex db IIC T4/T5 Gb II 2 D Ex tb IIIC T115°C/105°C/T95°C Db IP66 |
| Temperature Class | Rated power (W) | -20℃ ≤ Ta ≤ +55℃ with Battery | -40℃ ≤ Ta ≤ +55℃ | -40℃ ≤ Ta ≤ +65℃ |
| Gas | Dust | Gas | Dust | Gas | Dust |
| 200W | T5 | T95˚C | T5 | T95˚C | / | / |
| 240W | T5 | T95˚C | T5 | T95˚C | / | / |
| 300W | / | / | T4 | T115˚C | / | / |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and
compliance with the Essential Health and Safety Requirements |
Applications:
The Explosion proof lighting Sealion series are Suitable for Zone
1&Zone 2 and Zone 21&Zone 22 hazardous and harsh areas:
Onshore refineries and Petrochemical plants.
Offshore platforms
Oil and Gas terminals
Jetty ports
Shipyards
Power generation plants
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| -40℃-+55℃ | -40℃-+65℃ |
| Ex-KSL200*WM-E |
100~277 AC(141~ 392 DC) | 26000 | 200 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL200*NH-E | 29400 | 200 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL200*NH-E | 29400 | 200 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL200*CH-E | 29400 | 200 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL240*WM-E | 31200 | 240 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL240*NH-E | 35280 | 240 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL240*NH-E | 35280 | 240 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL240*CH-E | 35280 | 240 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL300*WM-E | 39000 | 300 | 70 | Warm white | 3000±300 | T4 | / |
| Ex-KSL300*NH-E | 44100 | 300 | 70 | Natural white | 4000±300 | T4 | / |
| Ex-KSL300*NH-E | 44100 | 300 | 70 | Natural white | 5000±300 | T4 | / |
| Ex-KSL300*CH-E | 44100 | 300 | 70 | Cool white | 5700±300 | T4 | / |
Remarks:
1. *Stands for beam angle , including H4V4 / H5V5 / H6V6；
2. For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
