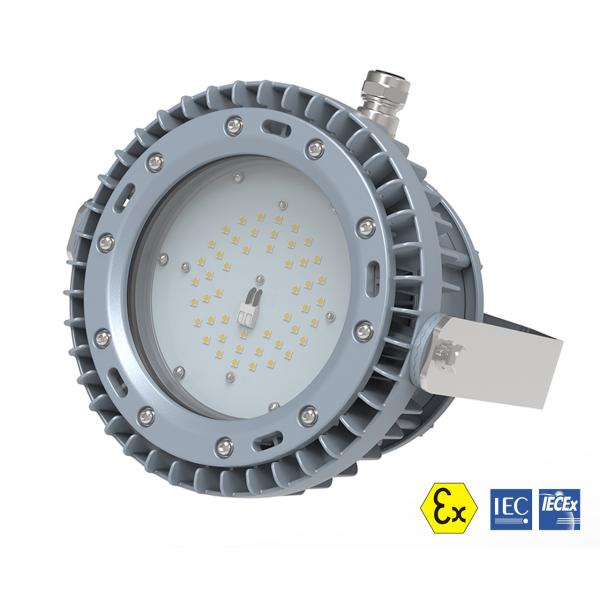

Oil Industrial Zone 1 Explosion Proof Lighting 30W 45W Energy Saving

Ask Lasest Price
Brand Name :	KHJ
Model Number :	Ex-KSL30,Ex-KSL45,Ex-KSL60,Ex-KSL80
Certification :	ATEX,IECEx,CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	400pcs per day
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

Oil Industrial Zone 1 Explosion Proof Lighting 30W 45W Energy Saving

Explosion Proof Lighting Zone 1 30W 45W 60W 80W high quality Sealion Series

Hazardous Area & Explosion Proof LED lighting

Zone 1

30W 45W 60W 80W

Sealion Series led light

Highlight: LED Explosion Proof Lighting Zone 1, explosion proof LED lights.

Features And Benefits:

1. Energy saving. Reduce the number of luminaires needed, providing excellent luminaries efficacy more light where you need it.

2. High efficacy LED Source with long lifespan>50,000 hours.

3. Corrosion resistant epoxy coated die casting aluminum alloy body and high impact resistance tempered glass diffuser.

4. ATEX /IECEx certified for Zone 1, 2, 21 and 22.

5. Optional luminous intensity distribution for different applications.

6. Wire guard available.

7. Ambient temperature from -40℃to 55℃.

Product Important Information:

Type Of Protection	Ex d,Ex tb
Protection Standards	(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN 60079-18, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction	Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2
Installation	(IEC)EN 60079-14
Certificate	TÜV 20 ATEX 8608 X IECEx TUR 20.0068X
Equipment Coding	II 2 G Ex db IIC T4/T5 Gb II 2 D Ex tb IIIC T115°C/105°C/T95°C Db IP66
Temperature Class	Rated power (W)	-20℃≤Ta≤+55℃ with Battery		-40℃≤Ta≤+55℃		-40℃≤Ta≤ +65℃
	Rated power (W)	Gas	Dust	Gas	Dust	Gas	Dust
	30W	T5	T95˚C	T5	T95˚C	T4	T105˚C
	45W	T5	T95˚C	T5	T95˚C	T4	T105˚C
	60W	T5	T95˚C	T5	T95˚C	T4	T105˚C
	80W	T5	T95˚C	T5	T95˚C	/	/
ATEx Coding	II 2 G / II 2 D
Ingress Protection	IP66 (IEC)EN 60529
Cable entry	M201.5,M251.5,3/4 NPT
CE Mark	The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements

Applications:

Explosion Proof Lighting Zone 1 suitable for onshore and offshore oil, gas, petrochemicals and process industries etc.

Ordering information:

P/N	Operating Voltage(V)	Luminous Flux(lm)	Power (W)	CRI	Color Temp.	CCT(K)	Temp. Classification
P/N	Operating Voltage(V)	Luminous Flux(lm)	Power (W)	CRI	Color Temp.	CCT(K)	-40℃-+55℃	-40℃-+65℃
Ex-KSL30*WM-E	100~277 AC (141~ 392DC)	3900	30	70	Warm white	3000±300	T5	T4
Ex-KSL30*NH-E		4410	30	70	Natural white	4000±300	T5	T4
Ex-KSL30*NH-E		4410	30	70	Natural white	5000±300	T5	T4
Ex-KSL30*CH-E		4410	30	70	Cool white	5700±300	T5	T4
Ex-KSL45*WM-E		5850	45	70	Warm white	3000±300	T5	T4
Ex-KSL45*NH-E		6615	45	70	Natural white	4000±300	T5	T4
Ex-KSL45*NH-E		6615	45	70	Natural white	5000±300	T5	T4
Ex-KSL45*CH-E		6615	45	70	Cool white	5700±300	T5	T4
Ex-KSL60*WM-E		7800	60	70	Warm white	3000±300	T5	T4
Ex-KSL60*NH-E		8820	60	70	Natural white	4000±300	T5	T4
Ex-KSL60*NH-E		8820	60	70	Natural white	5000±300	T5	T4
Ex-KSL60*CH-E		8820	60	70	Cool white	5700±300	T5	T4
Ex-KSL80*WM-E		10400	80	70	Warm white	3000±300	T5	T4
Ex-KSL80*NH-E		11760	80	70	Natural white	4000±300	T5	T4
Ex-KSL80*NH-E		11760	80	70	Natural white	5000±300	T5	T4
Ex-KSL80*CH-E		11760	80	70	Cool white	5700±300	T5	T4

Remarks:

1. *Stands for beam angle , including H4V4 / H5V5 / H6V6.

2. For beam angle H4V4 and H5V5,the luminous flux will be 15% less.

Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.

4. Various designs.

5. Accept small orders.
