Copper Free Aluminum Alloy Enclosure Hazardous Location Fixtures
Zone 1 Explosion Proof Lighting 36W 48W 56W 72W upgrade version

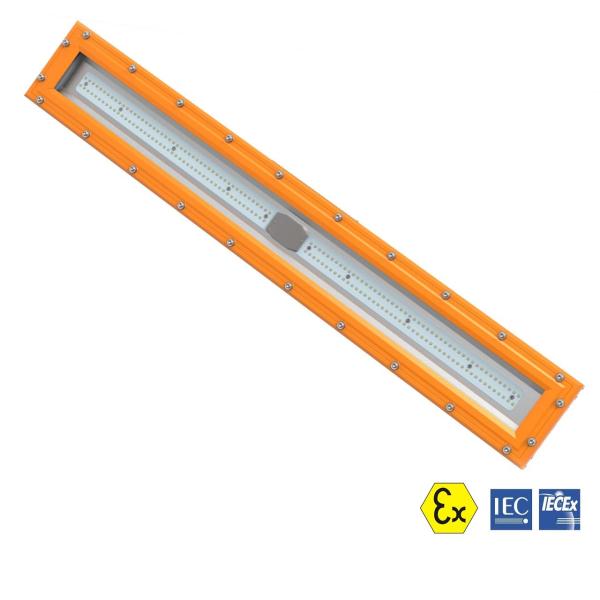

Explosion proof light fitting Ex-Swordfish Series 36W 48W 56W 72W
Highlight:LED Zone 1 Explosion proof lighting.
Features And Benefits:
1. Ideal to replace the traditional Explosion-proof Fluorescent
Light Fitting 2X36W and 2x58W.
2. Copper free aluminum alloy body with powder coated,
anti-corrosion.
3. Special heat dissipating design.
4. Excellent durability and resistance to vibration and impacts.
5. High efficient LED Technology, Osram LED Source up to 50,000
hours.
6. With 2 cable entries for loop-in loop-out installation.
7. Battery Backup version is available, Up to 3 hours in emergency
mode.
8. 5 Years warranty(excluding battery backup version).
Product Important Information:
| Type Of Protection | Ex d eb ,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN
60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22
Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | IECEx_TUR_16.0028X/TÜV 15 ATEX 7673 X |
| Equipment Coding | □Ex d eb op is IIB T6 Gb ,Ex tb op is IIIC T80℃ Db □Ex d eb op is IIC T6 Gb , Ex tb op is IIIC T80℃ Db |
| Temperature Class | Rated power (W) | -20℃ ≤ Ta ≤ +55℃ |
| Gas | Dust |
| 36W~72W | T6 | T80℃ |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and
compliance with the Essential Health and Safety Requirements |
Applications:
The Swordfish series Explosion proof Linear LED fixture for
hazardous environments include:
1. Drilling rigs
2. Offshore rigs
3. Petrochemical facilities
4. Refinery facilities
5. Chemical plants
6. Waste water facilities
7. Fuel storage
8. Chemical storage
9. Food Industry
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KSF36*1200H7V7WM-U-E |
100-277 AC (141-392 DC) | 4536 | 36 | 82 | Warm white | 3000±300 |
T6 |
| Ex-KSF36*1200H7V7NH-U-E | 4914 | 36 | 70 | Natural white | 4000±300 |
| Ex-KSF36*1200H7V7NH-U-E | 4914 | 36 | 70 | Natural white | 5000±300 |
| Ex-KSF36*1200H7V7CH-U-E | 4914 | 36 | 70 | Cool white | 5700±300 |
| Ex-KSF48*1200H7V7WM-U-E | 6048 | 48 | 82 | Warm white | 3000±300 |
| Ex-KSF48*1200H7V7NH-U-E | 6552 | 48 | 70 | Natural white | 4000±300 |
| Ex-KSF48*1200H7V7NH-U-E | 6552 | 48 | 70 | Natural white | 5000±300 |
| Ex-KSF48*1200H7V7CH-U-E | 6552 | 48 | 70 | Cool white | 5700±300 |
| Ex-KSF56*1200H7V7WM-U-E | 7056 | 56 | 82 | Warm white | 3000±300 |
| Ex-KSF56*1200H7V7NH-U-E | 7644 | 56 | 70 | Natural white | 4000±300 |
| Ex-KSF56*1200H7V7NH-U-E | 7644 | 56 | 70 | Natural white | 5000±300 |
| Ex-KSF56*1200H7V7CH-U-E | 7644 | 56 | 70 | Cool white | 5700±300 |
| Ex-KSF72*1200H7V7WM-U-E | 9072 | 72 | 82 | Warm white | 3000±300 |
| Ex-KSF72*1200H7V7NH-U-E | 9828 | 72 | 70 | Natural white | 4000±300 |
| Ex-KSF72*1200H7V7NH-U-E | 9828 | 72 | 70 | Natural white | 5000±300 |
| Ex-KSF72*1200H7V7CH-U-E | 9828 | 72 | 70 | Cool white | 5700±300 |
