IECEX Certified Dimmable Atex Portable Lighting 5W-60W Rechargeable

Ask Lasest Price
Brand Name :	KHJ
Model Number :	Ex-KSTB24
Certification :	ATEX,IECEx,CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	400pcs per day
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

IECEX Certified Dimmable Atex Portable Lighting 5W-60W Rechargeable

IEC EX Certified Dimmable Portable Explosion proof LED ATEX lighting 5W-60W rechargeable

Explosion Prof LED Work Light Satun series 5W-60W Dimmable

Highlight: Explosion proof led mobile light Portable, dimmable and rechargeable for oil and gas industries

Features And Benefits:

1. ATEX & IEC EX approved LED explosion proof rechargeable light for safe use in potentially explosive atmospheres work sites.

2. Built with a DIMMER, Dimmable from 5W to 60W.

3. Highly reliable Lead-acid battery with lifespan 300 cycles.

4. Battery duration time range from 4 to 15 hours.

5. Fitted with a main on / off switch to increase battery life.

6. Battery capacity checking function.

7. IP54 Ingress protection.

8. Ambient temperature from -20℃ to 55℃.

Product Important Information:

Type Of Protection	Ex d e
Protection Standards	(IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction	Zone1 & Zone 2 Areas to (IEC)EN 60079-10-1,
Installation	(IEC)EN 60079-14
Certificate	ATEx	ECM 17 ATEX-B TD45
	IECEx	IECEx CQM 16.0005X
Equipment Coding	Ex d e IIC T5 Gb IP54
Temperature Class	-20℃ ≤ Ta ≤ +55℃
ATEx Coding	II 2 G
Ingress Protection	IP54 (IEC)EN 60529
CE Mark	The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements

Applications:

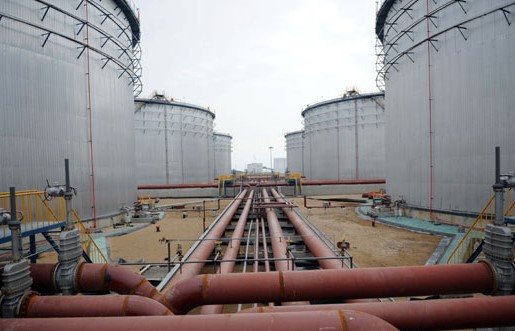

This Explosion proof mobile led light Built for a variety of applications ranging from Cleaning oil tanks or vessels, plant turn-around, offshore platforms, marine work areas, paint booths and other work sites in hazardous areas etc.

Ordering information

P/N	Operating Voltage(V)	Color Temp.	CCT(K)	Power (W)	CRI	Luminous Flux(lm)	Temp. Classification
							-20℃~+55℃
Ex-KSTB24V12FFWM-U-E	100~277 AC (141~392 DC)	Warm white	3000±300	15	70	1740	T5
				30	70	3480
				60	70	6950
Ex-KSTB24V12FFNH-U-E		Natural white	4000±300	15	70	1890
				30	70	3780
				60	70	7560
Ex-KSTB24V12FFNH-U-E		Natural white	5000±300	15	70	1890
				30	70	3780
				60	70	7560
Ex-KSTB24V12FFCH-U-E		Cool white	5700±300	15	70	1890
				30	70	3780
				60	70	7560

What are our advantages?

1.Professional lighting manufacturer for more than 10 years.
2. Gold supplier.

Competitive advantages of our factory:

1. Very competitive price and high quality control.

2. Timely delivery.

3. Environmentally friendly products.
