1. Ultra long-life LED technology, more than 50,000 hours.
2. High efficiency LED power supply.
3. Robust aluminium housing and strong tempered glass.
4. Excellent marine anti-corrosion performance, suitable for use in
humid places and marine areas.
5. Low maintenance.
6. Surge protection 5KV.
Product Important Information:
| Type Of Protection | Ex nR,Ex tc |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-15,(IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 2 Areas to (IEC)EN 60079-10-1, Zone 22 Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | TÜV 15 ATEX 7672 X |
| Equipment Coding | Ex nR IIC T5 or T6 Gc Ex tc IIIC T95℃ or T85℃ Dc |
| Temperature Class | Rated Power | Rated Voltage | -40℃ ≤ Ta ≤ +65℃ | -40℃ ≤ Ta ≤ +55℃ |
| Gas | Dust | Gas | Dust |
| 80W | 100~277VAC 50Hz/60Hz | T5 | T95℃ | T6 | T85℃ |
| 100W | / | / | T5 | T85℃ |
| 120W |
| 150W |
| ATEx Coding |  II 3 G / II 3 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5 or M25*1.5 and 3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and
Safety Requirements |

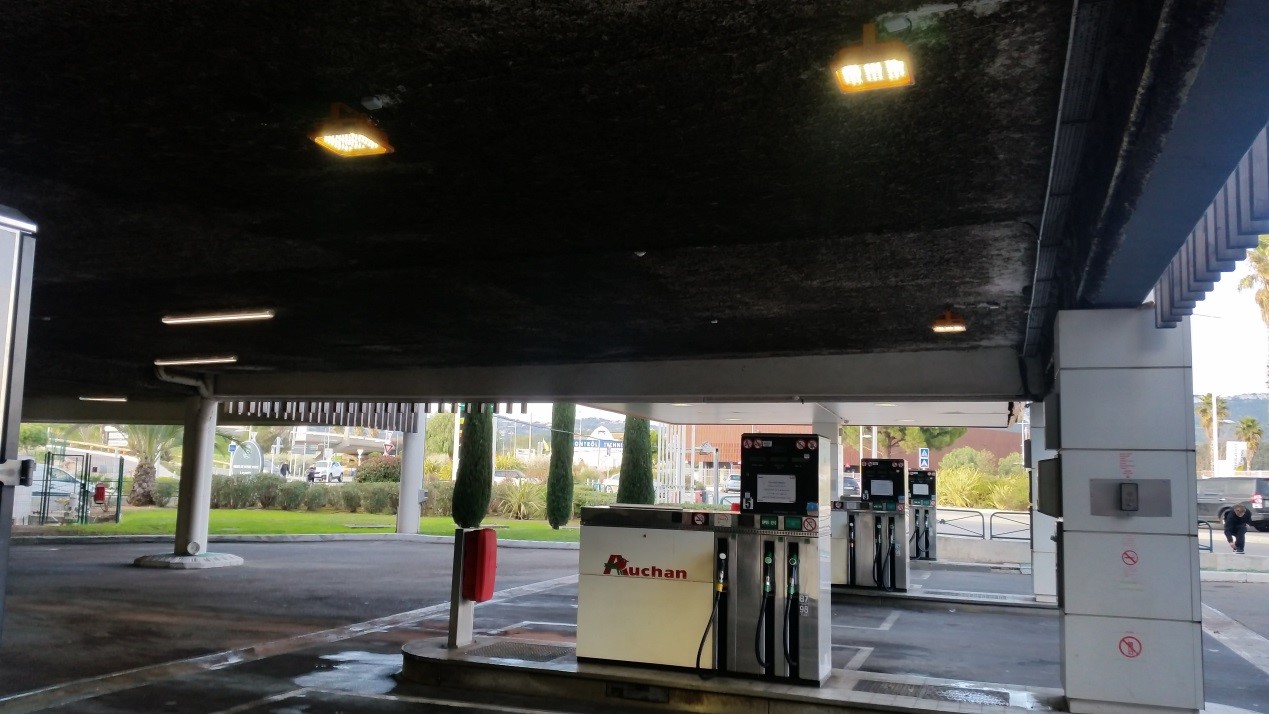

Applications:
Ex Brown Bear series LED Explosion Proof Floodlight is applicable
fo zone 2 applications , or gas area, restricted area or heavy
industrial processing equipment area, drilling platform and other
coastal or offshore dangerous areas, Such as port, ship, oil,
petrochemical, oil depot.
Ordering information:
P/N |
Operating Voltage(V) |
Luminous Flux(lm) |
Power (W) |
CRI |
Color Temp. |
CCT(K) | Temp. Classification |
| -40℃-+55℃ | -40℃-+65℃ |
| Ex-KBB80*WM-E |
100-277 AC (141-392 DC) | 10500 | 80 | 70 | Warm white | 3000±300 | T6 | T5 |
| Ex-KBB80*NH-E | 11340 | 80 | 70 | Natural white | 4000±300 | T6 | T5 |
| Ex-KBB80*NH-E | 11340 | 80 | 70 | Natural white | 5000±300 | T6 | T5 |
| Ex-KBB80*CH-E | 11340 | 80 | 70 | Cool white | 5700±300 | T6 | T5 |
| Ex-KBB100*WM-E | 13125 | 100 | 70 | Warm white | 3000±300 | T6 | / |
| Ex-KBB100*NH-E | 14175 | 100 | 70 | Natural white | 4000±300 | T6 | / |
| Ex-KBB100*NH-E | 14175 | 100 | 70 | Natural white | 5000±300 | T6 | / |
| Ex-KBB100*CH-E | 14175 | 100 | 70 | Cool white | 5700±300 | T6 | / |
| Ex-KBB120*WM-E | 15750 | 120 | 70 | Warm white | 3000±300 | T5 | / |
| Ex-KBB120*NH-E | 17010 | 120 | 70 | Natural white | 4000±300 | T5 | / |
| Ex-KBB120*NH-E | 17010 | 120 | 70 | Natural white | 5000±300 | T5 | / |
| Ex-KBB120*CH-E | 17010 | 120 | 70 | Cool white | 5700±300 | T5 | / |
| Ex-KBB150*WM-E | 19687 | 150 | 70 | Warm white | 3000±300 | T5 | / |
| Ex-KBB150*NH-E | 21262 | 150 | 70 | Natural white | 4000±300 | T5 | / |
| Ex-KBB150*NH-E | 21262 | 150 | 70 | Natural white | 5000±300 | T5 | / |
| Ex-KBB150*CH-E | 21262 | 150 | 70 | Cool white | 5700±300 | T5 | / |
Remarks:
1. * Stands for beam angle,including H5V5 / H6V6/FW.
2. For Beam angle H5V5,the luminous flux will be 15% less.
3. For Beam angle FW,the luminous flux will be 30% less.
