Tank Series Four Luminaires Assembly ATEX & IECEx Certified LED
Explosion Proof Flood Light Hazardous Area
This user manual covers the range of ATEX and IECEx Tank Series LED
normal/emergency luminaire. These luminaires are constructed with
corrosion resistant epoxy coated aluminum alloy body and high
impact resistance tempered glass diffuser.
Tank Series Four Luminaires Assembly LED are available from 320W to
480W, providing ideal solutions for a wide range of harsh and
hazardous applications.
Features And Benefits:
1. High efficacy LED Source with long lifespan>100,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 6KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.
8. Dust proof structure design to avoid dust accumulation.
Product Important Information:
| Type Of Protection | Ex db ,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN
60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1, Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | |
| Equipment Coding | II 2 G Ex db IIC T* Gb II 2 D Ex tb IIIC T* Db IP66 |
| Temperature Class | Rated power (W) | -40℃ ≤ Ta ≤ +55℃ |
| Gas | Dust |
| 80W~480W | T5 | T95℃ |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and
Safety Requirements |
Electrical Supplies:
| size:640*348*145mm |
| Voltage Range(AC) | 100-277VAC (standard) |
| Frequency Range(Hz) | 50/60Hz |
| Power Watts(W) | 240W | 300W | 360W |
| Standard Current Range(A) | 0.86~2.4 | 1.08~3.0 | 1.3~3.6 |

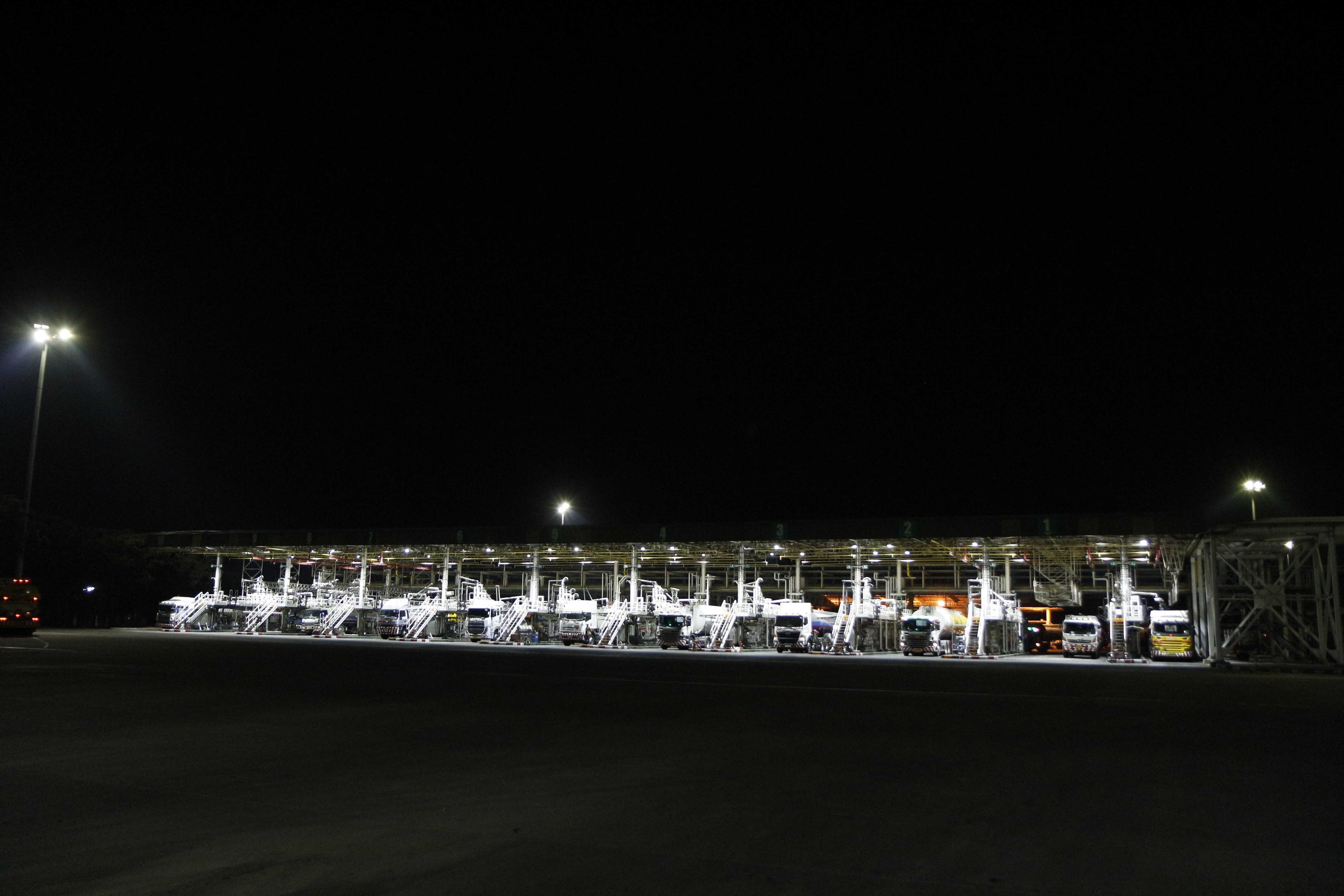

Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KTK320**CH-S4-E |
100-277 VAC (141-392 VDC) | 46400 |
320 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK320**NH-S4-E | 46400 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK320**NH-S4-E | 46400 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK320 **WM-S4-E | 41760 | 70 | Warm white | 3000±300k | T5 |
| Ex-KTK400**CH-S4-E | 58054 |
400 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK400**NH-S4-E | 58054 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK400**NH-S4-E | 58054 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK400**WM-S4-E | 52248 | 70 | Warm white | 3000±300k | T5 |
| Ex-KTK480**CH-S4-E | 69120 |
480 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK480**NH-S4-E | 69120 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK480**NH-S4-E | 69120 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK480**WM-S4-E | 62208 | 70 | Warm white | 3000±300k | T5 |
Remarks:
1.The first * stands for Operating Voltage including default-100 -
277 VAC , D-347-480VAC ,E-20-30VAC.
2.The second * stands for Candela Distribution including
H3V3,H5V5,H6V6.
Cleaning of luminaire:
The complete luminaire (without disassemble) can be cleaned with
neutral water solution. After cleaning, rinse or wipe dry with
clean water.
It is forbidden to use any chemical or hydrocarbon solvent cleaner
to clean the diffuser, otherwise serious damage may be caused.
Please clean the luminaire once a year if it is used under dust
environment.
Disposal of Material:
Disposal of the luminaire as waste should be carried out in
accordance with national regulations. Any disposal must satisfy the
requirements of the WEEE directive [2012/19/EU] and therefore must
not be treated as commercial waste. The unit is mainly made from
incombustible materials. The control gear contains plastic, resin
and electronic components. All electrical components may give off
noxious fumes if incinerated.
Transportation:
Weatherproof measures should be taken during transportation.
It is strictly forbidden to load and unload violently, and it is
strictly forbidden to drop and roll from high altitude, so as to
prevent mechanical damage.
Storage:
The luminaire should be stored in ventilated, non-dropping and
non-liquid warehouse at the temperature of -20℃ to +40℃ and
relative humidity ≤95%RH.
The surroundings should be kept from corrosive gases which may
damage metal and insulation.
