Jellyfish Series 80W 100W 120W 150W Industrial LED Flood light
Power Factor ＞ 0.98
Features And Benefits:
1. High efficacy LED Source.
2. Lifespan>50,000 hours.
3. 5-year performance warranty.
4. Low THD around 10%,Less interference.
5. 5KV Surge Protection.
6. Robust aluminium housing and strong tempered glass.
7. Vibration and shock resistant.
8. Low maintenance.
Specifications:
Certificate:CE,RoHS
Executive Standard:
| EN 55015:2006+A1:2007+A2:2009 | EN 61547:2009 | EN 61000-3-2:2006+A1:2009+A2:2009 |
| EN 61000-3-3:2008 | EN 60598-2-5:1998 | EN 60598-1:2008 |
| EPA3050B:1996 | EN1122B:2001 | EPA3052:1996 |
| EPA3060A:1996 | EPA7196A:1992 | EPA3540C:1996 |
| EPA8270D:2007 | IEC 62321:2008 | |
Luminaire Efficacy: 142m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC,141-392 VDC
Power:80W/100W/120W/150W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:4.6Kg
Size:φ 380*128mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 1XM16X1.5,equipped with 1 meter cable
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) |
| KJF80*WM-E |
100~277 AC (141~392 DC) | 10500 | 80 | 70 | Warm white | 3000±300 |
| KJF80*NH-E | 11340 | 80 | 70 | Natural white | 4000±300 |
| KJF80*NH-E | 11340 | 80 | 70 | Natural white | 5000±300 |
| KJF80*CH-E | 11340 | 80 | 70 | Cool white | 5700±300 |
| KJF100*WM-E | 13125 | 100 | 70 | Warm white | 3000±300 |
| KJF100*NH-E | 14175 | 100 | 70 | Natural white | 4000±300 |
| KJF100*NH-E | 14175 | 100 | 70 | Natural white | 5000±300 |
| KJF100*CH-E | 14175 | 100 | 70 | Cool white | 5700±300 |
| KJF120*WM-E | 15750 | 120 | 70 | Warm white | 3000±300 |
| KJF120*NH-E | 17010 | 120 | 70 | Natural white | 4000±300 |
| KJF120*NH-E | 17010 | 120 | 70 | Natural white | 5000±300 |
| KJF120*CH-E | 17010 | 120 | 70 | Cool white | 5700±300 |
| KJF150*WM-E | 19687 | 150 | 70 | Warm white | 3000±300 |
| KJF150*NH-E | 21262 | 150 | 70 | Natural white | 4000±300 |
| KJF150*NH-E | 21262 | 150 | 70 | Natural white | 5000±300 |
| KJF150*CH-E | 21262 | 150 | 70 | Cool white | 5700±300 |
Remarks:
1.*Stands for candela distribution, including H1V1 / H4V4/H5V5 /
H6V6/FW.
2.For beam angle H1V1/H4V4/H5V5,the luminous flux will be 8% less;
3.For beam angle FW,the luminous flux will be 25% less.
Candela Distribution:

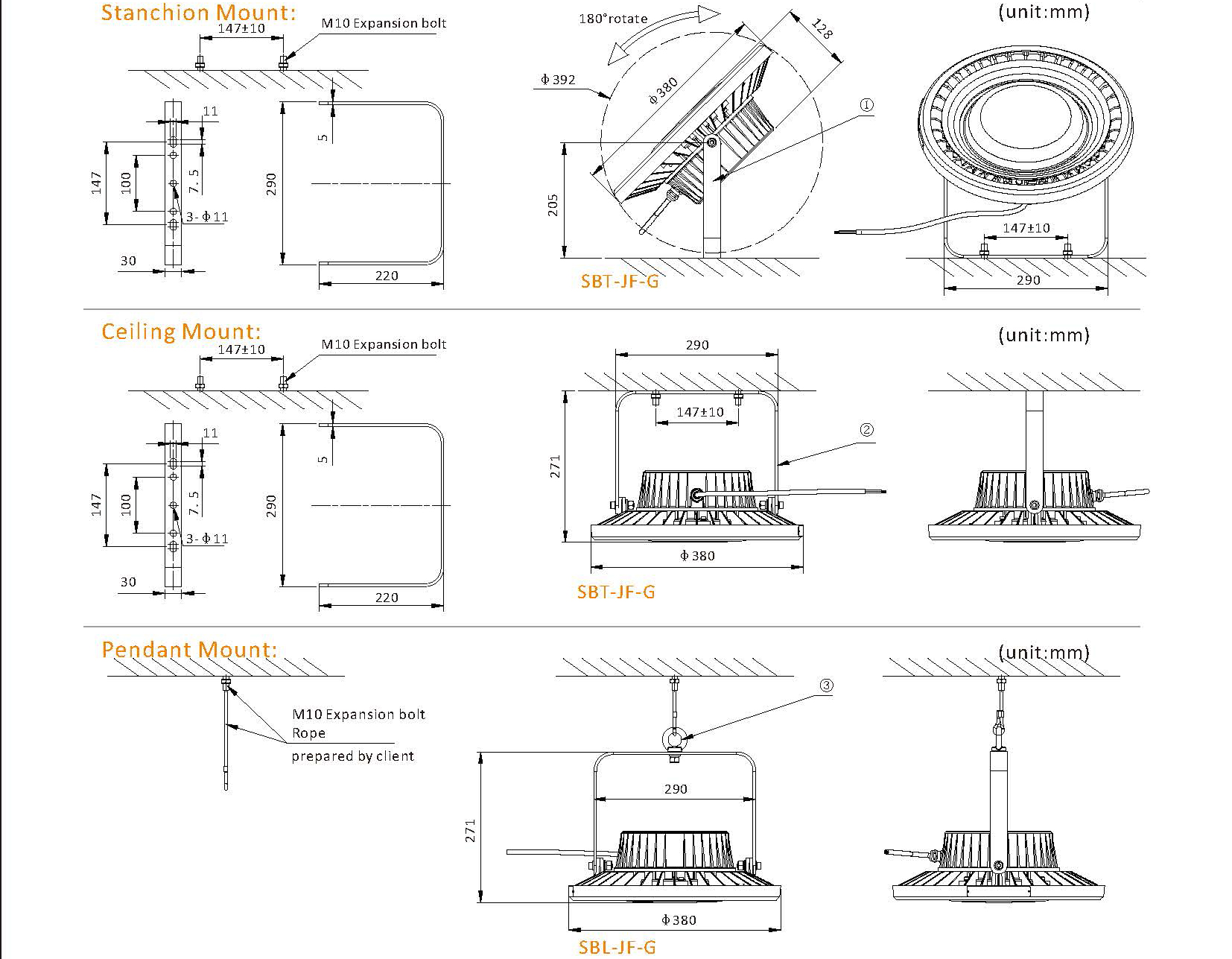

Installation Method:
