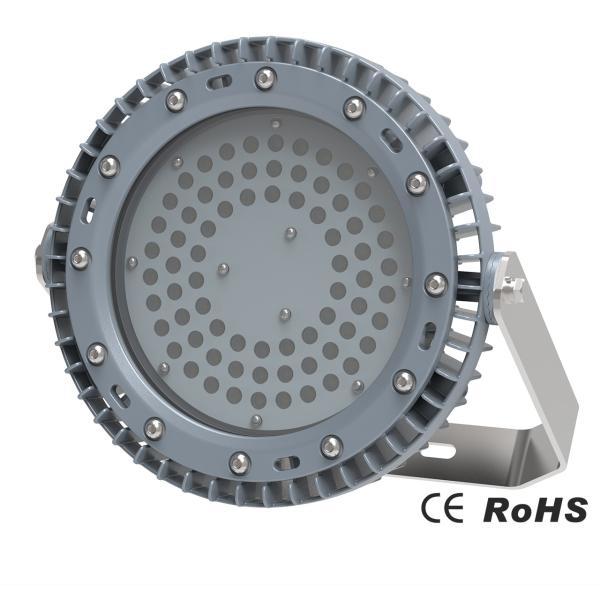

Sealion Series 100W 120W 150W Industrial LED Flood Light Power
Factor > 0.98
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours
2. 5-year performance warranty
3. Low THD around 10%,Less interference
4. 5KV Surge Protection
5. Robust aluminium housing and strong tempered glass
6. Vibration and shock resistant
7. Low maintenance
8. Over voltage protection/short circuit protection
Specifications:
Certificate:CE,RoHS
Executive Standard:
| EN 60598-1:2015+A1:2018 | EN 60598-2-5:2015 | EN 62031:2008+A1:2013+A2:2015 |
| EN 62471:2008 | EN 62493:2015 | IEC 62321-4:2017 |
| IEC 62321-5:2013 | IEC 62321-6:2015 | IEC 62321-7-1:2015 |
| IEC 62321-7-2:2017 | IEC 62321-7-2:2017 | IEC 62321-8:2017 |
Luminaire Efficacy: 140m/W
Lifespan:>50,000 hours
Operating Voltage: 100V-277V/347-480V/141V-392V/491V-679V
Power:100W,120W,150W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:8.6Kg
Size:φ 330*157mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 1XM16,equipped with 1 meter cable
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
Ordering Information:
P/N | Rated voltage(V) | Lumino us Flux(lm) | Power | CRI | Color temp. | CCT(K) |
| KSL100*WM-E |
100~277 (141~392) | 13288 | 100 | 70 | Warm white | 3000±300 |
| KSL100*NH-E | 14764 | 100 | 70 | Natural white | 4000±300 |
| KSL100*NH-E | 14764 | 100 | 70 | Natural white | 5000±300 |
| KSL100*CH-E | 14764 | 100 | 70 | Cool white | 5700±300 |
| KSL120*WM-E | 15484 | 120 | 70 | Warm white | 3000±300 |
| KSL120*NH-E | 17204 | 120 | 70 | Natural white | 4000±300 |
| KSL120*NH-E | 17204 | 120 | 70 | Natural white | 5000±300 |
| KSL120*CH-E | 17204 | 120 | 70 | Cool white | 5700±300 |
| KSL150*WM-E | 18559 | 150 | 70 | Warm white | 3000±300 |
| KSL150*NH-E | 20621 | 150 | 70 | Natural white | 4000±300 |
| KSL150*NH-E | 20621 | 150 | 70 | Natural white | 5000±300 |
| KSL150*CH-E | 20621 | 150 | 70 | Cool white | 5700±300 |
Remarks:
1.*Stands for beam angle , including H4V4 / H5V5 / H6V6.
2.For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
Candela Distribution:
Installation Method:
