13000-22050lm 100W 120W 150W Industrial LED Flood Light For Cement Plants

Ask Lasest Price
Brand Name :	KHJ
Model Number :	KSL100,KSL120,KSL150
Certification :	CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	400pcs/day
Delivery Time :	5-10work days

Add to Cart

Product Details
Company Profile

13000-22050lm 100W 120W 150W Industrial LED Flood Light For Cement Plants

Sealion Series 100W 120W 150W Industrial LED Flood Light Power Factor > 0.98

Features And Benefits:
1.High efficacy LED Source with long lifespan>50,000 hours
2.5-year performance warranty
3.Low THD around 8%,Less interference
4. 5KV Surge Protection
5. Robust aluminium housing and strong tempered glass
6. Vibration and shock resistant
7. Low maintenance

Specifications:

Certificate:CE,RoHS
Executive Standard:

EN 60598-1:2015+A1:2018	EN 60598-2-5:2015	EN 62031:2008+A1:2013+A2:2015
EN 62471:2008	EN 62493:2015	IEC 62321-4:2017
IEC 62321-5:2013	IEC 62321-6:2015	IEC 62321-7-1:2015
IEC 62321-7-2:2017	IEC 62321-7-2:2017	IEC 62321-8:2017

Luminaire Efficacy: 140m/W
Lifespan:>50,000 hours
Operating Voltage: 20-30 VAC/100-277 VAC/347-480 VAC;20-30 VDC/28-42 VDC/141-392 VDC/491-679 VDC

Power:100W,120W,150W

Frequency:50/60Hz

Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:11Kg
Size:φ 330*197mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2X M25*1.5(M20*1.5, NPT 3/4” are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

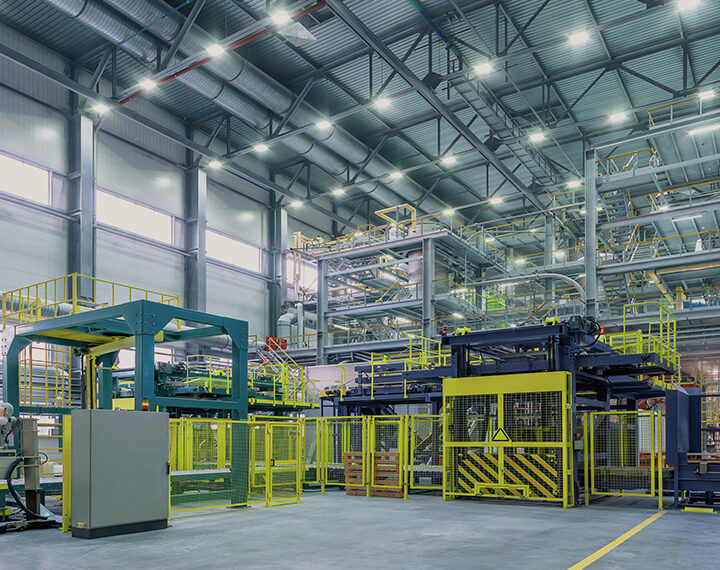

Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry

Ordering Information:

P/N	Rated voltage(V)	Lumino us Flux(lm)	Power	CRI	Color temp.	CCT(K)
KSL100*WM-J-E	100~277 (141~392)	13000	100	70	Warm white	3000±300
KSL100*NH-J-E		14700	100	70	Natural white	4000±300
KSL100*NH-J-E		14700	100	70	Natural white	5000±300
KSL100*CH-J-E		14700	100	70	Cool white	5700±300
KSL120*WM-J-E		15600	120	70	Warm white	3000±300
KSL120*NH-J-E		17640	120	70	Natural white	4000±300
KSL120*NH-J-E		17640	120	70	Natural white	5000±300
KSL120*CH-J-E		17640	120	70	Cool white	5700±300
KSL150*WM-J-E		19500	150	70	Warm white	3000±300
KSL150*NH-J-E		22050	150	70	Natural white	4000±300
KSL150*NH-J-E		22050	150	70	Natural white	5000±300
KSL150*CH-J-E		22050	150	70	Cool white	5700±300

Remarks:
1.*Stands for beam angle , including H4V4 / H5V5 / H6V6.
2.For beam angle H4V4 and H5V5,the luminous flux will be 15% less.

Candela Distribution:

Installation Method:
