    IP67 KHJ Explosion Proof LED Exit Sign Combo Emergency Exit Lights KBDJ11 Series

    Ask Lasest Price
    Brand Name : KHJ
    Model Number : KBDJ11
    Certification : ATEX,IECEx,CE,RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3-8work days
    • Product Details
    • Company Profile

    IP67 KHJ Explosion Proof LED Exit Sign Combo Emergency Exit Lights KBDJ11 Series

    KBDJ11-Series Degree of protection IP67 Explosion Proof LED Exit Sign Emergency Lights

    Application and Features:

    ● Explosion protection
    - IECEx (IEC)-IECEx SEV 21.0006X
    - ATEX (CENELEC, EN)-SEV 21 ATEX 0521 X
    - China Ex(GB)
    ● Application in hazardous area
    Zone 1 and Zone 2,
    Zone 21 and Zone 22
    ● Continuous light,with built-in maintenance-free battery pack, automatically charging, and automatically switch to battery power supply when powersource cut off or in emergency situation.
    ● LED light source, low power consumption, long service life.


    Guide sign​:


    Specifications:

    Ex markingGasII 2 G Ex db IIB T6 Gb,Ex db IIB T6 Gb,Ex d IIB T6 Gb,
    DustII 2 G Ex db IIB+H2 T6 GbEx db IIB+H2 T6 GbEx d IIB+H2 T6 Gb
    II 2 D Ex tb IIIC T80℃ DbEx tb IIIC T80℃ DbEx tD A21 IP66/ 67 T80℃ Db
    Conformity to standardsIEC60079-0,IEC60079-1,IEC60079-31
    EN60079-0, EN60079-1, EN60079-31
    GB3836.1,GB3836.2,GB12476.1,GB12476.5
    Structure,
    Material
    EnclosureAluminum alloy enclosure, powder coated,industrial grey with dark lines texture (RAL7035)
    Transparent coverTempered glass, resistant to 4J impact

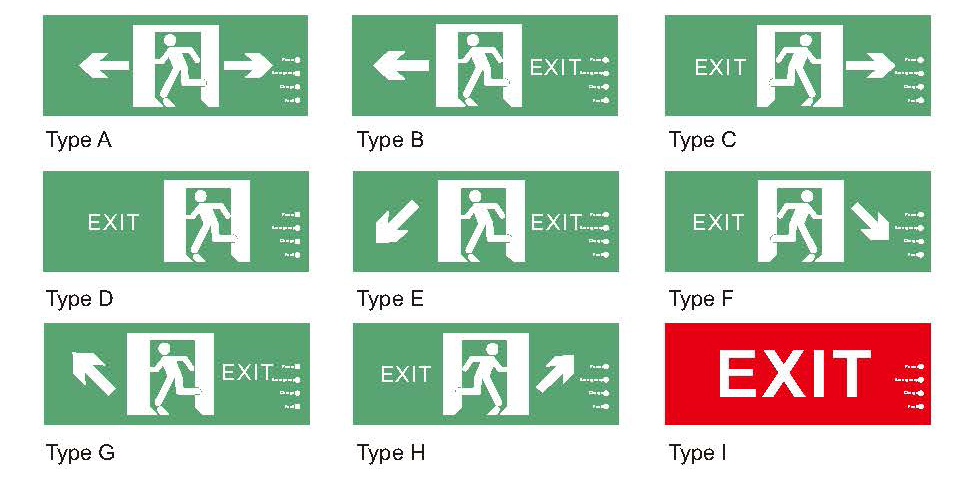

    Guide sign9 signs, and customizable
    Control moduleWith overcharge, overdischarge, short circuit protection and others.
    Self-check
    function
    With self-checking function, automatic discharge once per month, emergency working for 120seconds, and automatically back to main power supply.Annual self-checking function,automatically switch to emergency state and run over the battery, then automatically back to main power supply and charge the battery The fault will automatically alert with light and sound.
    Exposed fastenerStainless steel
    Light sourceLED
    Rated voltage100~300V AC /DC; 12,24,36V AC /DC
    Emergency unit voltageDC3.0~3.5V
    Emergency working time≤180 min
    Charging time<24h
    Frequency50/60Hz
    Rated voltage≤6W
    Degree of protectionIP66,IP67
    Ambient temperature-40℃~+55℃/60℃
    Terminal block3X1.5~4mm2 (L+N+PE)
    Cable entriesM20X1.5,M25X1.5,NPT1/2,NPT3/4
    Available cable outer diameter (mm)φ10~φ14(mm)
    WeightWall type (B): 7kg, Ceiling type (X1): 6.6kg, Ceiling type (X2): 6.8kg, Pendant type (G): 6.6kg

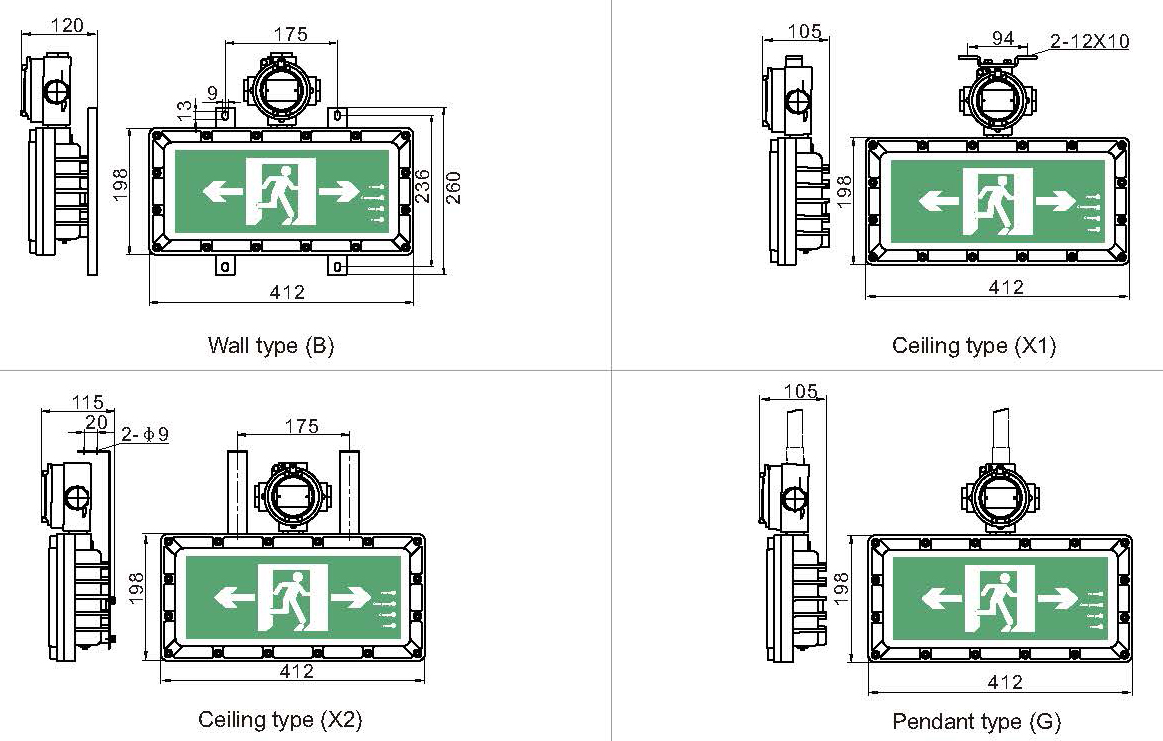

    Outline and Installation Dimension(Dimensions in mm):
