Highlight:Explosion Proof Emergency Light, EXIT light, Zone 1

Features And Benefits:

1. Robust aluminium housing and strong tempered glass.

2 .Green letter and white letter for optional.

3. Three hours battery backup.

4. Long life span and low maintenance.

5. Pendant, wall, and end bracket mounts provide universal installation options.

Product Important Information:

Type Of Protection	Ex mb ib,
Protection Standards	(IEC)EN 60079-0, (IEC)EN 60079-11, (IEC)EN 60079-18,(IEC)EN 60079-28, EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction	Zone 1 & Zone 2 Areas to (IEC)EN 60079-10-1
Installation	(IEC)EN 60079-14
Certificate	ECM 19 ATEX-B SU43
Equipment Coding	Ex mb ib op is IIC T6 Gb
Temperature Class	-20℃ ≤ Ta ≤ +55℃
ATEx Coding	II 2 G
Ingress Protection	IP54 (IEC)EN 60529
Cable entry	M20*1.5,M25*1.5,3/4 NPT
CE Mark	The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements

Applications:

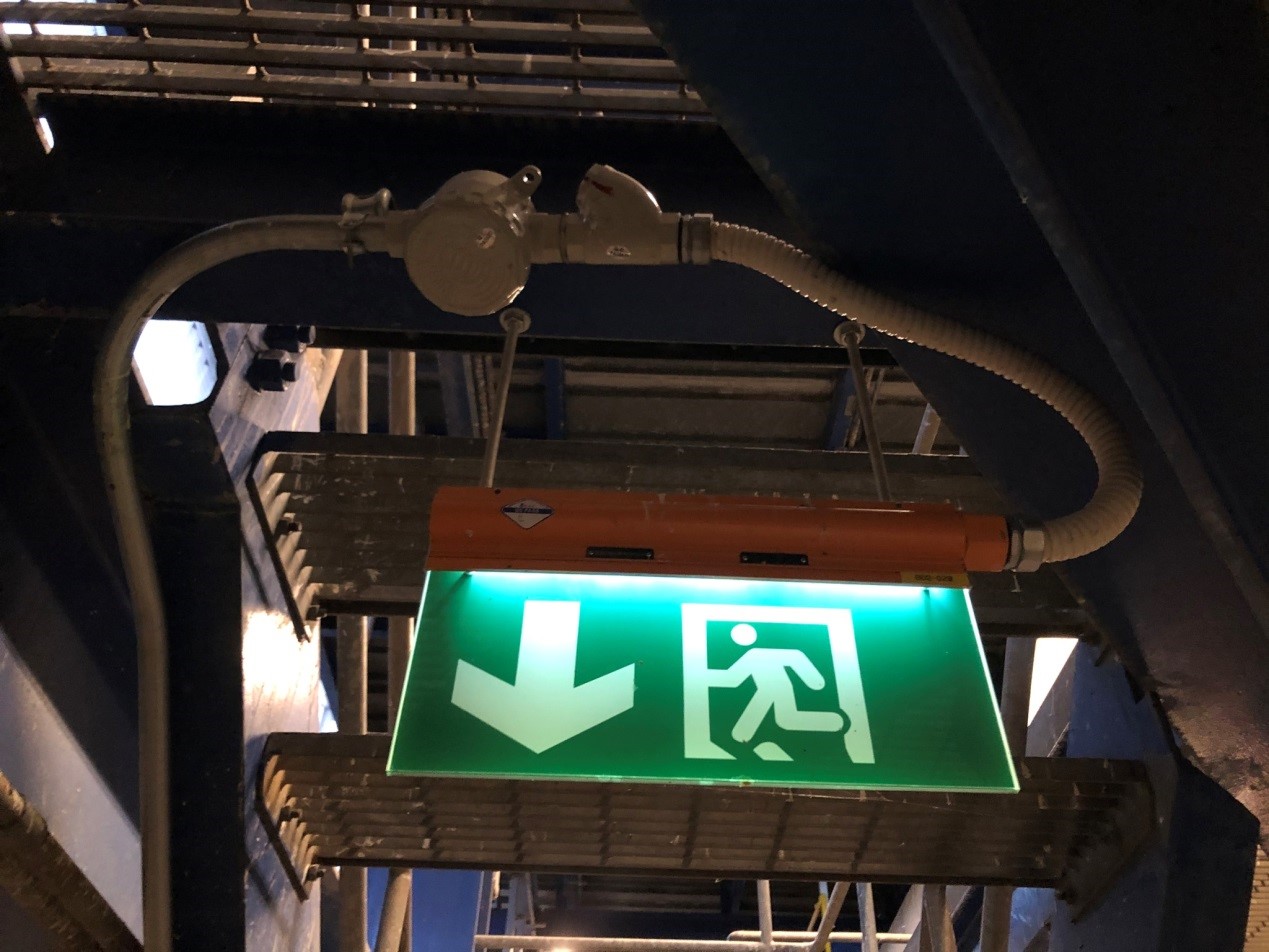

Can be widely used in any building or enclosed area where people work where illuminated exit signs are required

1. In locations deemed hazardous due to the presence of flammable vapors or gases, or combustible dusts

2. In any building or enclosed area where people work-where illuminated exit signs are required

3. To provide distinct, highly visible exit marking

4. To indicate the direction of travel to exits

5. Locations requiring continuous and consistent light .levels

Ordering information:

P/N	Operating Voltage(V)	Light Color	Exit Sign Designation	Temp. Classification
Ex-KPSEW-GE-ON-E	100-277 AC (141-392 DC)	White		T6
Ex-KPSEW-GHL-ON-E
Ex-KPSEW-GHR-ON-E
Ex-KPSEW-GHLR-ON-E
Ex-KPSEG-E-ON-E		Green
Ex-KPSEG-HL-ON-E
Ex-KPSEG-HR-ON-E
Ex-KPSEG-HLR-ON-E
