    IP66 IP67 Ex Proof Cable Gland Explosion Proof Stopping Plug KBM 41 42 43 Series

    Ask Lasest Price
    Brand Name : KHJ
    Model Number : KBM41,KBM42,KBM43
    Certification : ATEX,IECEx,CE,RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs/day
    Delivery Time : 3-8work days
    • Product Details
    • Company Profile

    IP66 IP67 Ex Proof Cable Gland Explosion Proof Stopping Plug KBM 41 42 43 Series

    KBM 41 42 43 Series Explosion proof Cable Glands Explosion proof Stopping Plugs

    Application and Features:

    ● Explosion protection
    - IECEx (IEC)-IECEx CNEX 19.0003U
    - ATEX (CENELEC, EN)-Presafe 18 ATEX 13604U Issue 0
    - China Ex(GB)
    ● Application in hazardous area
    Zone 1 and Zone 2
    Zone 20, Zone 21 and Zone 22
    ● This series product has 6 structure types for selection: internal hexagon,external hexagon, internal fixed, external fixed, etc.
    ● Can be customized upon request.
    ● Used for spare inlets on explosion-proof equipment.

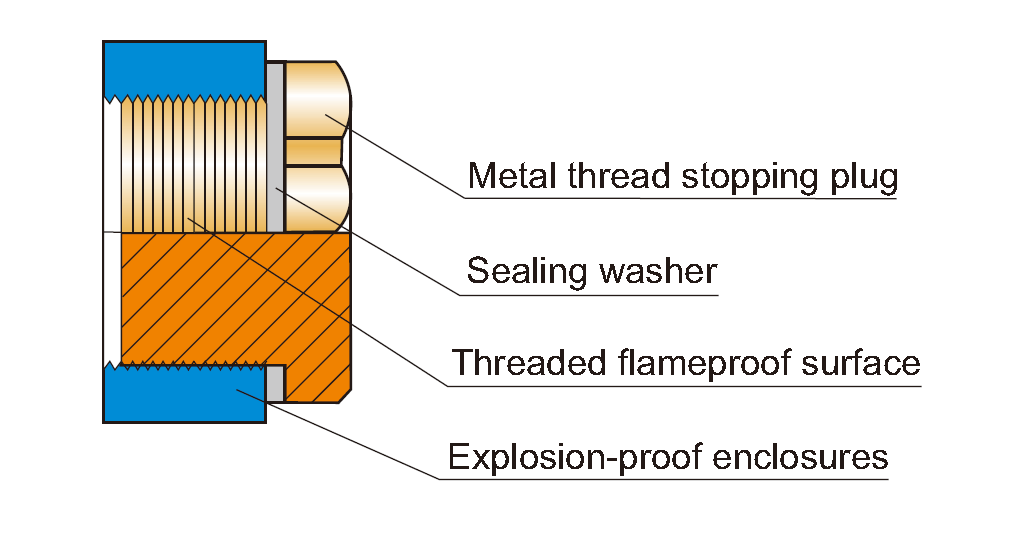

    Installation Schematic View:

    Technical Parameter:


    Ex markingGasM, NPT threadII 2 G Ex db IIC GbEx db IIC GbEx db IIC Gb
    II 2 G Ex eb IIC GbEx eb IIC GbEx eb IIC Gb
    G threadII 2 G Ex eb IIC GbEx eb IIC GbEx eb IIC Gb
    DustM, NPT threadII 1 D Ex ta IIIC DaEx ta IIIC DaEx tD A20 IP66/IP67
    Conformity to standardsIEC60079-0,IEC60079-1,IEC60079-7,IEC60079-15,IEC60079-31
    EN60079-0, EN60079-1, EN60079-7, EN60079-15, EN60079-31
    GB3836.1,GB3836.2,GB3836.3,GB3836.8,GB12476.1,GB12476.5
    MaterialStopping plugStainless steel, Q235 carbon steel (galvanized), brass (nickel plated)
    Aluminum alloy, powder coated, industrial gray with dark lines texture (RAL7035)
    Aluminum alloy, oxidated surface
    Sealing ring (Washer)
    (Exclude NPT thread)
    Silicone rubber O-ring
    PTFE washer
    Degree of protectionIP66, IP67
    Ambient temperatureQ235 Carbon steel-20℃~+100℃
    Stainless steel Aluminum alloy,brass-60℃
