    Armoured Unarmoured Explosion Proof Cable Gland IP68 for Zone 1 Zone 2

    Ask Lasest Price
    Brand Name : KHJ
    Model Number : KBM13,KBM14
    Certification : ATEX,IECEx,CE,RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs/day
    Delivery Time : 3-8work days
    • Product Details
    • Company Profile

    Armoured Unarmoured Explosion Proof Cable Gland IP68 for Zone 1 Zone 2

    KBM 13 14 Series Explosion Proof Cable Glands Double Seal Armoured Unarmoured

    Application and Features:

    ● Explosion protection
    - IECEx (IEC)-IECEx TPS 21.0001X
    - ATEX (CENELEC, EN)-TPS 21 ATEX 003086 0010 X Rev. 00
    - China Ex(GB)
    ● Application in hazardous area
    Zone 1 and Zone 2
    Zone 21 and Zone 22
    ● Flame-proof (Type ‘d’), Increased safety (Type ‘e’), restricted breathing (Type‘nR’), combustible dust (Type ‘tb’) structure.
    ● Double seal for armoured and unarmoured cables.
    ● External hexagon and stripe compression nuts are available.
    ● Can be installed on Ex i (intrinsic safety type) equipment.

    Technical Parameter:


    Explosion
    protection    		Ex markingII 2 GD Ex db IIC Gb
    /Ex eb IIC Gb/Ex tb IIIC Db    		Ex db IIC GbEx d IIC Gb
    Ex eb IIC GbEx e IIC Gb
    II 2/3 GD Ex db IIC Gb
    /Ex eb IIC Gb/Ex nR IIC Gc
    /Ex tb IIIC Db    		Ex nR IIC GcEx nR IIC Gc
    Ex tb IIIC DbEx tD A20 IP66/IP67/IP68(2m/72h)
    Conformity to standardsIEC60079-0,IEC60079-1,IEC60079-7,IEC60079-15,IEC60079-31
    EN60079-0, EN60079-1, EN60079-7, EN60079-15, EN60079-31
    GB3836.1,GB3836.2,GB3836.3,GB3836.8,GB12476.1,GB12476.5
    MaterialStainless steel, nickel plated brass, brass, etc.
    Degree of protectionIP66, IP67, IP68(2m/72h)
    Ambient temperature-43℃~+100℃
    Connection threadNPT thread, Metric thread (M), Inch thread(G, exclude Ex db type)

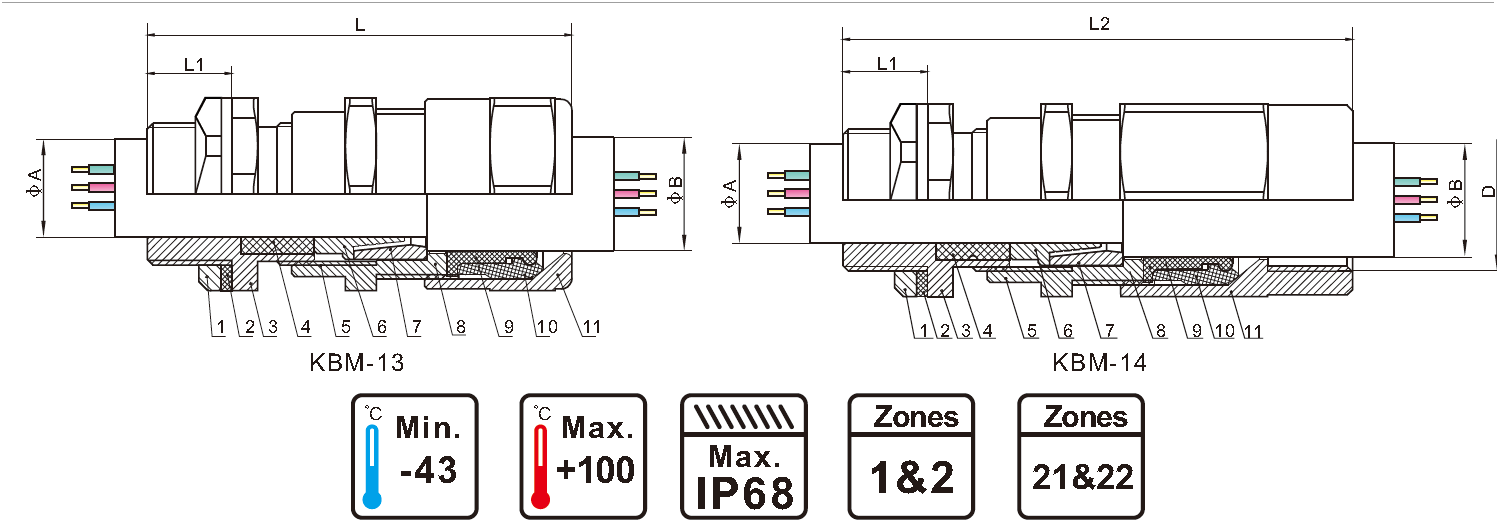

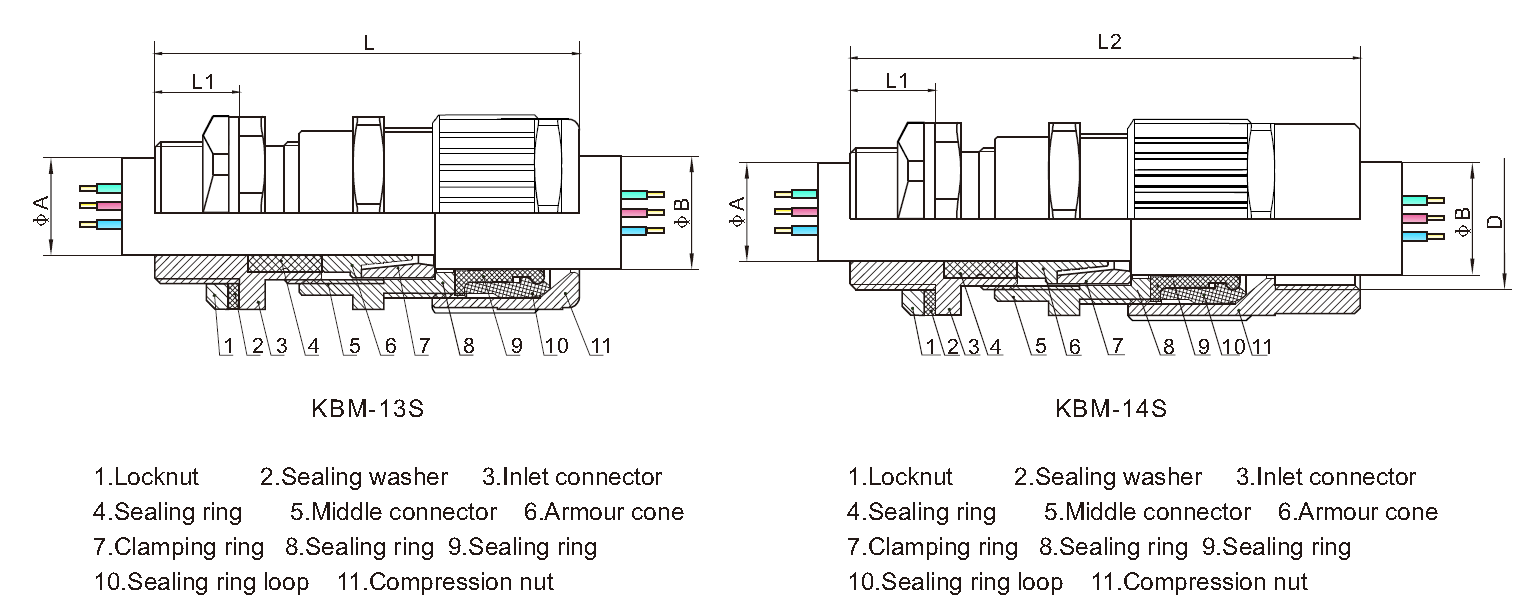

    Outline and Installation Dimension(Dimensions in mm):


    Mounting threadCable outer diameter (mm)

    Thread length L1(mm)

    Length L (mm)

    Length L2 (mm)

    HLBM-13

    Weight (kg)

    HLBM-14

    Weight (kg)

    MGNPTOutlet φAInletφB
    M16X1.5A3～8.25.5～121575.590.50.160.17
    M16X1.56.5～129.5～161576.591.50.160.17
    M20X1.5AG1/2ANPT1/2A3～8.25.5～121575.590.50.180.20
    M20X1.5G1/2NPT1/26.5～129.5～161575.590.50.160.18
    M20X1.5CG1/2CNPT1/2C10～14.512.5～20.51578.593.50.220.24
    M25X1.5AG3/4ANPT3/4A6.5～129.5～161575.590.50.200.22
    M25X1.5G3/4NPT3/410～14.512.5～20.51576.591.50.260.28
    M25X1.5CG3/4CNPT3/4C12.5～20.217～261585.4100.50.320.34
    M32X1.5AG1ANPT1A10～14.512.5～20.52081.596.50.360.39
    M32X1.5G1NPT112.5～20.217～262088.5103.50.400.43
    M32X1.5CG1CNPT1C19.5～26.522～332095.5110.50.520.55
    M40X1.5AG11/4ANPT11/4A12.5～20.217～262088.5103.50.760.80
    M40X1.5G11/4NPT11/419.5～26.522～332095.5110.50.720.76
    M40X1.5CG11/4CNPT11/4C25～32.528～4120102.5117.51.021.06
    M50X1.5AG11/2ANPT11/2A19.5～26.522～332095.5110.51.171.22
    M50X1.5G11/2NPT11/225～32.528～4120101.5116.51.111.16
    M50X1.5CG11/2CNPT11/2C31.5～44.536～4620118132.51.371.42
    M50X1.5DG11/2DNPT11/2D31.5～44.541～52.620118132.51.351.40
    M63AG2ANPT2A25～32.528～4120101.5116.51.281.34
    M63G2NPT231.5～44.536～4620118132.51.441.50
    M63CG2CNPT2C31.5～44.541～52.620118132.51.361.42

    Note:

    1. Locknut and sealing washer (PTFE washer) are supplied for Ex e, n, t type products,Without lock nut when delivery for Ex d type. Above weight is based on nickel plated brass material.
    2. Earth lug and shroud are on request.
    3. The standard pitch of metric thread products is 1.5mm, other pitches can be customized, please specify when ordering.
