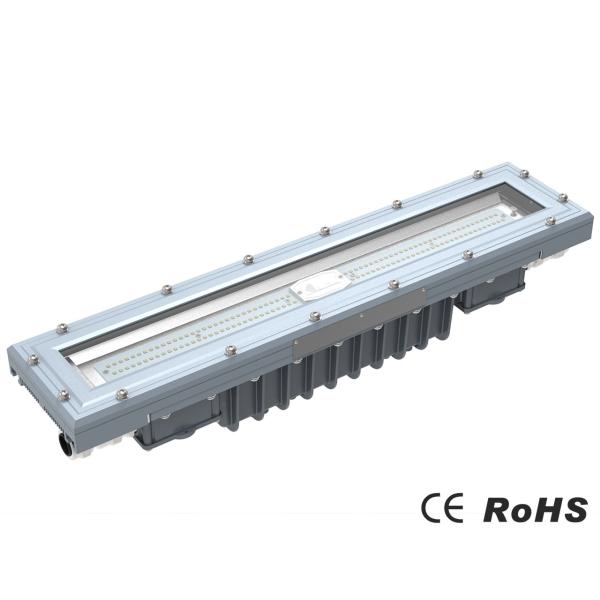

Swordfish Series Luminaire Efficacy 136.5lm/W LED Linear Strip
Light Lifespan >50,000 hours
Features And Benefits:
1. Energy saving. Reduce the number of luminaires you need,
providing excellent efficacy-more light where you need it.
2. Anti-glare.reduces glare in applications where the user may have
direct visual contact with the light source.
3. Shock- and vibration-resistant- tempered glass , reduces the
risk of premature failure.
4. OSRAM LED source. High efficacy lumen output and high CRI.
5. Driver module assembly -High efficiency LED drivers are designed
to provide reliable operation in even the harshest environments.
6. Copper -Free Aluminum enclosure, can endure 10J impact. IP66,
can be used in marine and wet locations-robust.
construction suitable for saltwater and corrosive applications.
7. Different installation methods.
8. Safety chain design. Prevent any fall-off.
9. High power factor,energy saving.
10. Ambient temperature from -20ºC to 55ºC.
11. Life span> 50,000 hours.
12. Surge protection:5KV.
Specifications:
Certificate:CE,RoHS
Executive Standard:
| EN 55015:2013+A1:2015 | EN 61547:2009 | EN 61000-3-2:2014 |
| EN 61000-3-3:2013 | IEC 62321-4:2013 | IEC 62321-5:2013 |
| IEC 62321-6:2015 | IEC 62321-7-1:2015 | EN 60598-1:2015 |
| EN 60598-2-5:2015 | IEC 62321-7-2:2017 | IEC 62321-8:2017 |
Luminaire Efficacy: 136.5m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/24-48 VAC/10-30 VDC/24-48 VDC/141-392 VDC
Power:18W,36W,48W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:6.9Kg
Size:600*136*124mm
Ambient Temperature: -20℃-+55℃
Connecting Terminals: 3*1.0mm²(L+N+PE)
Cable Entries: 2XM25*1.5 (NPT 3/4”,M20*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission

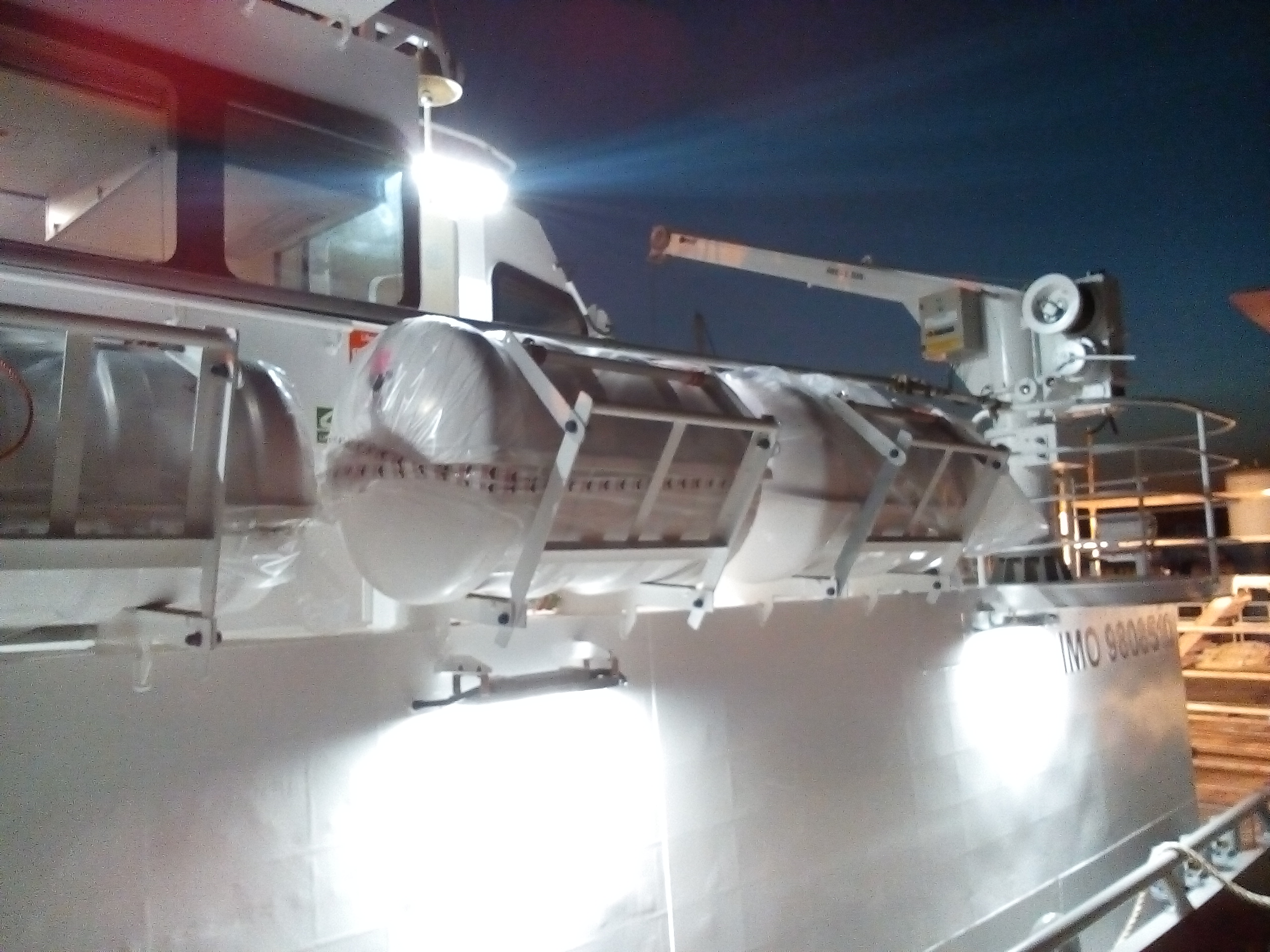

6. Shipping industry
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) |
|---|
| KSF18*600H7V7WM-U-E |
100-277 AC (141-392 DC) | 2268 | 18 | 82 | Warm white | 3000±300 |
| KSF18*600H7V7NH-U-E | 2457 | 18 | 70 | Natural white | 4000±300 |
| KSF18*600H7V7NH-U-E | 2457 | 18 | 70 | Natural white | 5000±300 |
| KSF18*600H7V7CH-U-E | 2457 | 18 | 70 | Cool white | 5700±300 |
| KSF36*600H7V7WM-U-E | 4536 | 36 | 82 | Warm white | 3000±300 |
| KSF36*600H7V7NH-U-E | 4914 | 36 | 70 | Natural white | 4000±300 |
| KSF36*600H7V7NH-U-E | 4914 | 36 | 70 | Natural white | 5000±300 |
| KSF36*600H7V7CH-U-E | 4914 | 36 | 70 | Cool white | 5700±300 |
| KSF48*600H7V7WM-U-E | 6048 | 48 | 82 | Warm white | 3000±300 |
| KSF48*600H7V7NH-U-E | 6552 | 48 | 70 | Natural white | 4000±300 |
| KSF48*600H7V7NH-U-E | 6552 | 48 | 70 | Natural white | 5000±300 |
| KSF48*600H7V7CH-U-E | 6552 | 48 | 70 | Cool white | 5700±300 |
Remarks:
1.*Stands for Operating Voltage, including Default
-AC-100~277V,A-AC/DC 24~48V,B-DC 10~30V.
Candela Distribution:

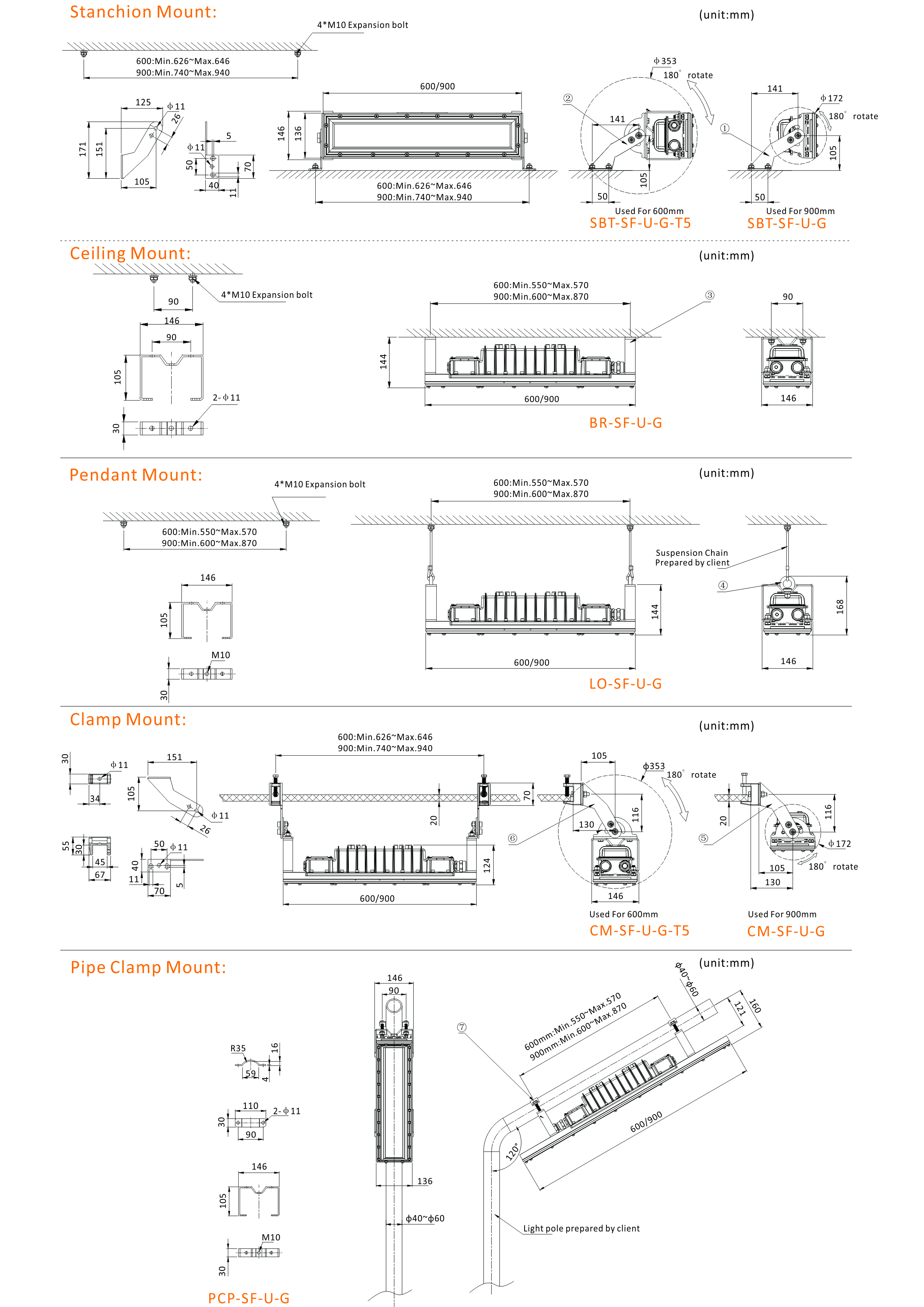

Installation Method:
