    KBM 01 02 Series IP66 Explosion Proof Cable Glands Single Seal Unarmoured

    Ask Lasest Price
    Brand Name : KHJ
    Model Number : KBM01,KBM02
    Certification : ATEX,IECEx,CE,RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs/day
    Delivery Time : 3-8work days
    • Product Details
    • Company Profile

    KBM 01 02 Series IP66 Explosion Proof Cable Glands Single Seal Unarmoured

    KBM 01 02 Series Explosion proof Cable Glands Single Seal Unarmoured

    Application and Features:

    ● Explosion protection
    - IECEx (IEC)-IECEx TPS 21.0001X
    - ATEX (CENELEC, EN)-TPS 21 ATEX 003086 0010 X Rev. 00
    - China Ex(GB)
    ● Application in hazardous area
    Zone 1 and Zone 2
    Zone 21 and Zone 22
    ● Increased safety (Type ‘e’), restricted breathing (Type ‘nR’), combustible dust(Type ‘tb’) structure.
    ● Single seal for unarmoured cables.
    ● External hexagon and stripe compression nuts are available.
    ● Can be installed on Ex i (intrinsic safety type) equipment.

    Technical Parameter:

    Explosion
    protection
    Ex markingII 2 GD Ex eb IIC Gb
    /Ex tb IIIC Db
    Ex eb IIC GbEx e IIC Gb
    II 2/3 GD Ex eb IIC Gb
    /Ex nR IIC Gc/Ex tb IIIC Db
    Ex nR IIC GcEx nR IIC Gc
    Ex tb IIIC DbEx tD A20 IP66
    Conformity to standardsIEC60079-0,IEC60079-7,IEC60079-15,IEC60079-31
    EN60079-0, EN60079-7, EN60079-15, EN60079-31
    GB3836.1,GB3836.3,GB3836.8,GB12476.1,GB12476.5
    MaterialStainless steel, nickel plated brass, brass, etc.
    Degree of protectionIP66
    Ambient temperature-43℃~+100℃
    Connection threadNPT thread, Metric thread (M), Inch thread(G)

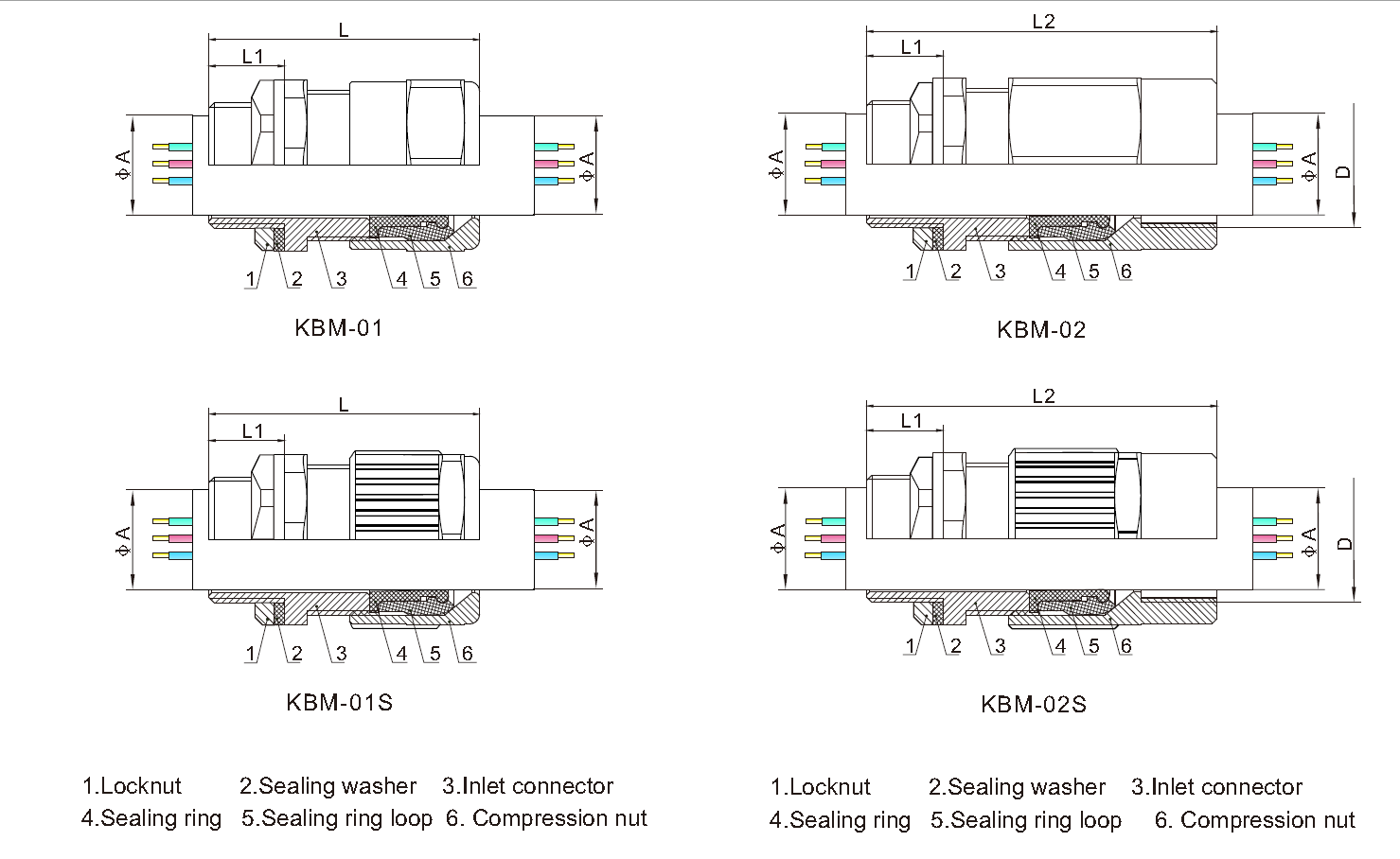

    Outline and Installation Dimension(Dimensions in mm):


    Mounting thread

    Cable outer diameter

    φA(mm)

    Thread length L1(mm)Length L(mm)Length L2(mm)

    HLBM-01

    Weight (kg)

    HLBM-02

    Weight (kg)

    MGNPT
    M16X1.56.5~121552.567.50.130.14
    M20X1.5AG1/2ANPT1/2A6.5~121552.567.50.130.14
    M20X1.5G1/2NPT1/29.5~14.51552.567.50.110.13
    M25X1.5AG3/4ANPT3/4A9.5~161552.567.50.150.17
    M25X1.5G3/4NPT3/414.5~20.51554.5700.170.19
    M32X1.5AG1ANPT1A14.5~20.51555.5700.250.28
    M32X1.5G1NPT120.5~261558.573.50.230.26
    M40X1.5AG11/4ANPT11/4A20.5~261558.573.50.600.63
    M40X1.5G11/4NPT11/422~331560750.480.51
    M50X1.5AG11/2ANPT11/2A22~331560750.910.96
    M50X1.5G11/2NPT11/228~411566.581.50.750.79
    M63X1.5AG2ANPT2A30~411566.581.50.780.85
    M63X1.5G2NPT236~461573880.860.92
    M63X1.5CG2CNPT2C41~52.61573880.820.88

    Note:

    1. Locknut and sealing washer(PTFE gasket) are supplied as standard when delivery. Above weight is based on nickel plated brass material.
    2. Earth lug and shroud are on request.
    3. The standard pitch of metric thread products is 1.5mm, other pitches can be customized, please specify when ordering.
