80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting

Ask Lasest Price
Brand Name :	KHJ
Model Number :	Ex-KBB80,Ex-KBB100,Ex-KBB120, Ex-KBB150
Certification :	ATEX,CE,RoHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	400pcs per day
Delivery Time :	3-8 work days

Add to Cart

Product Details
Company Profile

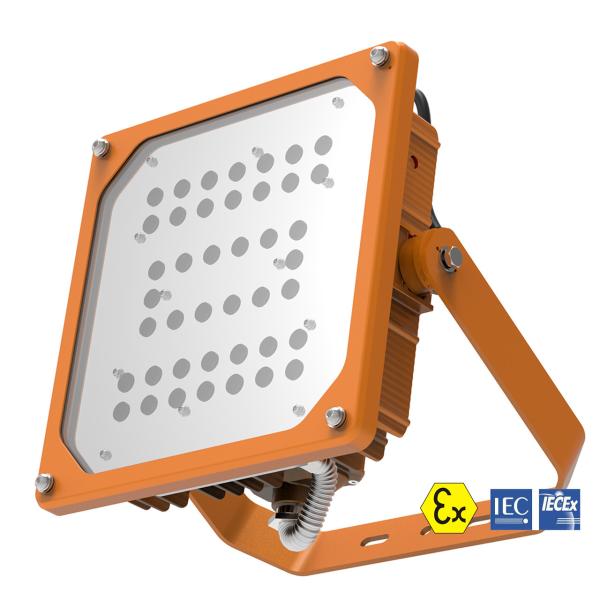

80W-150W Explosion Proof High Bay Led Light Zone 2 Hazardous Area Lighting

Explosion proof LED lights high bay light in Hazardous Area Zone 2 Brown Bear Series

Explosion proof LED lights high bay light in Hazardous Area Zone 2

80W/100W/120W/150W

Brown Bear Series

Highlight: Explosion proof LED lights Zone 2, high bay LED Explosion Proof Light.

Features And Benefits:

1. High Lumen Output LED

2. Robust aluminium alloy housing.

3. Strong tempered glass.

4. 5KV Surge Protection.

5. Long service life with warranty of up to 5 years.

6. Low maintenance.

7. With power of 80W,100W,120W,150W optional.

8. Ambient temperature from -40℃to 55℃.

Product Important Information:

Type Of Protection	Ex nR,Ex tc
Protection Standards	(IEC)EN 60079-0, (IEC)EN 60079-15,(IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8
Area Classfiction	Zone 2 Areas to (IEC)EN 60079-10-1, Zone 22 Areas to (IEC)EN 60079-10-2
Installation	(IEC)EN 60079-14
Certificate	TÜV 15 ATEX 7672 X
Equipment Coding	Ex nR IIC T5 or T6 Gc Ex tc IIIC T95℃ or T85℃ Dc
Temperature Class	Rated Power	Rated Voltage	-40℃ ≤ Ta ≤ +65℃		-40℃ ≤ Ta ≤ +55℃
			Gas	Dust	Gas	Dust
	80W	100~277VAC 50Hz/60Hz	T5	T95℃	T6	T85℃
	100W		/	/	T5	T85℃
	120W
	150W
ATEx Coding	II 3 G / II 3 D
Ingress Protection	IP66 (IEC)EN 60529
Cable entry	M201.5 or M251.5 and 3/4 NPT
CE Mark	The CE marking of this product applies to EU directives 2014/35/EU, 2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and Safety Requirements

Applications:
LED Explosion Proof Lights certified for Zone 2& Zone 22 applications, designed for very large and high hazardous areas like Oil & Gas, Power Generation, Chemical and Petrochemical etc.

Ordering information:

P/N	Operating Voltage(V)	Luminous Flux(lm)	Power(W)	CRI	Color Temp.	CCT(K)	Temp. Classification
P/N	Operating Voltage(V)	Luminous Flux(lm)	Power(W)	CRI	Color Temp.	CCT(K)	-40℃-+55℃	-40℃-+65℃
Ex-KBB80*WM-E	100-277 AC (141-392 DC)	10500	80	70	Warm white	3000±300	T6	T5
Ex-KBB80*NH-E		11340	80	70	Natural white	4000±300	T6	T5
Ex-KBB80*NH-E		11340	80	70	Natural white	5000±300	T6	T5
Ex-KBB80*CH-E		11340	80	70	Cool white	5700±300	T6	T5
Ex-KBB100*WM-E		13125	100	70	Warm white	3000±300	T6	/
Ex-KBB100*NH-E		14175	100	70	Natural white	4000±300	T6	/
Ex-KBB100*NH-E		14175	100	70	Natural white	5000±300	T6	/
Ex-KBB100*CH-E		14175	100	70	Cool white	5700±300	T6	/
Ex-KBB120*WM-E		15750	120	70	Warm white	3000±300	T5	/
Ex-KBB120*NH-E		17010	120	70	Natural white	4000±300	T5	/
Ex-KBB120*NH-E		17010	120	70	Natural white	5000±300	T5	/
Ex-KBB120*CH-E		17010	120	70	Cool white	5700±300	T5	/
Ex-KBB150*WM-E		19687	150	70	Warm white	3000±300	T5	/
Ex-KBB150*NH-E		21262	150	70	Natural white	4000±300	T5	/
Ex-KBB150*NH-E		21262	150	70	Natural white	5000±300	T5	/
Ex-KBB150*CH-E		21262	150	70	Cool white	5700±300	T5	/

Remarks:

1. * Stands for beam angle,including H5V5 / H6V6/FW;

2. For Beam angle H5V5,the luminous ﬂux will be 15% less;

3. For Beam angle FW,the luminous ﬂux will be 30% less.

Why buy from us instead of buying from other suppliers?

1. Good location and convenient transportation.

2. ATEX, IECEx, CE, RoHS certification.

3. Advanced production and processing equipment, environmentally friendly and reliable products.
