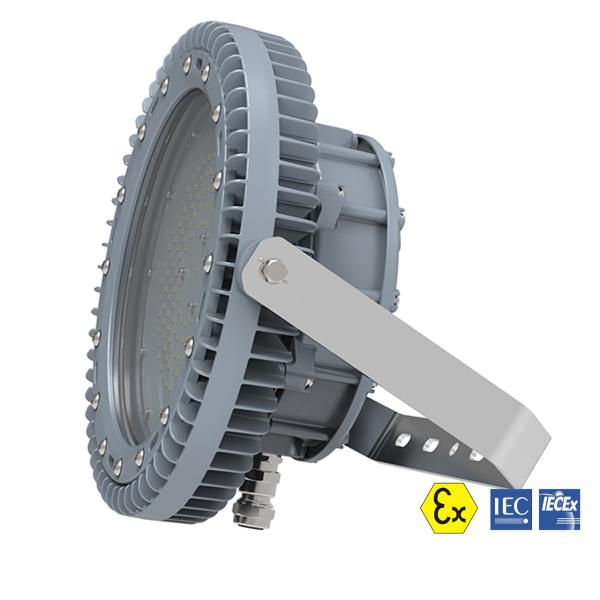

Sealion Series 200W 240W 300W LED Explosion Proof Lights Power
Factor > 0.98
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 5KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.
Ex Mark:Gas:
II 2 G Ex db IIC T4/T5 Gb
Dust: II 2 D Ex tb IIIC T115˚C/105°/T95˚C IIIC IP66
Certificate:
| ATEX Certification NO.:ECM 19 ATEX-B SU43 | IECEx Certification NO.:Pending |
| CE | RoHS |
Executive Standard:
| IEC 60079-0:2007 | IEC 60079-1:2014 | IEC 60079-7:2017 |
| IEC 60079-31:2014 | EN 60079-0:2018 | EN 60079-1:2014 |
| EN 60079-7:2015+A1:2018 | EN 60079-31:2014 | |
Classification:Group II, Zone 1 & 21 and 2 & 22
Electrical & Photometric Features:
Luminaire Efficacy: 140m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/347-480 VAC/141-392 VDC/491-679 VDC
Power:200W,240W,300W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:14Kg
Size:φ 415*197mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2X NPT 3/4” (M20*1.5, M25*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Sealion Series Product Differentiation:
| Rated Power | Operating Voltage | Temp. Classification | Emergency optional |
| 100-277VAC | 347-480VAC | 20-30VAC/DC | -40℃-+55℃ | -40℃-+65℃ | -20℃-+55℃ |
| 200W | ● | ● | / | T5 | T4 | T5 |
| 240W | ● | ● | / | T5 | T4 | T5 |
| 300W | ● | / | / | T4 | / | / |
Sealion Series Applications:
1. Cement plants
2. Warehouse
3. Factory
4. Power Genera
5. Power Transmission
6. Shipping industry
Ordering Information:
P/N |
Operating Voltage(V) |
Luminous Flux(lm) |
Power(W) |
CRI |
Color Temp. |
CCT(K) | Temp. Classification |
| -40℃-+55℃ | -40℃-+65℃ |
| Ex-KSL200*WM-E |
100~277 AC (141~392 DC) | 26000 | 200 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL200*NH-E | 29400 | 200 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL200*NH-E | 29400 | 200 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL200*CH-E | 29400 | 200 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL240*WM-E | 31200 | 240 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL240*NH-E | 35280 | 240 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL240*NH-E | 35280 | 240 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL240*CH-E | 35280 | 240 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL300*WM-E | 39000 | 300 | 70 | Warm white | 3000±300 | T4 | / |
| Ex-KSL300*NH-E | 44100 | 300 | 70 | Natural white | 4000±300 | T4 | / |
| Ex-KSL300*NH-E | 44100 | 300 | 70 | Natural white | 5000±300 | T4 | / |
| Ex-KSL300*CH-E | 44100 | 300 | 70 | Cool white | 5700±300 | T4 | / |
Remarks
1.*Stands for beam angle , including H4V4 / H5V5 / H6V6.
2.For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
Candela Distribution:
Installation Method:
