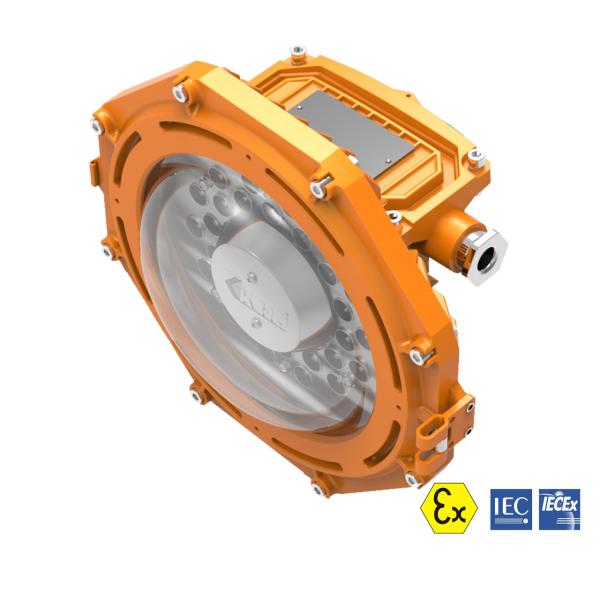

GoldenFrog Series 30W 60W LED Explosion Proof Lights Power Factor
> 0.98
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 5KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.
Specifications:
Standard &Certificate:
Ex Mark: Gas:
II 2 G Ex d IIB T5 or T6 Gb
Dust: II 2 D Ex t IIIC T95℃ or T80℃ Db IP66
Certificate:
ATEX Certification NO.:LCIE 12 ATEX 3070X | IECEx Certification NO.:IECEx CQM 12.0033X |
CE | RoHS |
Executive Standard:
(IEC)EN 60079-0 | (IEC)EN 60079-1 | (IEC)EN 60079-31 |
EN 55015 | EN 61547 | EN 61000-3-2 |
EN 61000-3-3 | EN 60598-1 | EN 60598-2-5 |
| EN 62031 | EN 62493 | IEC 62321-4 |
| IEC 62321-5 | IEC 62321-6 | IEC 62321-7-1 |
| IEC 62321-7-2 | IEC 62321-8 | |
Luminaire Efficacy: 136.5lm/W
Lifespan:>50,000 hours
Operating Voltage: 24-48 VAC/100-240 VAC
10-30 VDC/24-48 VDC/141-339 VDC
Power:30W,60W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:5.5Kg
Size:311*284*190mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2XNPT 3/4” (M20*1.5,M25*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power (W) | CRI | Color Temp. | CCT(K) | Beam Distribution | Temp. Classification |
| Ex-KGFF30WM-E |
100~240 AC (141~339 DC) | 2992 | 30 | 80 | Warm white | 3000±300 | 180° | T6 |
| Ex-KGFF30NH-E | 3307 | 30 | 70 | Natural white | 4000±300 | 180° | T6 |
| Ex-KGFF30NH-E | 3307 | 30 | 70 | Natural white | 5000±300 | 180° | T6 |
| Ex-KGFF30CH-E | 3307 | 30 | 70 | Cool white | 5700±300 | 180° | T6 |
| Ex-KGFB30WM-E | 3780 | 30 | 70 | Warm white | 3000±300 | 80° | T6 |
| Ex-KGFB30NH-E | 4095 | 30 | 70 | Natural white | 4000±300 | 80° | T6 |
| Ex-KGFB30NH-E | 4095 | 30 | 70 | Natural white | 5000±300 | 80° | T6 |
| Ex-KGFB30CH-E | 4095 | 30 | 70 | Cool white | 5700±300 | 80° | T6 |
| Ex-KGFS30WM-E | 2992 | 30 | 80 | Warm white | 3000±300 | 15° | T6 |
| Ex-KGFS30NH-E | 3307 | 30 | 70 | Natural white | 4000±300 | 15° | T6 |
| Ex-KGFS30NH-E | 3307 | 30 | 70 | Natural white | 5000±300 | 15° | T6 |
| Ex-KGFS30CH-E | 3307 | 30 | 70 | Cool white | 5700±300 | 15° | T6 |
| Ex-KGFF60WM-E | 5670 | 60 | 80 | Warm white | 3000±300 | 180° | T6/T5 |
| Ex-KGFF60NH-E | 6300 | 60 | 70 | Natural white | 4000±300 | 180° | T6/T5 |
| Ex-KGFF60NH-E | 6300 | 60 | 70 | Natural white | 5000±300 | 180° | T6/T5 |
| Ex-KGFF60CH-E | 6300 | 60 | 70 | Cool white | 5700±300 | 180° | T6/T5 |
| Ex-KGFB60WM-E | 7245 | 60 | 70 | Warm white | 3000±300 | 80° | T6/T5 |
| Ex-KGFB60NH-E | 7560 | 60 | 70 | Natural white | 4000±300 | 80° | T6/T5 |
| Ex-KGFB60NH-E | 7560 | 60 | 70 | Natural white | 5000±300 | 80° | T6/T5 |
| Ex-KGFB60CH-E | 7560 | 60 | 70 | Cool white | 5700±300 | 80° | T6/T5 |
| Ex-KGFS60WM-E | 5670 | 60 | 80 | Warm white | 3000±300 | 15° | T6/T5 |
| Ex-KGFS60NH-E | 6300 | 60 | 70 | Natural white | 4000±300 | 15° | T6/T5 |
| Ex-KGFS60NH-E | 6300 | 60 | 70 | Natural white | 5000±300 | 15° | T6/T5 |
| Ex-KGFS60CH-E | 6300 | 60 | 70 | Cool white | 5700±300 | 15° | T6/T5 |
Remark:
1. Operating voltage including Default-100~240V AC; A-24-48V AC/DC;
B-10-30V DC.
Candela Distribution:
Installation Method:
