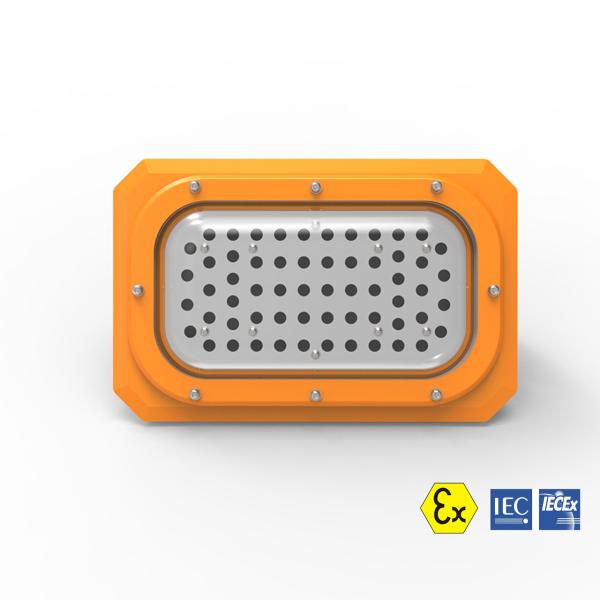

Polarbear Series 120W 160W LED Explosion Proof Lights Power Factor
> 0.98
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 5KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.
Specifications:
Standard &Certificate:
Ex Mark: Gas:
II 3 G Ex nR IIC T* Gc
Dust: II 3 D Ex tc IIIC T* Dc IP66
Certificate:
| ATEX Certification NO.:LCIE 12 ATEX 3069X/01 | IECEx Certification NO.:IECEx CQM 12.0034X |
| CE | RoHS |
Executive Standard:
| (IEC)EN 60079-0 | (IEC)EN 60079-15 | (IEC)EN 60079-31 |
| EN 55015 | EN 61547 | EN 61000-3-2 |
| EN 61000-3-3 | EN 60598-1 | EN 60598-2-5 |
| EN 62031 | EN 62493 | IEC 62321-4 |
| IEC 62321-5 | IEC 62321-6 | IEC 62321-7-1 |
| IEC 62321-7-2 | IEC 62321-8 | |
Luminaire Efficacy: 147lm/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/220-240 VAC/100-130 VAC
141-392 VDC/311-339 VDC/141-184 VDC
Power:120W,160W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:11Kg
Size:260*400*161mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Available cable outer:φ7-φ14(mm)
Cable Entries: 2XNPT 3/4” (M20*1.5,M25*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KPLB120*WM-E |
100-277 AC (141-392 DC) | 16380 | 120 | 70 | Warm white | 3000±300 | T6/T5 |
| Ex-KPLB120*NH-E | 17640 | 120 | 70 | Natural white | 4000±300 | T6/T5 |
| Ex-KPLB120*NH-E | 17640 | 120 | 70 | Natural white | 5000±300 | T6/T5 |
| Ex-KPLB120*CH-E | 17640 | 120 | 70 | Cool white | 5700±300 | T6/T5 |
| Ex-KPLB160*WM-E | 21840 | 160 | 70 | Warm white | 3000±300 | T6/T5 |
| Ex-KPLB160*NH-E | 23520 | 160 | 70 | Natural white | 4000±300 | T6/T5 |
| Ex-KPLB160*NH-E | 23520 | 160 | 70 | Natural white | 5000±300 | T6/T5 |
| Ex-KPLB160*CH-E | 23520 | 160 | 70 | Cool white | 5700±300 | T6/T5 |
Remarks:
1. * Stands for beam angle,including H1V1 / H4V4 / H5V5 / H6V6 /
SL/FW.
2. For Beam angle H1V1,H4V4 and H5V5,the luminous flux will be 15%
less;For Beam angle SL/FW,the luminous flux will be 30% less.
3. SL beam angle is only applicable for 120W.
Candela Distribution:
Installation Method:
