    100-277VAC 6W Explosion Proof Led Exit Sign Copper Free Aluminium Enclosure

    Ask Lasest Price
    Brand Name : KHJ
    Model Number : Ex-KPSEW,Ex-KPSEG
    Certification : ATEX,CE,RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3-8work days
    • Product Details
    • Company Profile

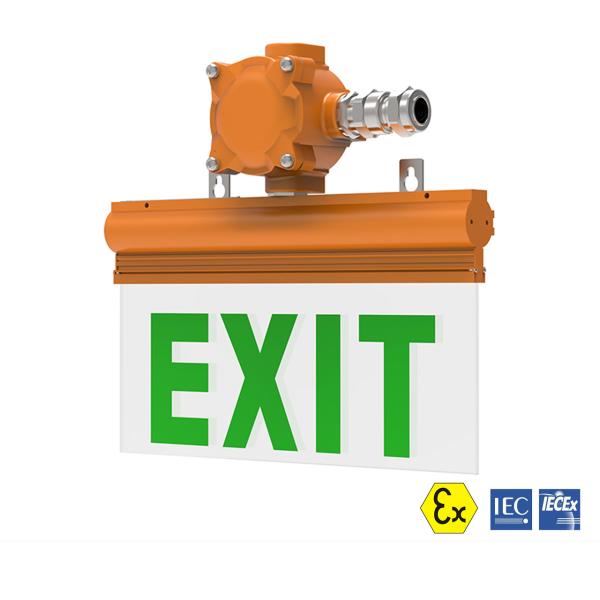

    100-277VAC 6W Explosion Proof Led Exit Sign Copper Free Aluminium Enclosure

    Polaris Series Emergency LED Explosion Proof Lights Enclosure Material Copper-free Aluminium

    Features And Benefits:
    1. Robust light alloy housing.
    2. Power saving LED technology.
    3. Overcharge and over discharge protection make sure good performance.
    4. Luminaire with self-contained battery unit and automatic function monitoring.
    5. Nickel-cadmium battery,500 cycles life span.

    Specifications:

    Standard &Certificate:
    Ex Mark:Gas: II 2 G Ex mb ib op is IIC T6 Gb
    II 2 D Ex tb op is IIIC T95℃ or T80℃ Db

    Certificate:

    ATEX Certification NO.:ECM 17 ATEX-B Td45

    RoHS

    CE

    Executive Standard:

    (IEC)EN 60079-0

    (IEC)EN 60079-1

    (IEC)EN 60079-7
    (IEC)EN 60079-11(IEC)EN 60079-18(IEC)EN 60079-31


    Lifespan:>50,000 hours
    Operating Voltage: 100-277 VAC
    141-392 VDC
    Power:Normal:6W;Emergency:0.5W
    Battery Rated Capacity:2.6Ah
    Rated Capacity:Ni-MH
    Rated Lifespan:300 Cycles
    Battery Back Up:18 h
    Battery Charge Time(after full discharge): 12 h
    Insulation Class:
    LED Driver: Over voltage protection/short circuit protection
    Weight:2Kg
    Size:337*310*76mm
    Ambient Temperature: -20℃-+55℃
    Connecting Terminals:3*1.0-4mm²(L+N+PE)
    Available cable outer diameter:φ7-φ14(mm)
    Cable Entries:1XNPT 3/4” (M20*1.5, M25*1.5 are optional)
    Earthing Protection: M4 (Internal & external earth bolts)
    IP Code: IP54
    Enclosure Material: Die-casting aluminium alloy
    Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
    Coating: Epoxy powder coating
    Exposed Fastener: Stainless steel
    Protective Cover: Tempered glass,Stand 7J impact

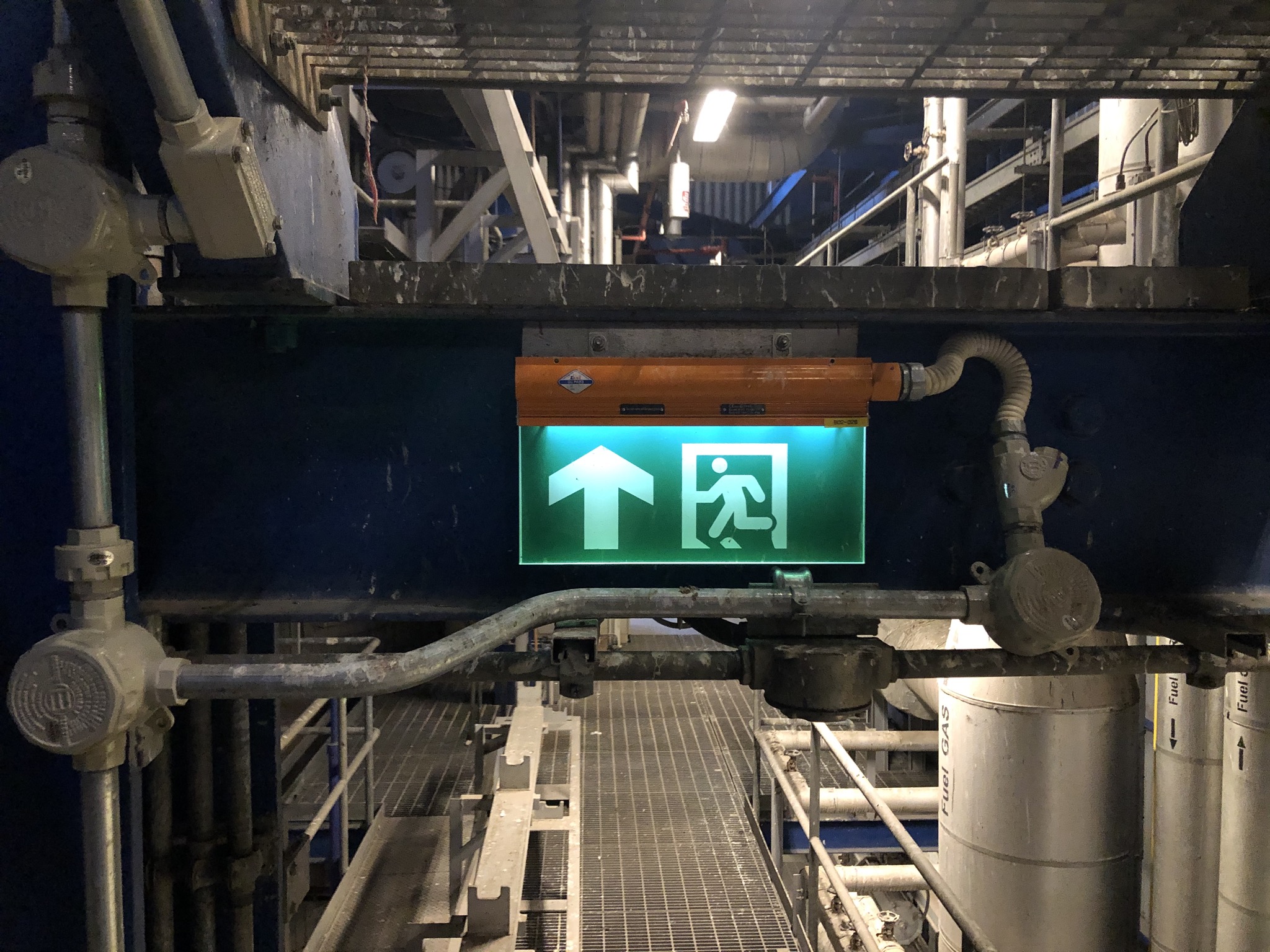

    Applications:
    1. Oil&Gas Exploration
    2. Drilling
    3. Oil Refinery
    4. Petrochemical Plant
    5. Power Plant
    6. Pharmaceutical Plant


    Ordering Information:

    P/NOperating Voltage(V)Light ColorExit Sign DesignationTemp. Classification
    Ex-KPSEW-GE-ON-*-E

    100-277 AC

    (141-392 DC)




    White

    Polaris Series Emergency LED Explosion Proof Lights Enclosure Material Copper-free Aluminium 3

    T6

    Ex-KPSEW-GHL-ON-*-EPolaris Series Emergency LED Explosion Proof Lights Enclosure Material Copper-free Aluminium 4
    Ex-KPSEW-GHR-ON-*-EPolaris Series Emergency LED Explosion Proof Lights Enclosure Material Copper-free Aluminium 5
    Ex-KPSEW-GHLR-ON-*-EPolaris Series Emergency LED Explosion Proof Lights Enclosure Material Copper-free Aluminium 6
    Ex-KPSEG-E-ON-*-E




    Green

    Polaris Series Emergency LED Explosion Proof Lights Enclosure Material Copper-free Aluminium 7
    Ex-KPSEG-HL-ON-*-EPolaris Series Emergency LED Explosion Proof Lights Enclosure Material Copper-free Aluminium 8
    Ex-KPSEG-HR-ON-*-EPolaris Series Emergency LED Explosion Proof Lights Enclosure Material Copper-free Aluminium 9
    Ex-KPSEG-HLR-ON-*-EPolaris Series Emergency LED Explosion Proof Lights Enclosure Material Copper-free Aluminium 10


    Remarks:
    1. *Stands for junction box ,including J2AL,J2AR,J2AU,J2B,J2C,J2EL,J2ER.

    Installation Method:


    What are our advantages?
    1.Professional lighting manufacturer for more than 10 years.
    2. Gold supplier.
    3. Provide high quality products and best service.

    Competitive advantages of our factory:
    1. Very competitive price and high quality control.
    2. Timely delivery.
    3. Environmentally friendly products.
