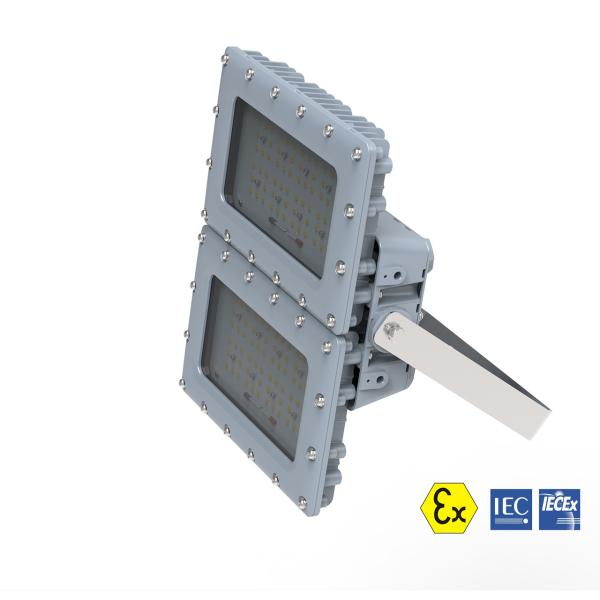

Tank Series 160W 200W 240W Zone 1 Explosion Proof Lighting
Lifespan>50,000 Hours
This user manual covers the range of ATEX and IECEx Tank Series LED
normal/emergency luminaire. These luminaires are
constructed with corrosion resistant epoxy coated aluminum alloy
body and high impact resistance tempered glass
diffuser.
Tank Series LED are available from 160W to 240W, providing ideal
solutions for a wide range of harsh and hazardous applications.
Features And Benefits:
1. High efficacy LED Source with long lifespan>100,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 6KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.
8. Dust proof structure design to avoid dust accumulation.
Product Important Information:
| Type Of Protection | Ex db ,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN
60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1, Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | |
| Equipment Coding | II 2 G Ex db IIC T* Gb II 2 D Ex tb IIIC T* Db IP66 |
| Temperature Class | Rated power (W) | -40℃ ≤ Ta ≤ +55℃ |
| Gas | Dust |
| 160W~240W | T5 | T95℃ |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and
Safety Requirements |
Electrical & Photometric Features:
Luminaire Efficacy: 152m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC,347-480 VAC,141-391VDC,491-679 VDC
Power:160W,200W,240W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 6KV
LED Driver: Over voltage protection/short circuit protection
Weight:13Kg
Size:332*426*142mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2XNPT 3/4”(,M25*1.5 ,M20*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Applications:

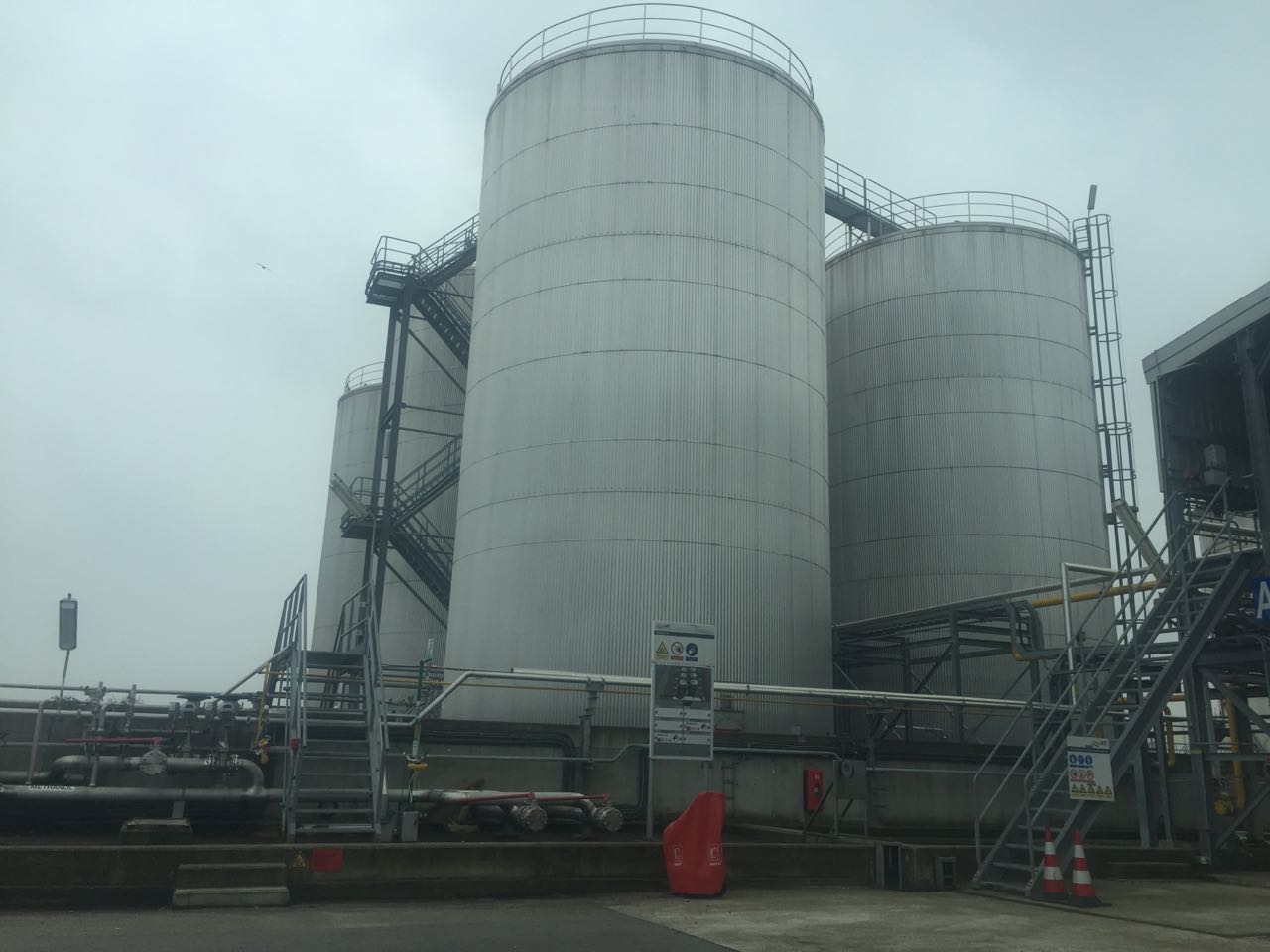

1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
Ordering Informati
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power (W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KTK160**CH-S2-E |
100-277 VAC (141-392 VDC) | 22910 |
160 | 70 | Cool white | 5700K±300K | T5 |
| Ex-KTK160**NH-S2-E | 22910 | 70 | Natural white | 5000K±300K | T5 |
| Ex-KTK160**NH-S2-E | 22910 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK160**WM-S2-E | 20619 | 70 | Warm white | 3000±300k | T5 |
| Ex-KTK200**CH-S2-E | 29145 |
200 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK200**NH-S2-E | 29145 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK200**NH-S2-E | 29145 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK200**WM-S2-E | 26230 | 70 | Warm white | 3000±300k | T5 |
| Ex-KTK240**CH-S2-E | 34136 |
240 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK240**NH-S2-E | 34136 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK240**NH-S2-E | 34136 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK240**WM-S2-E | 30884 | 70 | Warm white | 3000±300k | T5 |
Remarks:
1.The first * stands for Operating Voltage including default-100 -
277 VAC , D-347-480VAC ,E-20-30VAC.
2.The second * stands for Candela Distribution including
H3V3,H5V5,H6V6.
Candela Distribution:
Installation Method:
