LED Explosion Proof Lighting 30W 45W 60W 80W Zone1 Sealion Series
LED highbay light for hazardous area, Zone 1 LED explosion proof
lighting, 30W 45W 60W 80W Sealion Series led light
Highlight: LED Explosion Proof Lighting fixture, LED floodlight Explosion
Proof Lighting
Features And Benefits:
1. Energy saving. Reduce the number of luminaires needed, providing
excellent luminaries efficacy more light where you need it.
2. High efficacy LED Source with long lifespan>50,000 hours.
3. Corrosion resistant epoxy coated die casting aluminum alloy body
and high impact resistance tempered glass diffuser.
4. With separated LED source compartment and Led driver
compartment, better heat dissipation.
5. Optional luminous intensity distribution for different
applications.
6. IP66, can be used in wet locations, robust construction suitable
for corrosive applications.
7. Power Factor: ＞0.98.
8. Surge Protection: 5KV.
9. Life span> 50,000 hours.
10. Ambient temperature from -40℃to 55℃.
Product Important Information:
| Type Of Protection | Ex d,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN
60079-18, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22
Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | TÜV 20 ATEX 8608 X IECEx TUR 20.0068X |
| Equipment Coding | II 2 G Ex db IIC T4/T5 Gb II 2 D Ex tb IIIC T115°C/105°C/T95°C Db IP66 |
| Temperature Class | Rated power (W) | -20℃≤Ta≤+55℃ with Battery | -40℃≤Ta≤+55℃ | -40℃≤Ta≤ +65℃ |
| Gas | Dust | Gas | Dust | Gas | Dust |
| 30W | T5 | T95˚C | T5 | T95˚C | T4 | T105˚C |
| 45W | T5 | T95˚C | T5 | T95˚C | T4 | T105˚C |
| 60W | T5 | T95˚C | T5 | T95˚C | T4 | T105˚C |
| 80W | T5 | T95˚C | T5 | T95˚C | / | / |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and
Safety Requirements |
Applications:

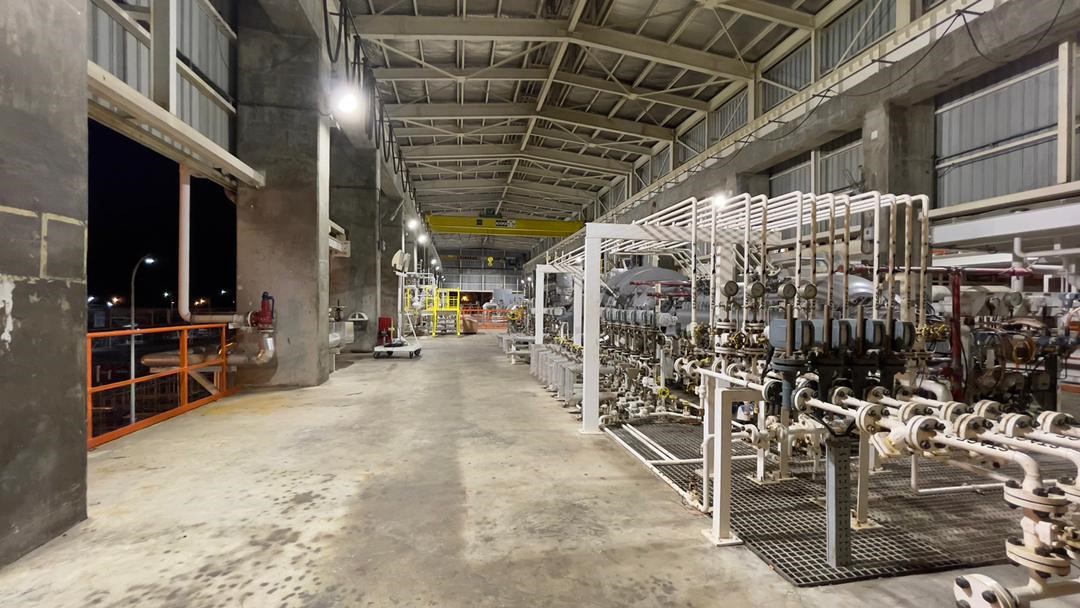

LED Explosion Proof Lights designed for using in a wide range of
industrial applications including Manufacturing, Power Generation,
Chemical and Petrochemical, Oil and Gas etc.
Ordering information:
P/N |
Operating Voltage(V) |
Luminous Flux(lm) |
Power (W) |
CRI |
Color Temp |
CCT(K) | Temp. Classification |
| -40℃-+55℃ | -40℃-+65℃ |
| Ex-KSL30*WM-E |
100~277 AC (141~392DC) | 3900 | 30 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL30*NH-E | 4410 | 30 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL30*NH-E | 4410 | 30 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL30*CH-E | 4410 | 30 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL45*WM-E | 5850 | 45 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL45*NH-E | 6615 | 45 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL45*NH-E | 6615 | 45 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL45*CH-E | 6615 | 45 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL60*WM-E | 7800 | 60 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL60*NH-E | 8820 | 60 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL60*NH-E | 8820 | 60 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL60*CH-E | 8820 | 60 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL80*WM-E | 10400 | 80 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL80*NH-E | 11760 | 80 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL80*NH-E | 11760 | 80 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL80*CH-E | 11760 | 80 | 70 | Cool white | 5700±300 | T5 | T4 |
Remarks:
1. *Stands for beam angle , including H4V4 / H5V5 / H6V6 .
2. For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
