LED Explosion Proof Light 80W 100W 120W for hazardous area Surge
protection 6KV
Ex-Tank Series 80W 100W 120W LED Explosion Proof Light.
Highlight: LED Explosion proof light, Explosion proof Floodlight for
hazardous locations
Features And Benefits:
1. Highly efficient and reliable LED luminaire, consume at least
50% less energy than traditional HID or HPS lighting sources,
reduce electricity costs and carbon emissions.
2. Durable powder coated die-cast aluminum housing and Shock and
vibration-resistant tempered glass.
3. External Led driver with better heat dissipation, extend the
service time.
4. Easily maintainable Led driver and LED Module.
5. Modular design:80W,100W and120W ,the max power can be combined
to 480Watts(4x120W).
6. Life span> 50,000 hours.
7. Ambient temperature from -40℃to 55℃.
8. Surge protection:6KV.
9. 5 Years performance warranty.
Product Important Information:
| Type Of Protection | Ex db ,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-28, (IEC)EN
60079-31
EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3,
EN 60598-1, EN 60598-2-5, EN 62031, EN 62493,
IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,
Zone 21 and Zone 22 Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | |
| Equipment Coding | II 2 G Ex db IIC T* Gb
II 2 D Ex tb IIIC T* Db IP66 |
| Temperature Class | Rated power (W) | -40℃ ≤ Ta ≤ +55℃ |
| Gas | Dust |
| 80W~120W | T5 | T95℃ |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively.
The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC
Type Examination and compliance with the Essential Health and
Safety Requirements |

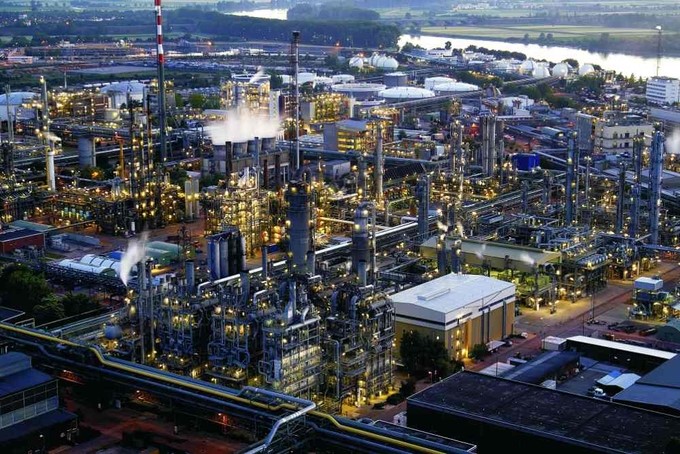

Applications:
The Ex-tank series Explosion proof Led light, is the ideal
application for ATEX and IECEx classified hazardous area zones,
where explosive gas atmosphere (flammable gases or vapors,
combustible dust, flammable liquids, ignitable fibers, etc.) is
present.
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux
(lm) | Power
(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KTK80**CH-E |
100-277 VAC
(141-392 VDC)
| 12107 |
80 | 70 | Cool white | 5700K±300K | T5 |
| Ex-KTK80**NH-E | 12107 | 70 | Natural white | 5000K±300K | T5 |
| Ex-KTK80**NH-E | 12107 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK80**WM-E | 10896 | 70 | Warm white | 3000±300k | T5 |
| Ex-KTK100**CH-E | 14954 |
100 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK100**NH-E | 14954 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK100**NH-E | 14954 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK100**WM-E | 13458 | 70 | Warm white | 3000±300k | T5 |
| Ex-KTK120**CH-E | 17310 |
120 | 70 | Cool white | 5700±300k | T5 |
| Ex-KTK120**NH-E | 17310 | 70 | Natural white | 5000±300k | T5 |
| Ex-KTK120**NH-E | 17310 | 70 | Natural white | 4000±300k | T5 |
| Ex-KTK120**WM-E | 15579 | 70 | Warm white | 3000±300k | T5 |
Remarks:
1. The first * stands for Operating Voltage including default
-100-277VAC,D-347-480VAC ,E-20-30VAC.
2. The second * stands for Candela Distribution including
H3V3,H5V5,H6V6.
