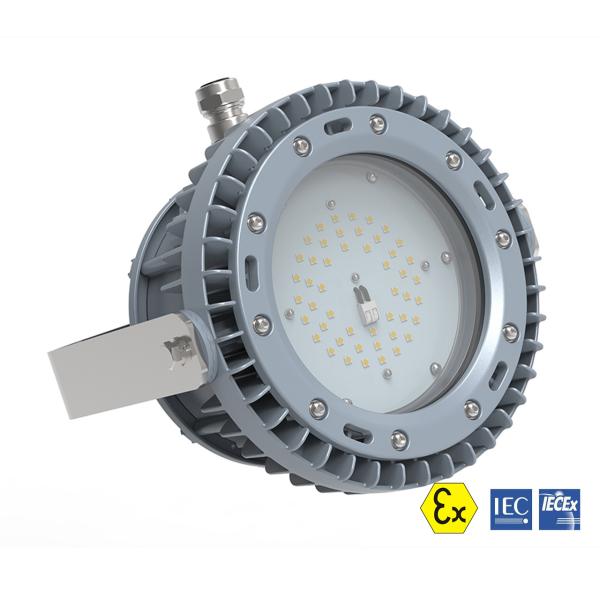

Sealion Series 30W 45W 60W 80W LED Explosion Proof Lights Power
Factor > 0.98
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours.
2. 5-year performance warranty.
3. Low THD around 10%,Less interference.
4. 5KV Surge Protection.
5. Robust aluminium housing and strong tempered glass.
6. Vibration and shock resistant.
7. Low maintenance.
Standard &Certiticate:
Ex Mark: Gas:
II 2 G Ex db IIC T* Gb
Dust:II 2 D Ex tb IIIC T* Db
Certificate:
| ATEX Certification NO.:ECM 19 ATEX-B SU43 | IECEx Certification NO.:Pending |
| CE | RoHS |
Executive Standard:
| IEC 60079-0:2007 | IEC 60079-1:2014 | IEC 60079-7:2017 |
| IEC 60079-31:2014 | EN 60079-0:2018 | EN 60079-1:2014 |
| EN 60079-7:2015+A1:2018 | EN 60079-31:2014 | |
Classification:Group II, Zone 1 & 21 and 2 & 22
Electrical & Photometric Features:
Luminaire Efficacy: 140m/W
Lifespan:>50,000 hours
Operating Voltage: 100V-277V/347-480V/141V-392V/491V-679V
Power:30W,45W,60W,80W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:8.5Kg
Size:φ 275*195mm
Ambient Temperature: -40℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2X NPT 3/4” (M20*1.5, M25*1.5 are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Grey RAL7040
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact
Product Differentiation:
| Rated Power | Operating Voltage | Temp. Classification | Emergency optional |
| 100-277VAC | 347-480VAC | -40℃-+55℃ | -40℃-+65℃ | -20℃-+55℃ |
| 30W | ● | / | T5 | T4 | T5 |
| 45W | ● | / | T5 | T4 | T5 |
| 60W | ● | ● | T5 | T4 | T5 |
| 80W | ● | ● | T5 | T4 | T5 |

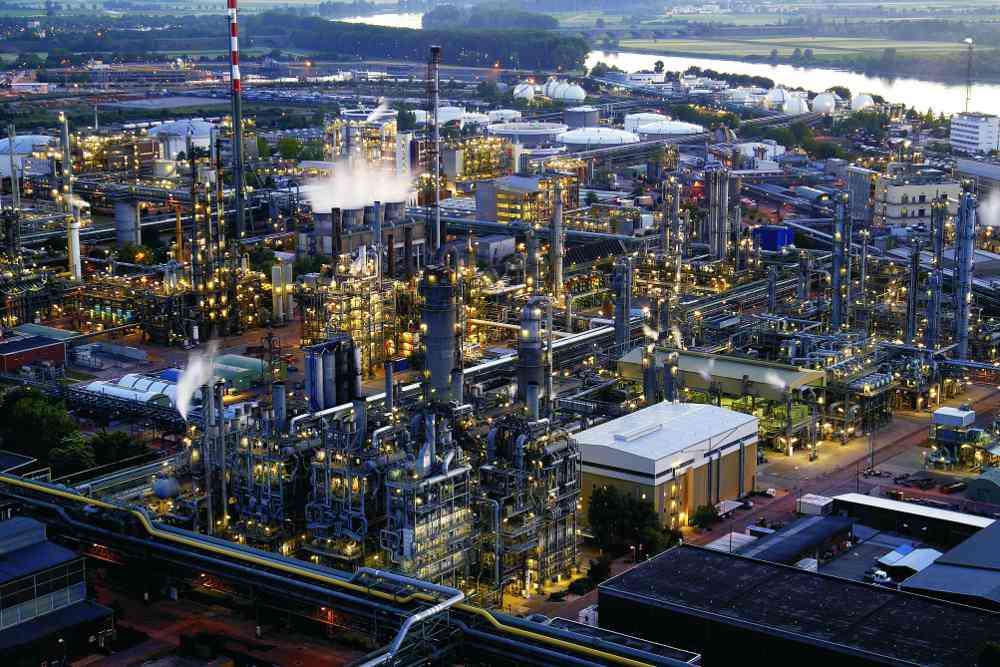

Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
Ordering Information:
P/N |
Operating Voltage(V) |
Luminous Flux(lm) |
Power (W) |
CRI |
Color Temp. |
CCT(K) | Temp. Classification |
| -40℃-+55℃ | -40℃-+65℃ |
| Ex-KSL30*WM-E |
100~277 AC (141~392 DC) | 3900 | 30 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL30*NH-E | 4410 | 30 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL30*NH-E | 4410 | 30 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL30*CH-E | 4410 | 30 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL45*WM-E | 5850 | 45 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL45*NH-E | 6615 | 45 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL45*NH-E | 6615 | 45 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL45*CH-E | 6615 | 45 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL60*WM-E | 7800 | 60 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL60*NH-E | 8820 | 60 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL60*NH-E | 8820 | 60 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL60*CH-E | 8820 | 60 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL80*WM-E | 10400 | 80 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL80*NH-E | 11760 | 80 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL80*NH-E | 11760 | 80 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL80*CH-E | 11760 | 80 | 70 | Cool white | 5700±300 | T5 | T4 |
Remarks:
1. *Stands for beam angle , including H4V4 / H5V5 / H6V6.
2. For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
Candela Distribution:
Installation Method:
