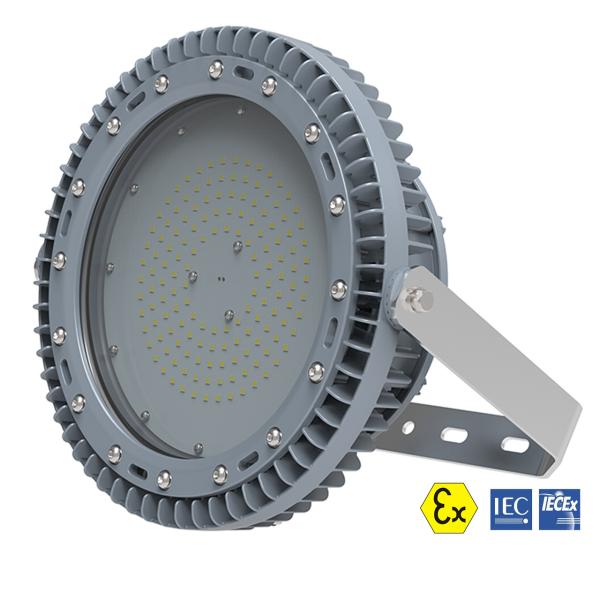

ATEX & IECEx Certified LED Floodlight LED Explosion Proof Lights
200W,240W,300W Sealion Series
ATEX & IECEx Certified LED Floodlight, 200W,240W,300W LED Explosion
Proof Lights, Sealion Series LED light, IP66.
Highlight:LED Explosion Proof Lights, LED Explosion Proof lighting fixture.
Features And Benefits:
1. Corrosion resistant epoxy coated die casting aluminum alloy body
and high impact resistance tempered glass diffuser.
2. High efficiency LED source,designed to provide reliable
operation in even harshest environment.
3. Shock and vibration-resistant tempered glass , reduces the risk
of premature failure.
4. IP66,Can be used in wet locations,robust construction suitable
for corrosive applications.
5. Good heat dissipation.
6. Low maintenance & low THD.
7. Life span> 50,000 hours.
Product Important Information:
| Type Of Protection | Ex d,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN
60079-18, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22
Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | TÜV 20 ATEX 8608 X IECEx TUR 20.0068X |
| Equipment Coding | II 2 G Ex db IIC T4/T5 Gb II 2 D Ex tb IIIC T115°C/105°C/T95°C Db IP66 |
| Temperature Class | Rated power (W) | -20℃ ≤ Ta ≤ +55℃ with Battery | -40℃ ≤ Ta ≤ +55℃ | -40℃ ≤ Ta ≤ +65℃ |
| Gas | Dust | Gas | Dust | Gas | Dust |
| 200W | T5 | T95˚C | T5 | T95˚C | / | / |
| 240W | T5 | T95˚C | T5 | T95˚C | / | / |
| 300W | / | / | T4 | T115˚C | / | / |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and
Safety Requirements |
Applications:
LED Explosion Proof Lights used for Harsh & Hazardous area such as
Oil&Gas, oil refinery, Power station, pharmaceutical etc.
Ordering information:
P/N |
Operating Voltage(V) |
Luminous Flux(lm) |
Power(W) |
CRI |
Color Temp. |
CCT(K) | Temp. Classification |
| -40℃-+55℃ | -40℃-+65℃ |
| Ex-KSL200*WM-E |
100~277 AC(141~392 DC) | 26000 | 200 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL200*NH-E | 29400 | 200 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL200*NH-E | 29400 | 200 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL200*CH-E | 29400 | 200 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL240*WM-E | 31200 | 240 | 70 | Warm white | 3000±300 | T5 | T4 |
| Ex-KSL240*NH-E | 35280 | 240 | 70 | Natural white | 4000±300 | T5 | T4 |
| Ex-KSL240*NH-E | 35280 | 240 | 70 | Natural white | 5000±300 | T5 | T4 |
| Ex-KSL240*CH-E | 35280 | 240 | 70 | Cool white | 5700±300 | T5 | T4 |
| Ex-KSL300*WM-E | 39000 | 300 | 70 | Warm white | 3000±300 | T4 | / |
| Ex-KSL300*NH-E | 44100 | 300 | 70 | Natural white | 4000±300 | T4 | / |
| Ex-KSL300*NH-E | 44100 | 300 | 70 | Natural white | 5000±300 | T4 | / |
| Ex-KSL300*CH-E | 44100 | 300 | 70 | Cool white | 5700±300 | T4 | / |
Remarks:
1. *Stands for beam angle , including H4V4 / H5V5 / H6V6.
2. For beam angle H4V4 and H5V5,the luminous flux will be 15% less.
