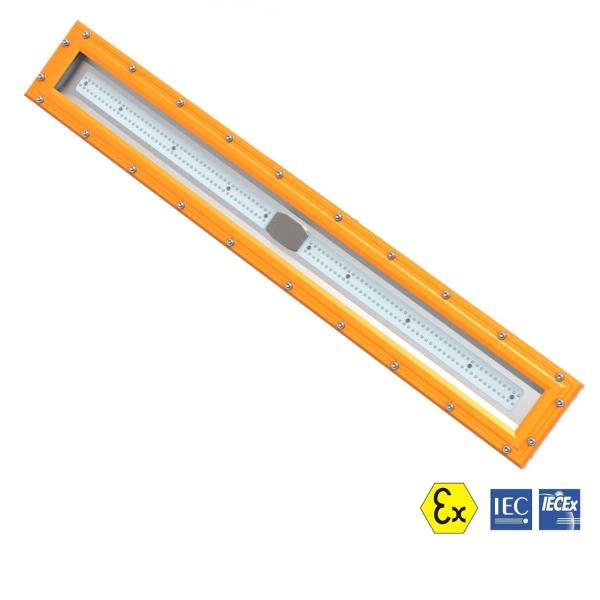

Swordfish Series 36W 48W 56W 72W LED Explosion Proof Lights Power
Factor > 0.98
Features And Benefits:
1. High efficacy LED Source with long lifespan>50,000 hours
2. 5-year performance warranty
3. Low THD around 10%,Less interference
4. 5KV Surge Protection
5. Robust aluminium housing and strong tempered glass
6. Vibration and shock resistant
7. Low maintenance
Specifications:
Standard &Certificate:
Ex Mark: Gas:
II 2 G Ex d eb op is IIB T6 Gb
Dust: II 2 D Ex tb op is IIIC T80°C Db
Certificate:
| ATEX Certification NO.:TÜV 15 ATEX 7673 X | IECEx Certification NO.: IECEx TUR 16.0028X |
CE | RoHS |
Executive Standard:
| (IEC)EN 60079-0 | (IEC)EN 60079-1 | (IEC)EN 60079-7 |
| (IEC)EN 60079-28 | (IEC)EN 60079-31E | EN 55015 |
| EN 61547 | EN 61000-3-2 | EN 61000-3-3 |
| EN 60598-1 | EN 60598-2-5 | EN 62031 |
| EN 62493 | IEC 62321-4 | IEC 62321-5 |
| IEC 62321-6 | IEC 62321-7-1 | IEC 62321-7-2 |
| IEC 62321-8 | | |
Luminaire Efficacy: 136.5m/W
Lifespan:>50,000 hours
Operating Voltage: 100-277 VAC/24-48 VAC/10-30 VDC/24-48 VDC/141-392 VDC
Power:36W,48W,56W,72W
Frequency:50/60Hz
Power Factor: ＞0.98
THD:＜10%
Insulation Class: Ⅰ
Surge Protection: 5KV
LED Driver: Over voltage protection/short circuit protection
Weight:9.2Kg
Size:900*136*124mm
Ambient Temperature: -20℃-+55℃
Connecting Terminals: 3*1.0-4mm²(L+N+PE)
Cable Entries: 2XNPT 3/4” (M20*1.5 ,M25*1.5are optional)
Earthing Protection: M4 (Internal & external earth bolts)
IP Code: IP66
Enclosure Material: Die-casting aluminium alloy
Enclosure Colour: Orange,RAL2011(optional grey RAL7040)
Coating: Epoxy powder coating
Exposed Fastener: Stainless steel
Protective Cover: Tempered glass,Stand 7J impact

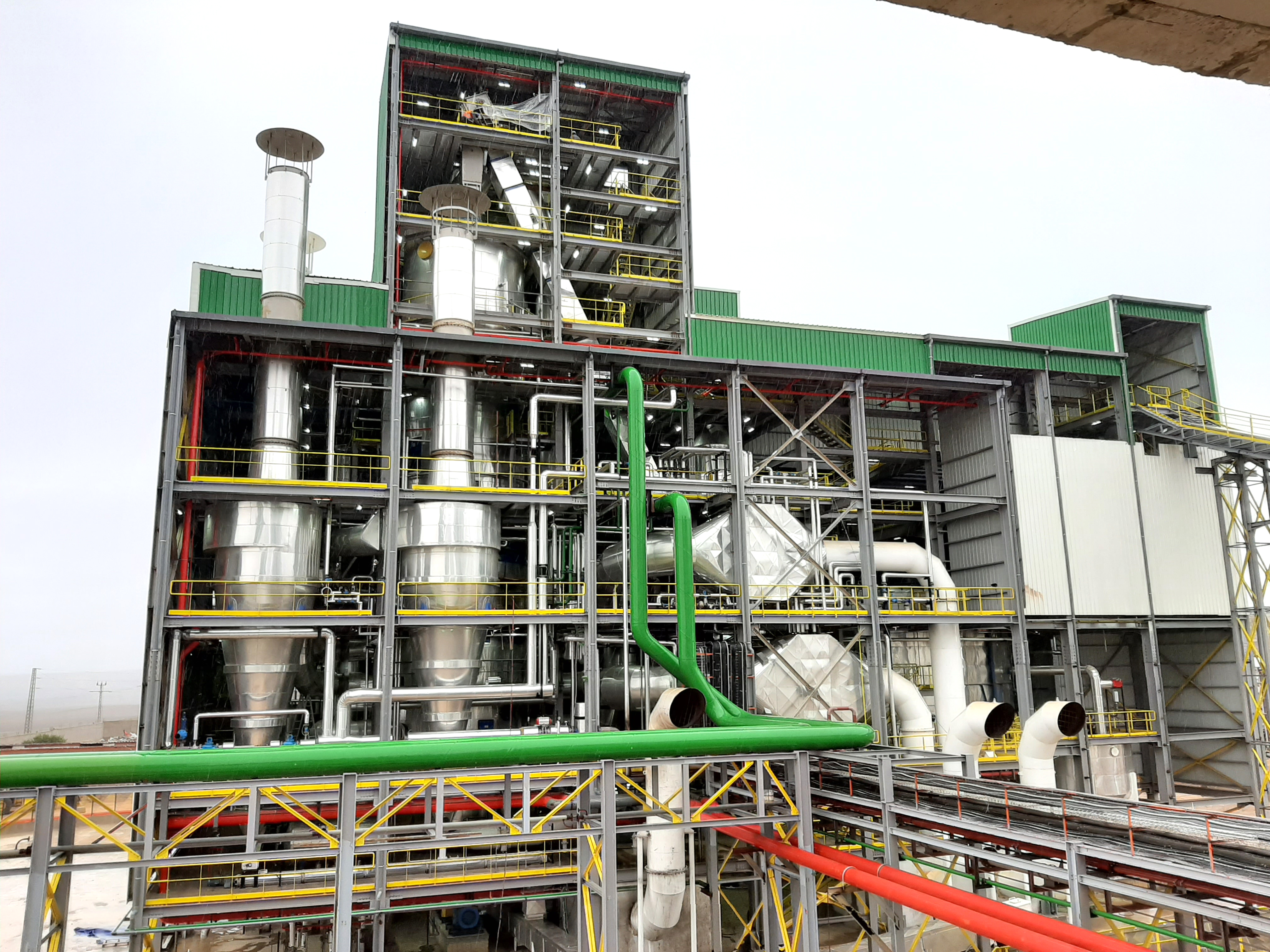

Applications:
1. Oil&Gas Exploration
2. Drilling
3. Oil Refinery
4. Petrochemical Plant
5. Power Plant
6. Pharmaceutical Plant
Ordering Information:
P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KSF36*1200H7V7WM-U-E |
100-277 AC (141-392 DC) | 4536 | 36 | 82 | Warm white | 3000±300 |
T6 |
| Ex-KSF36*1200H7V7NH-U-E | 4914 | 36 | 70 | Natural white | 4000±300 |
| Ex-KSF36*1200H7V7NH-U-E | 4914 | 36 | 70 | Natural white | 5000±300 |
| Ex-KSF36*1200H7V7CH-U-E | 4914 | 36 | 70 | Cool white | 5700±300 |
| Ex-KSF48*1200H7V7WM-U-E | 6048 | 48 | 82 | Warm white | 3000±300 |
| Ex-KSF48*1200H7V7NH-U-E | 6552 | 48 | 70 | Natural white | 4000±300 |
| Ex-KSF48*1200H7V7NH-U-E | 6552 | 48 | 70 | Natural white | 5000±300 |
| Ex-KSF48*1200H7V7CH-U-E | 6552 | 48 | 70 | Cool white | 5700±300 |
| Ex-KSF56*1200H7V7WM-U-E | 7056 | 56 | 82 | Warm white | 3000±300 |
| Ex-KSF56*1200H7V7NH-U-E | 7644 | 56 | 70 | Natural white | 4000±300 |
| Ex-KSF56*1200H7V7NH-U-E | 7644 | 56 | 70 | Natural white | 5000±300 |
| Ex-KSF56*1200H7V7CH-U-E | 7644 | 56 | 70 | Cool white | 5700±300 |
| Ex-KSF72*1200H7V7WM-U-E | 9072 | 72 | 82 | Warm white | 3000±300 |
| Ex-KSF72*1200H7V7NH-U-E | 9828 | 72 | 70 | Natural white | 4000±300 |
| Ex-KSF72*1200H7V7NH-U-E | 9828 | 72 | 70 | Natural white | 5000±300 |
| Ex-KSF72*1200H7V7CH-U-E | 9828 | 72 | 70 | Cool white | 5700±300 |
Remarks:
1. *Stands for Operating Voltage, including Default
-AC-100~277V,A-AC/DC 24~48V,B-DC 10~30V.
Candela Distribution:
Installation Method:
