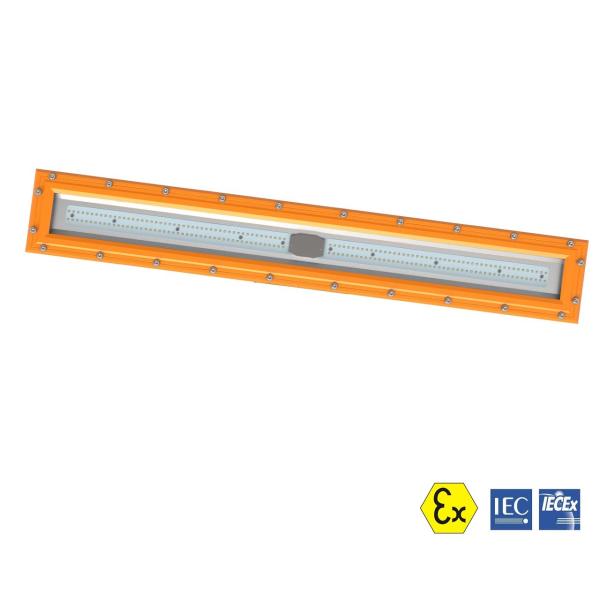

LED Energy saving Explosion Proof light fitting 36W 48W 56W 72w
Swordfish series upgrade version
Explosion proof led light fitting 36W 48W 56W 72W
Highlight: Explosion proof LED linear light fitting.
Features And Benefits:
1. Hazardous area linear lighting, designed to replace the
conventional explosion proof fluorescent tube fixture 2X36W,2X58W.
2. Separated Led source compartment and Led driver compartment,
better heat dissipation management to extend the lifespan.
3. Certified Ex e terminal blocks.
4. Copper-free aluminum alloy housing.
5. High efficacy Osram Led source, the whole luminaire efficacy up
to 135lm/w.
6. Emergency version is optional, with Ni-cd battery, duration
time: 180mins.
7. This High-quality linear luminaires are easy to install in a
wide variety of ways.
Product Important Information:
| Type Of Protection | Ex d eb ,Ex tb |
| Protection Standards | (IEC)EN 60079-0, (IEC)EN 60079-1, (IEC)EN 60079-7, (IEC)EN
60079-28, (IEC)EN 60079-31 EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC
62321-7-2, IEC 62321-8 |
| Area Classfiction | Zone 1 and Zone 2 Areas to (IEC)EN 60079-10-1,Zone 21 and Zone 22
Areas to (IEC)EN 60079-10-2 |
| Installation | (IEC)EN 60079-14 |
| Certificate | IECEx_TUR_16.0028X/TÜV 15 ATEX 7673 X |
| Equipment Coding | □Ex d eb op is IIB T6 Gb ,Ex tb op is IIIC T80℃ Db □Ex d eb op is IIC T6 Gb , Ex tb op is IIIC T80℃ Db |
| Temperature Class | Rated power (W) | -20℃ ≤ Ta ≤ +55℃ |
| Gas | Dust |
| 36W~72W | T6 | T80℃ |
| ATEx Coding |  II 2 G / II 2 D |
| Ingress Protection | IP66 (IEC)EN 60529 |
| Cable entry | M20*1.5,M25*1.5,3/4 NPT |
| CE Mark | The CE marking of this product applies to EU directives 2014/35/EU,
2014/30/EU, 2012/19/EU , 2011/65/EU and 2014/34/EU respectively. The Equipment is declared to meet the provisions of the ATEX
directive(2014/34/EU)by reason of the EC Type Examination and compliance with the Essential Health and
Safety Requirements |
Applications:
The Ex-Swordfish series explosion proof led linear light fittings
are suitable for all kinds of hazardous environments:Onshore
platforms,Refinery towers,Distilleries,Power station,Offshore
platforms,Oil and gas terminals,Jetty ports,Pumping stations.
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power (W) | CRI | Color Temp. | CCT(K) | Temp. Classification |
| Ex-KSF36*1200H7V7WM-U-E |
100-277 AC(141-392 DC) | 4536 | 36 | 82 | Warm white | 3000±300 |
T6 |
| Ex-KSF36*1200H7V7NH-U-E | 4914 | 36 | 70 | Natural white | 4000±300 |
| Ex-KSF36*1200H7V7NH-U-E | 4914 | 36 | 70 | Natural white | 5000±300 |
| Ex-KSF36*1200H7V7CH-U-E | 4914 | 36 | 70 | Cool white | 5700±300 |
| Ex-KSF48*1200H7V7WM-U-E | 6048 | 48 | 82 | Warm white | 3000±300 |
| Ex-KSF48*1200H7V7NH-U-E | 6552 | 48 | 70 | Natural white | 4000±300 |
| Ex-KSF48*1200H7V7NH-U-E | 6552 | 48 | 70 | Natural white | 5000±300 |
| Ex-KSF48*1200H7V7CH-U-E | 6552 | 48 | 70 | Cool white | 5700±300 |
| Ex-KSF56*1200H7V7WM-U-E | 7056 | 56 | 82 | Warm white | 3000±300 |
| Ex-KSF56*1200H7V7NH-U-E | 7644 | 56 | 70 | Natural white | 4000±300 |
| Ex-KSF56*1200H7V7NH-U-E | 7644 | 56 | 70 | Natural white | 5000±300 |
| Ex-KSF56*1200H7V7CH-U-E | 7644 | 56 | 70 | Cool white | 5700±300 |
| Ex-KSF72*1200H7V7WM-U-E | 9072 | 72 | 82 | Warm white | 3000±300 |
| Ex-KSF72*1200H7V7NH-U-E | 9828 | 72 | 70 | Natural white | 4000±300 |
| Ex-KSF72*1200H7V7NH-U-E | 9828 | 72 | 70 | Natural white | 5000±300 |
| Ex-KSF72*1200H7V7CH-U-E | 9828 | 72 | 70 | Cool white | 5700±300 |
